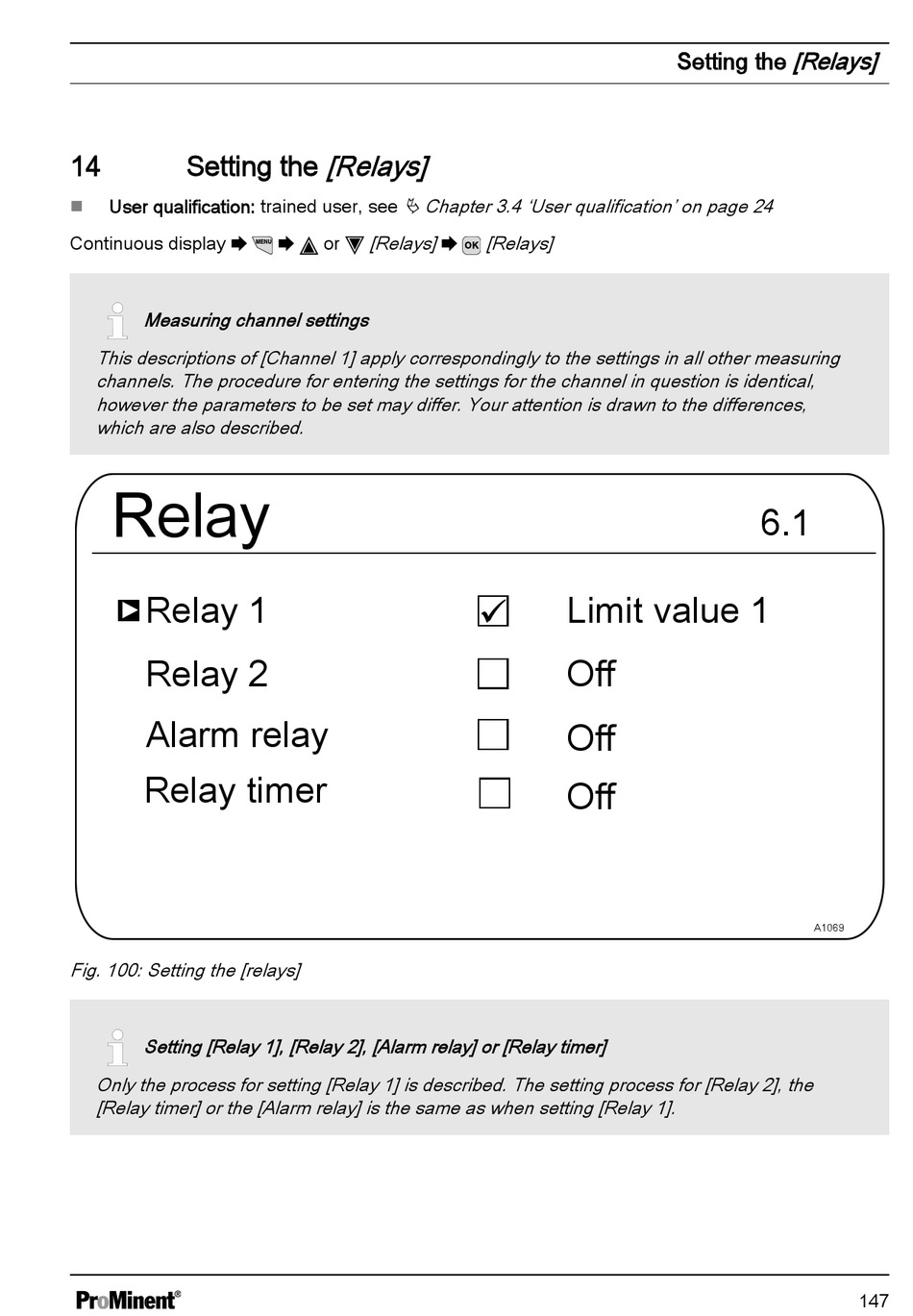

Setting The [Relays]; Setting Relay 1 - ProMinent DULCOMETER diaLog DACb Assembly And Operating Instruction

14 Setting the
User qualification: trained user, see
n
Continuous display ➨
Measuring channel settings
This descriptions of [Channel 1] apply correspondingly to the settings in all other measuring
channels. The procedure for entering the settings for the channel in question is identical,
however the parameters to be set may differ. Your attention is drawn to the differences,
which are also described.
Relay
Relay 1
Relay 2
Alarm relay
Relay timer
Fig. 100: Setting the [relays]
Setting [Relay 1], [Relay 2], [Alarm relay] or [Relay timer]
Only the process for setting [Relay 1] is described. The setting process for [Relay 2], the
[Relay timer] or the [Alarm relay] is the same as when setting [Relay 1].
[Relays]
Ä Chapter 3.4 'User qualification' on page 24
[Relays] ➨
➨ or
[Relays]
Limit value 1
Off
Off
Off
[Relays]
Setting the
6.1
A1069
147
