Assembly and installation
Normsignal-Ausgang3 0/4-20 mA
Digitaler Kontakteingang
Digitaler Kontakteingang
Digitaler Kontakteingang
Temperatur
Potenzialausgleich
Temperatur
Normsignal-Eingang
Stromquelle
2-Leiter-Normsignal-Eingang
Sensor
Externe Pumpe 3, heben (potenzialfrei)
Externe Pumpe 4, senken (potenzialfrei)
A1174

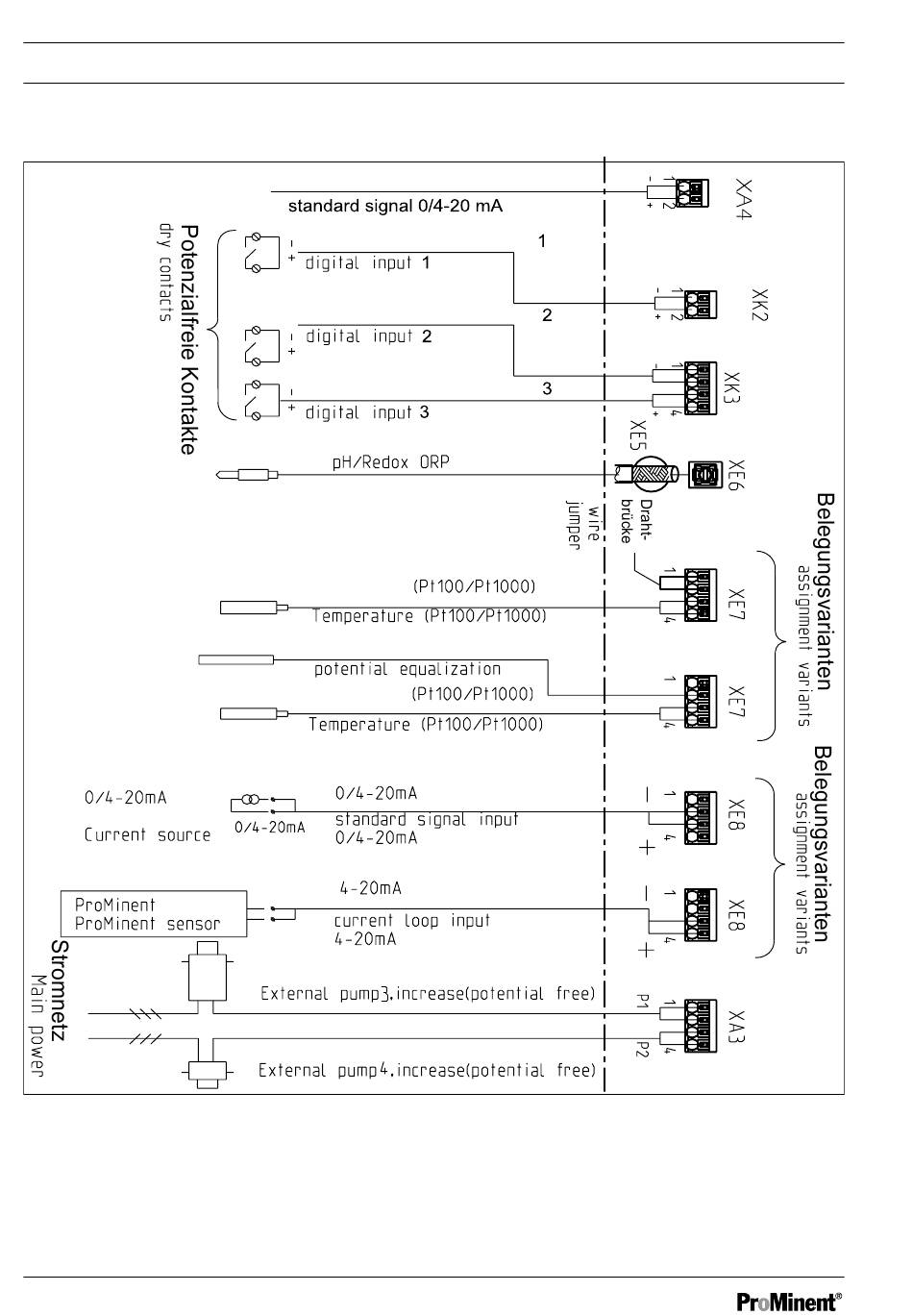

Fig. 17: Terminal diagram for the extension unit (Channel 3) with assignment options (Module C,
optional)
46
