20
Spare Parts and Accessories
20.1
Spare parts
4

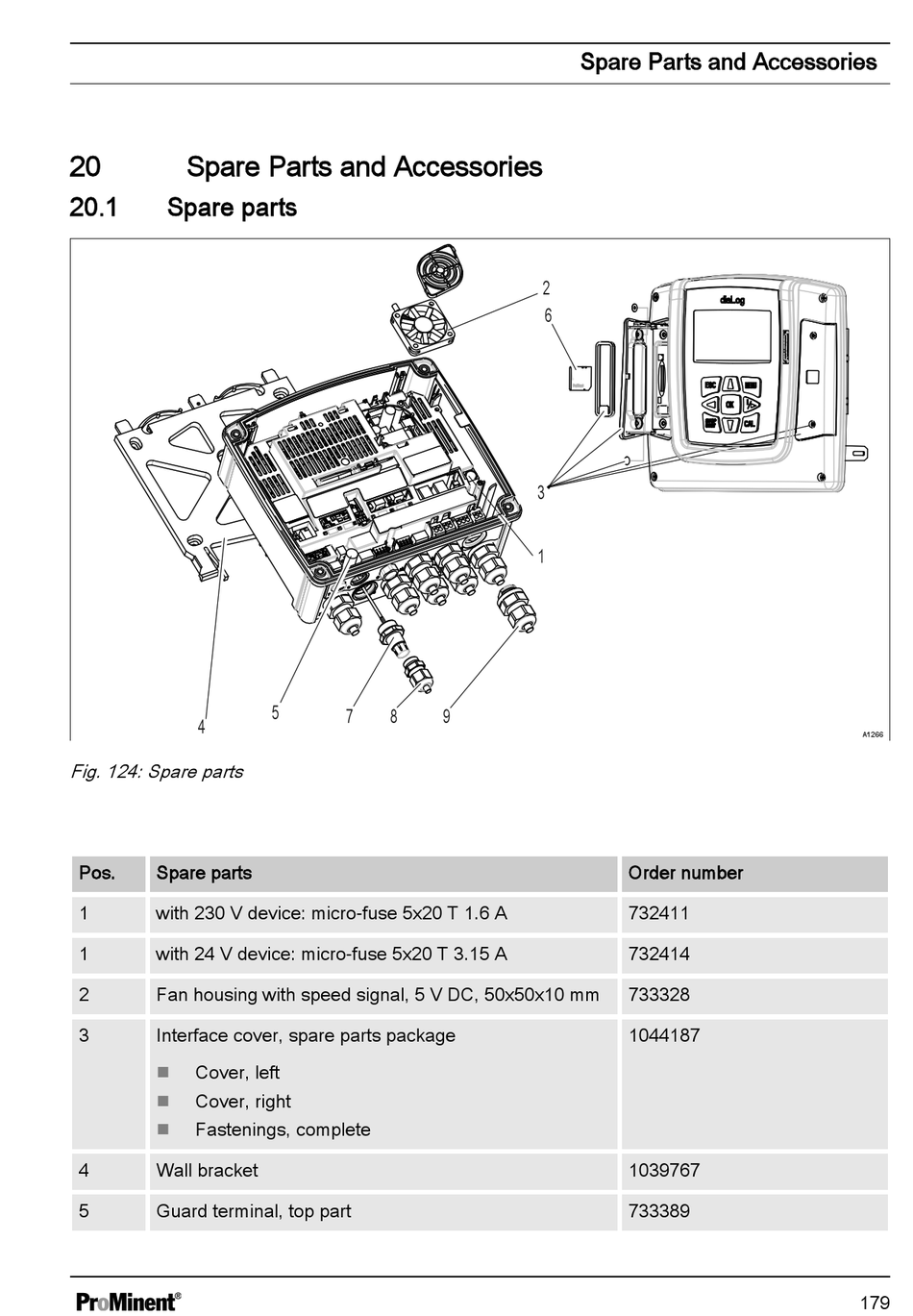

Fig. 124: Spare parts
Pos.
Spare parts
1
with 230 V device: micro-fuse 5x20 T 1.6 A
1
with 24 V device: micro-fuse 5x20 T 3.15 A
2
Fan housing with speed signal, 5 V DC, 50x50x10 mm
3
Interface cover, spare parts package
Cover, left
n
Cover, right
n
Fastenings, complete
n
4
Wall bracket
5
Guard terminal, top part
5
7
8
9
Spare Parts and Accessories
2
6
3
1
Order number
732411
732414
733328
1044187
1039767
733389
A1266
179
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the DULCOMETER diaLog DACb and is the answer not in the manual?
Questions and answers
How do I calibrate measuring channel
To calibrate a measuring channel on a ProMinent diaLog DACb:
1. Select the channel to be calibrated (e.g., Channel 1: Chlorine).
2. Access the [Calibration] menu from the continuous display.
3. Follow the on-screen instructions to perform the calibration.
4. Adjust the value using the appropriate buttons if prompted.
5. Import the calibration result into the controller memory by pressing the confirmation button.
6. The controller will return to the continuous display and use the new calibration values.
If calibration values are outside specified limits, an error message appears, and the calibration is not saved. In that case, check conditions, correct any issues, and repeat the calibration. Each measuring channel must be calibrated separately.
