[digital inputs]
Setting
15 Setting
User qualification: trained user, see
n
Continuous display ➨
Measuring channel settings
This descriptions of [Channel 1] apply correspondingly to the settings in all other measuring
channels. The procedure for entering the settings for the channel in question is identical,
however the parameters to be set may differ. Your attention is drawn to the differences,
which are also described.
Digital Inputs
Digital input 1
Digital input 2
Digital input 3
Digital input 4
Digital input 5

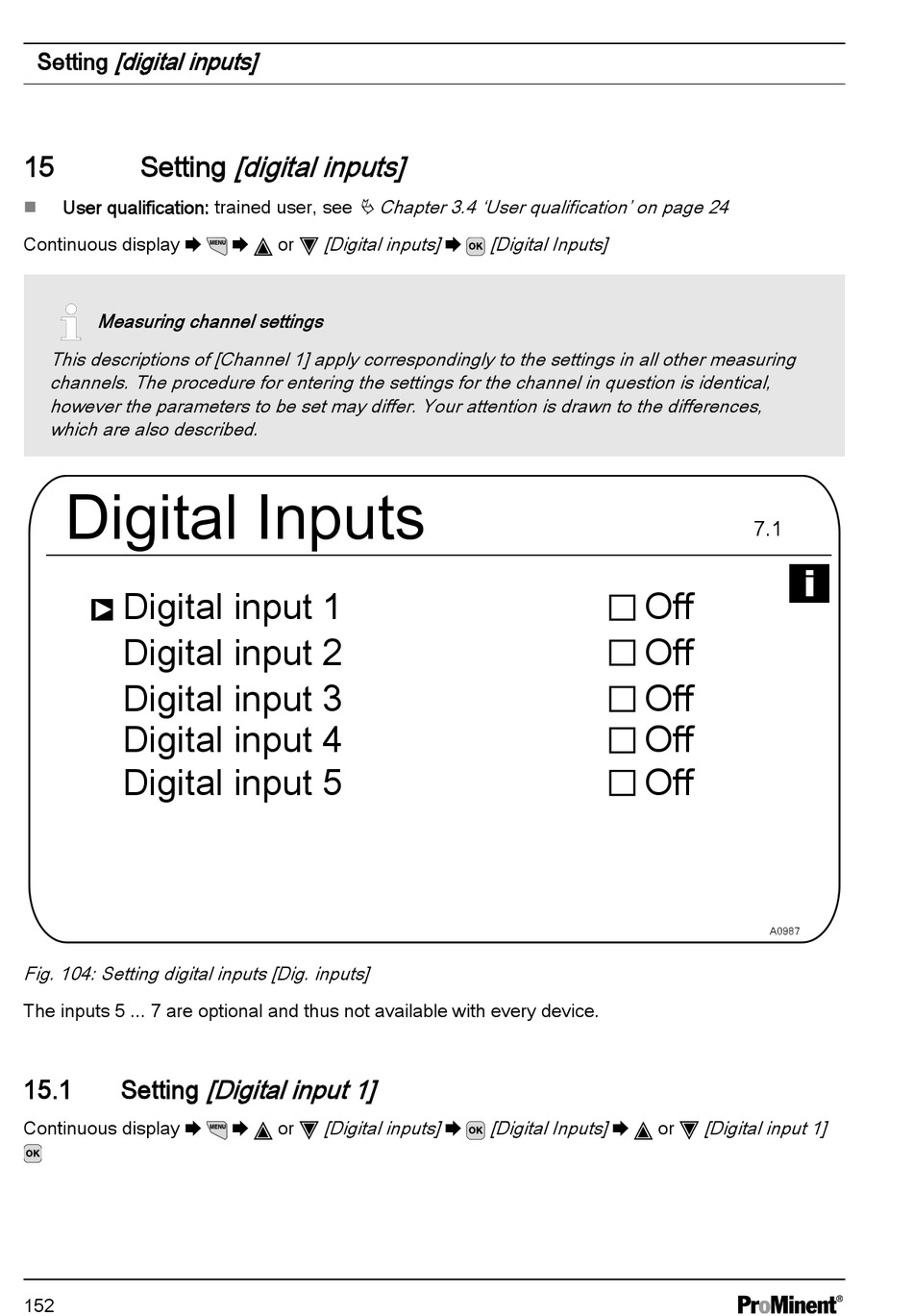

Fig. 104: Setting digital inputs [Dig. inputs]
The inputs 5 ... 7 are optional and thus not available with every device.
15.1 Setting
Continuous display ➨
152
[digital inputs]
Ä Chapter 3.4 'User qualification' on page 24
[Digital inputs] ➨
➨ or
[Digital input 1]
[Digital inputs] ➨
➨ or
[Digital Inputs]
Off
Off
Off
Off
Off
[Digital Inputs] ➨
or
7.1
[Digital input 1]
