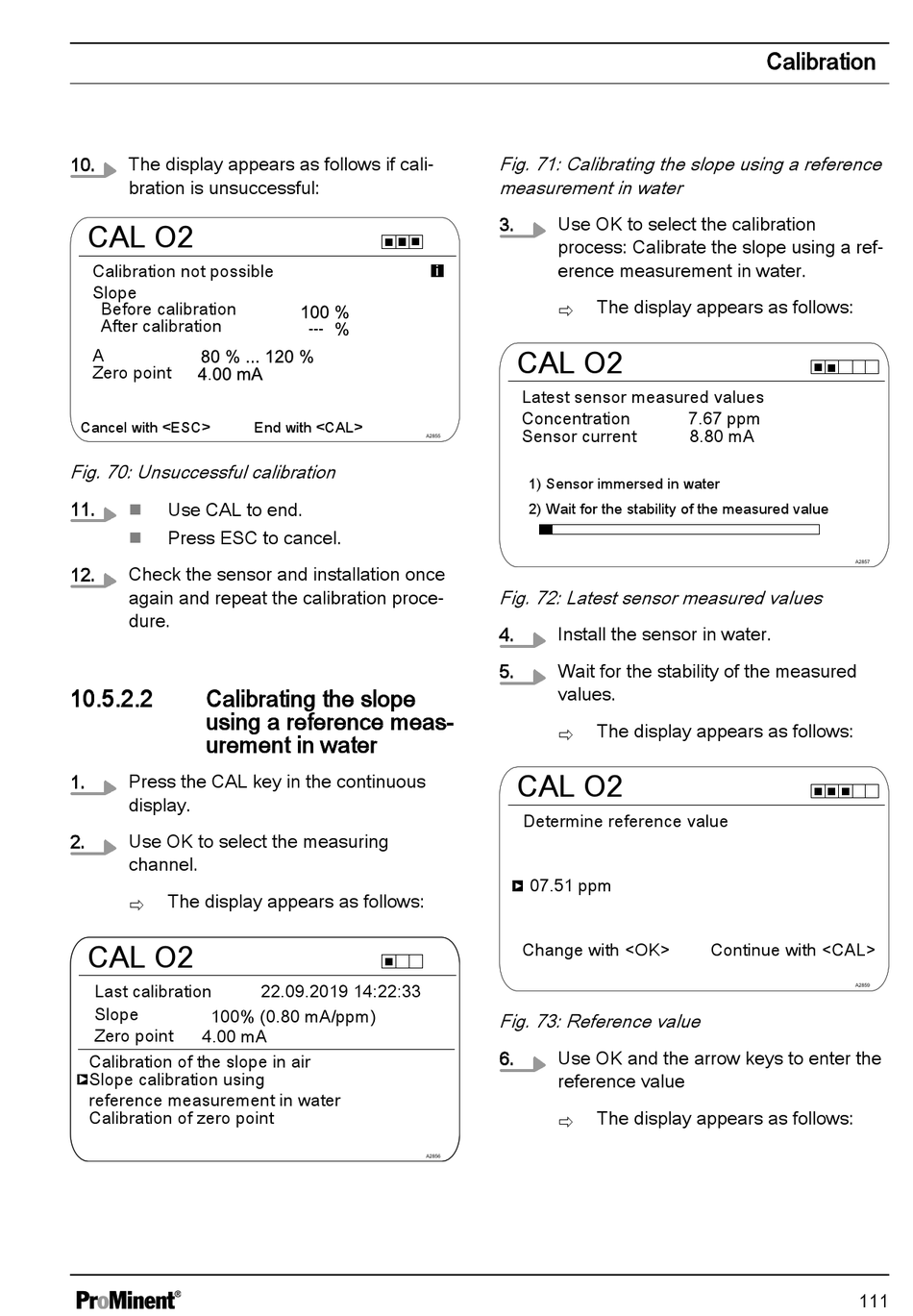

The display appears as follows if cali‐
bration is unsuccessful:
CAL O2
Calibration not possible
Slope
Before calibration
After calibration
A
Zero point
Cancel with <ESC>
Fig. 70: Unsuccessful calibration
11.
Use CAL to end.
n
Press ESC to cancel.
n
12.
Check the sensor and installation once
again and repeat the calibration proce‐
dure.
10.5.2.2
Calibrating the slope
using a reference meas‐
urement in water
1.
Press the CAL key in the continuous
display.
2.
Use OK to select the measuring
channel.
The display appears as follows:
ð
CAL O2
Last calibration
Slope
100% (0.80 mA/ppm)
Zero point
4.00 mA
Calibration of the slope in air
Slope calibration using
reference measurement in water
Calibration of zero point
---
End with <CAL>
A2855
22.09.2019 14:22:33
A2856
Fig. 71: Calibrating the slope using a reference
measurement in water
3.
Use OK to select the calibration
process: Calibrate the slope using a ref‐
erence measurement in water.
i
The display appears as follows:
ð
CAL O2
Latest sensor measured values
Concentration
Sensor current
1) Sensor immersed in water
2) Wait for the stability of the measured value
Fig. 72: Latest sensor measured values
4.
Install the sensor in water.
5.
Wait for the stability of the measured
values.
The display appears as follows:
ð
CAL O2
Determine reference value
07.51 ppm
Change with <OK>
Fig. 73: Reference value
6.
Use OK and the arrow keys to enter the
reference value
The display appears as follows:
ð
Calibration
7.67 ppm
8.80 mA
A2857
Continue with <CAL>
A2859
111
