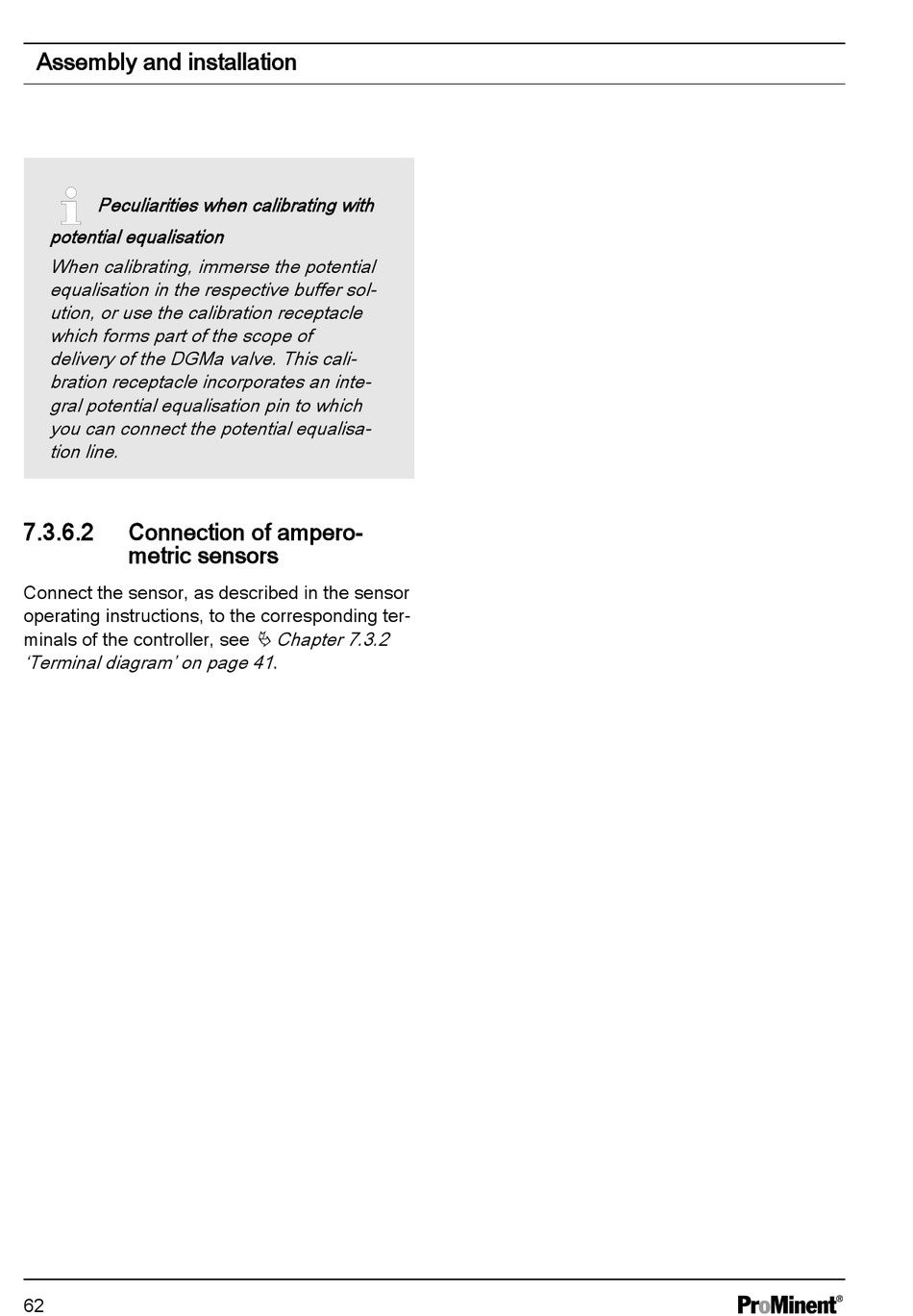

ProMinent DULCOMETER diaLog DACb Assembly And Operating Instruction page 62

Assembly and installation
Peculiarities when calibrating with
potential equalisation
When calibrating, immerse the potential
equalisation in the respective buffer sol‐
ution, or use the calibration receptacle
which forms part of the scope of
delivery of the DGMa valve. This cali‐
bration receptacle incorporates an inte‐
gral potential equalisation pin to which
you can connect the potential equalisa‐
tion line.
7.3.6.2 Connection of ampero‐
metric sensors
Connect the sensor, as described in the sensor
operating instructions, to the corresponding ter‐
minals of the controller, see
'Terminal diagram' on page 41 .
62
Ä Chapter 7.3.2
