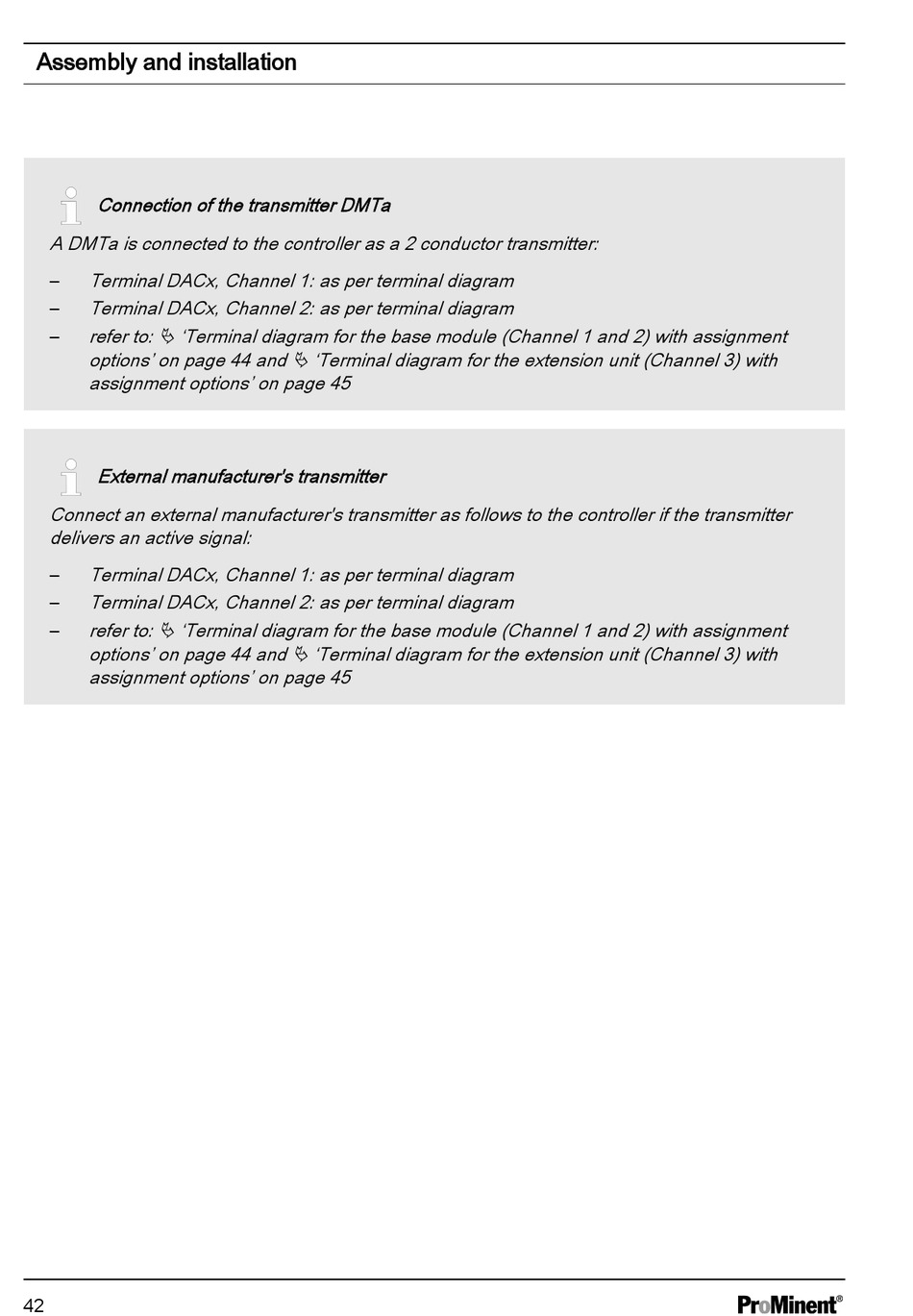

Assembly and installation
Connection of the transmitter DMTa
A DMTa is connected to the controller as a 2 conductor transmitter:
Terminal DACx, Channel 1: as per terminal diagram
–
Terminal DACx, Channel 2: as per terminal diagram
–
refer to: Ä 'Terminal diagram for the base module (Channel 1 and 2) with assignment
–
options' on page 44 and Ä 'Terminal diagram for the extension unit (Channel 3) with
assignment options' on page 45
External manufacturer's transmitter
Connect an external manufacturer's transmitter as follows to the controller if the transmitter
delivers an active signal:
Terminal DACx, Channel 1: as per terminal diagram
–
Terminal DACx, Channel 2: as per terminal diagram
–
refer to: Ä 'Terminal diagram for the base module (Channel 1 and 2) with assignment
–
options' on page 44 and Ä 'Terminal diagram for the extension unit (Channel 3) with
assignment options' on page 45
