9. FSI 20-0mA
This is an inverse to option-5. When this option is selected, the set torque M107 corresponds to
analog input FSI. The Maximum 200% torque will be available at 0 mA and minimum 0% at 20 mA.
10. Static potentiometer
When this option is selected, the set torque M107 will be decided by programmable sequence inputs.
Assign one each programmable sequence input to Freq Increase and Freq Decrease respectively.
When Freq Increase is applied, the set torque will increase and when Freq Decrease is applied, the
set torque will decrease. If both the signals are applied simultaneously, it will have no effect.
11. Serial
In this option, the set torque M107 can be assigned from serial link.
The monitor option M107 will display the corresponding set torque value, even if the AC DRIVE is
stop
12. PID Output
In this option, the PID output will be the set point. When selecting this input, enable the PID Control.
The monitor option M107 will display the corresponding set frequency value, even if the AC DRIVE is
stop.
6

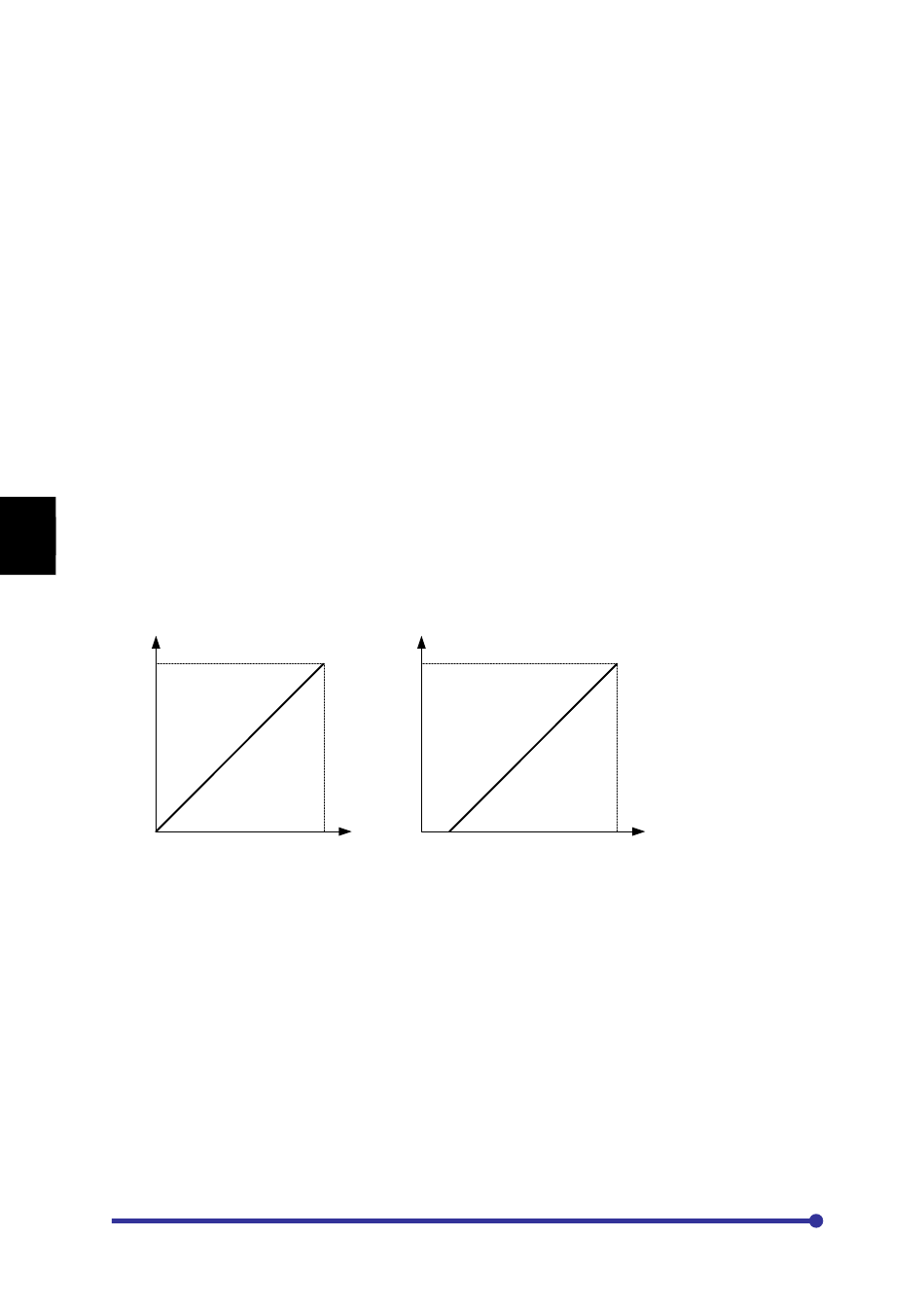

13. VIN 0-10V
When this option is selected, the set torque M107 corresponds to analog input VIN. The output torque
will be zero at 0V and maximum at 10V.
F F
A103 A103
V I
0 10V 0 4mA 20mA
VIN 0-10V IIN 4-20mA
14. IIN 4-20mA
When this option is selected, the set torque M107 corresponds to analog input IIN. The output torque
will be zero at 4mA and maximum at 20mA.
15. PLC A-O/P 1
When this option is selected, the set torque M107 corresponds to PLC A-O/P 1. This Parameter
option value can be set directly from In-built PLC function. The output torque will be zero at 0d and
maximum at 1000d.
16. PLC A-O/P 2
When this option is selected, the set torque M107 corresponds to PLC A-O/P 2. This Parameter
option value can be set directly from In-built PLC function. The output torque will be zero at 0d and
maximum at 1000d.
17. PLC A-O/P 3
