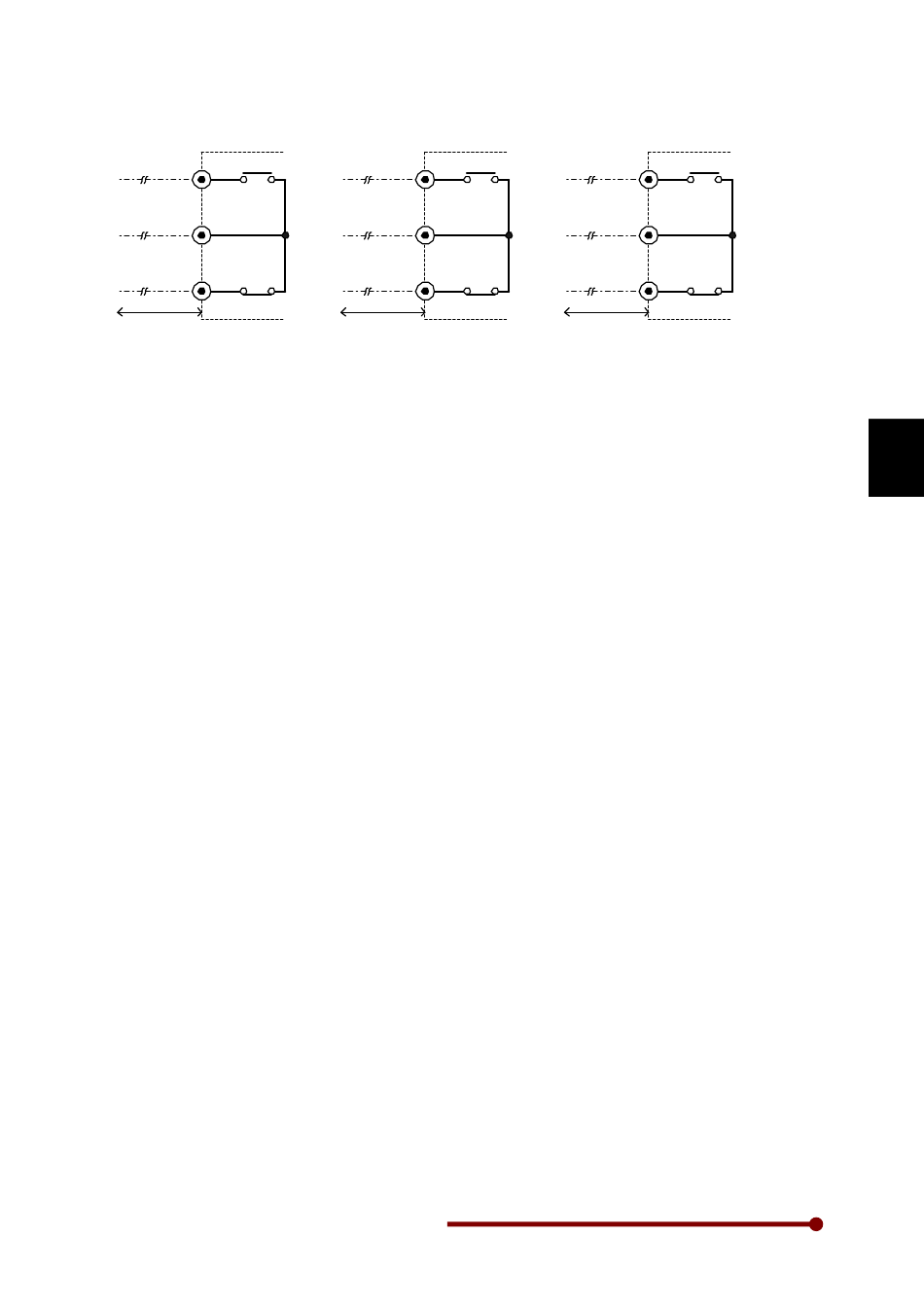

5-6 Programmable sequence output (Relay) wiring

FA
FC
FB
L<50m (164')
PROGRAMMABLE FAULT
RELAY
Precautions
1. Use within the rated range shown below.
Rated capacity (resistance load): 250VAC, 1A or 30VDC, 1A
Maximum Voltage: 250VAC
Max. Current: 1A
Switching capacity: 100VA / 100W
2. The wire must be shorter than 50meters (164').
Axpert-Eazy AC Variable Frequency Drive
R1A
R1C
R1B
L<50m (164')
PROGRAMMABLE RELAY1
R2A
R2C
R2B
L<50m (164')
PROGRAMMABLE RELAY2
