C217: IIN Gain
This is gain setting for the IIN analog input.
C218: IIN Bias
This is bias setting for the IIN analog input.
C219: FSV / FSI Time Constant (mS)
This parameter sets the filter time constant for the FSV and FSI analog inputs.
C220: VIN / IIN Time Constant (mS)
This parameter sets the filter time constant for the VIN and IIN analog inputs.
C221: Vout-1 bias
This parameter is bias setting for the analog output voltage vo1.
C222: Vout-2 Bias
This parameter is bias setting for the analog output voltage vo2.
6
C223: Input Voltage Gain
This parameter sets the gain setting for VRY (M201) and VYB (M202) monitor.
GROUP – 3: STATUS OUTPUT DETECTION LEVEL

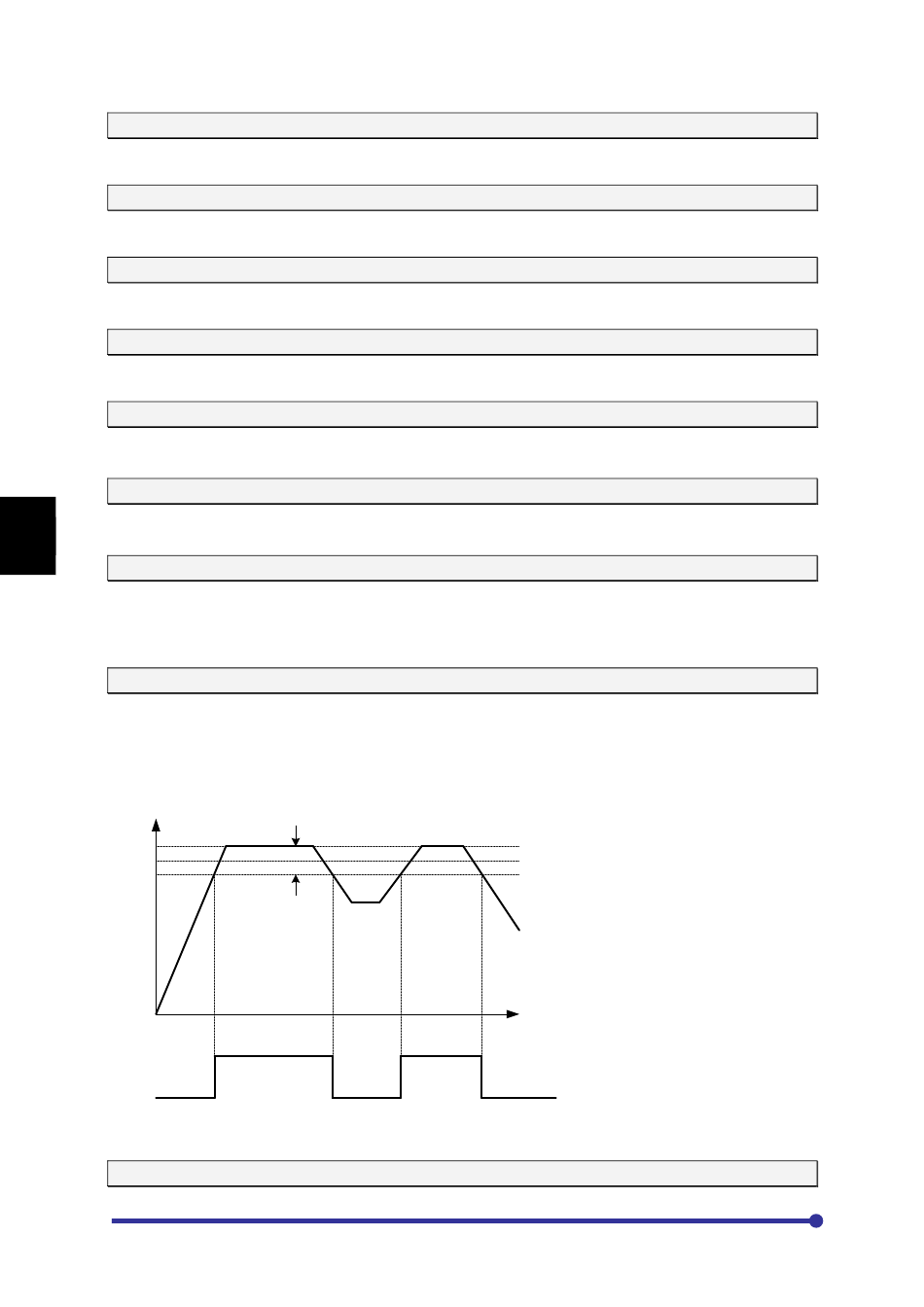

C301: Frequency Attainment detection Width (%)
The frequency output attained operation width is set using this parameter as % of maximum
frequency A103. If Freq Attain option is selected for the PSO and relay outputs in parameter C106 ~
C111, the output is enabled when the output frequency attains the set frequency. The width of the
attainment detection is decided by the programmed value in C301 as explained in below figure. The
output remains high even if drive recent frequency deviates above or below set frequency by
Attainment width. Set with a percentage to the maximum frequency A103.
F
M105
C301
t
Freq Attain
C302: I-Detection (current detection) Level (%)
