After removing the cover, confirm that the "DC BUS CHARGE LED" in the unit on bleeder board
has gone out. Also check that the voltage between terminals L+1 or L+2 and L- is 15V or less
before starting the inspections.
MCCB
Power Supply
(Note 4)
(Note 2)
(Note 3)
(Note 1) AC DRIVE input / output terminals
The AC DRIVE input terminals are L1, L2 & L3. The output terminals to the motor are U, V & W.
Connect the power supply to input terminals L1, L2 & L3 only. Never connect the power supply to
the U, V, and W terminals. Incorrect wiring will lead to AC DRIVE damage or fires.
(Note 2) Wire size
Use wires having the size (or larger) shown in the below table for the main circuit wiring shown in
the above figure. The applicable wire size range, applicable ring terminal and tightening torque for
the main circuit terminals are shown in the Table-1 for 400V Series, Table-2 for 500V Series and
Table-3 for 600V Series.
Listed ZMVV, Lugs shall be used & copper wire with 75° C (167° F) used for external connection.
Axpert-Eazy AC Variable Frequency Drive
Noise
Filter
ACL
(Note 4)
E E
(Note 7)
(Note 5)

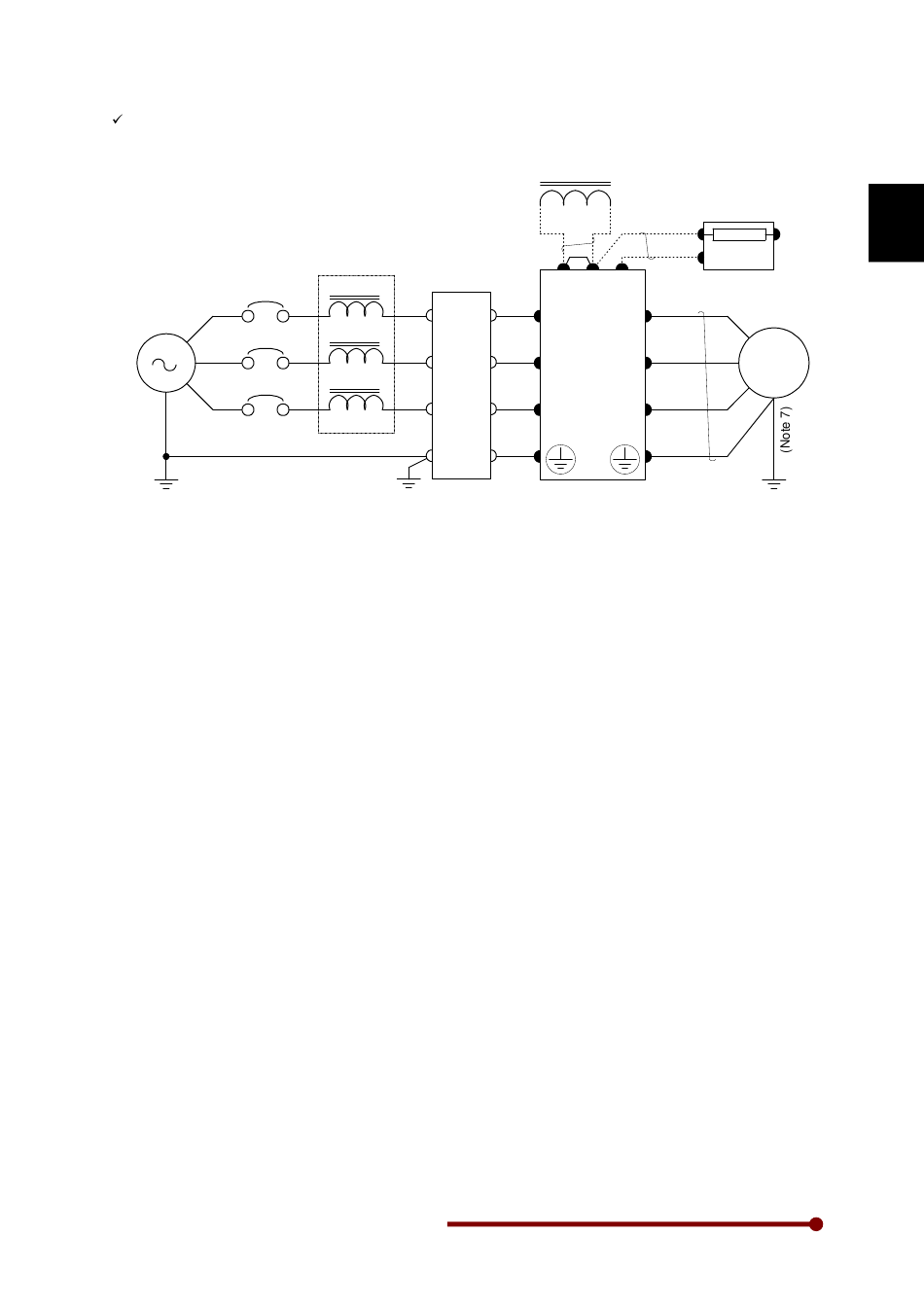

EXAMPLE OF MAIN CIRCUIT WIRING
DCL
(Note 9)
(Note 2)
L+1 L+2 L-
L1 U
AXPERT
L2 V
EAZY
L3 W
(Note 12)
(Note 1)
DB UNIT
(Note 10)
(Note 6)
(Note 8)
M
