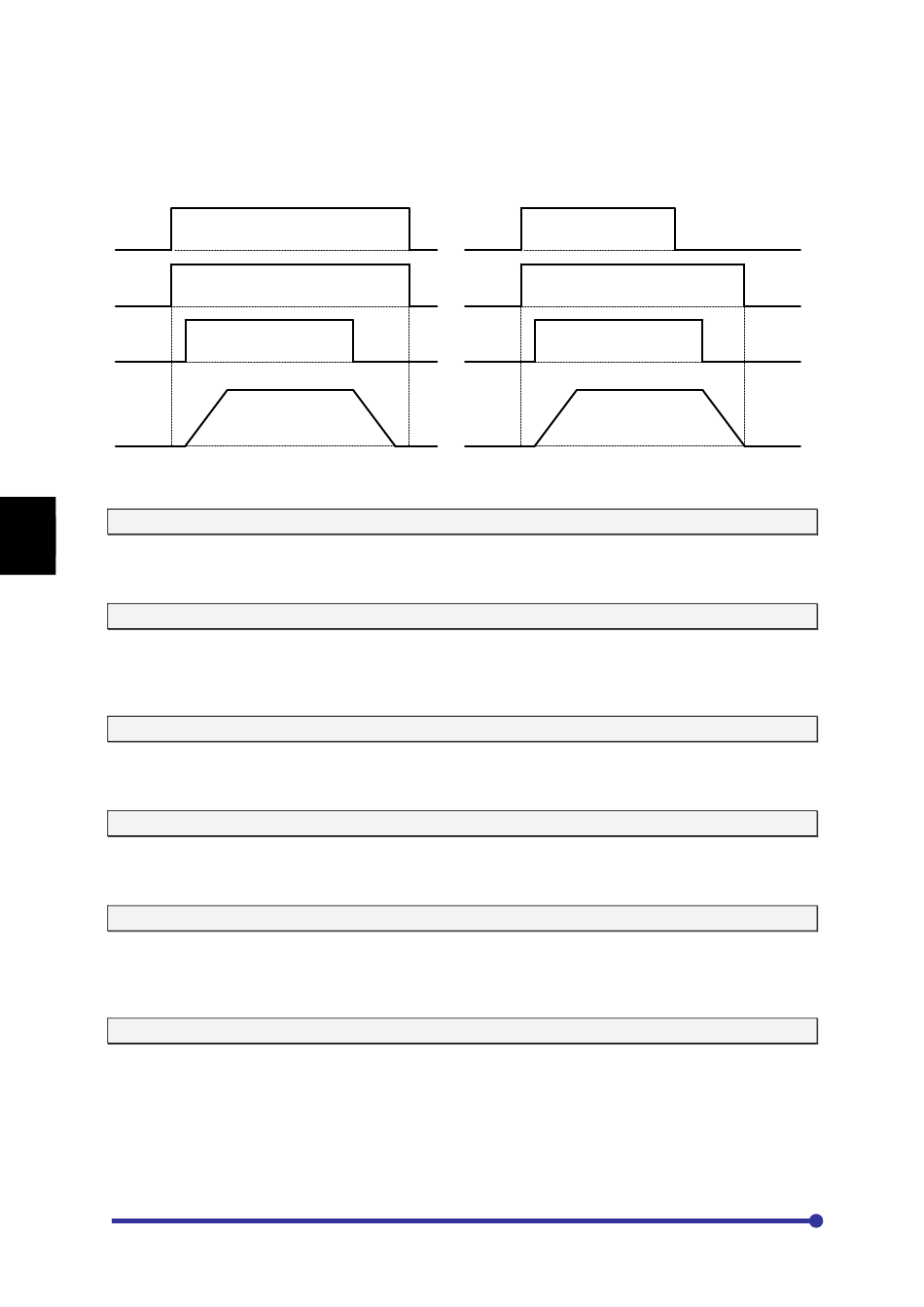

MODE – D: AUXILIARY DRIVE PARAMETERS
PSI Aux Drive
PSO Aux Drive
RUN
GROUP – 1: MOTOR PARAMETERS
D101: Motor Voltage (Vac)
6
Enter motor nameplate voltage of auxiliary drive. This is used as reference in the software. This is
the motor terminal voltage during full load at the base frequency.
D102: Motor Current (Amp)
Enter motor rated current from the auxiliary motor nameplate. This is full load motor current at base
frequency. The motor over load and other current related protections are based on this value. This
value cannot be set higher than AC DRIVE rated current M305.
D103: Motor Frequency (Hz)
Enter motor base frequency from the auxiliary motor nameplate. Base frequency A403 should be set
in accordance to the motor frequency.
D104: Motor Speed (rpm)
Enter motor base speed from the auxiliary motor nameplate. When higher than this speed, the flux
control during vector control will be weakened.
D105: Motor Output Rating (kW)
Enter motor rated capacity from the auxiliary motor nameplate.
GROUP – 2: FREQUENCY SETTING
D201: Local Set Frequency (Hz)
This is the set frequency for auxiliary drive when the frequency reference input source is local
(A106=1). The output will ramp to this frequency, when start command is given.
The minimum limit for this parameter is decided by minimum frequency D202. If D202 is set higher
then D201, the value of D202 is automatically assigned to D201.
The maximum value of this parameter is decided by maximum frequency D203. The value of D201
cannot be set higher than D203.
Amtech
6-96
Inverter Output
PSI Aux Drive
PSO Aux Drive
RUN
Inverter Output
