F F
A103 A103
V I
A102
A102
10V 4mA 20mA
FSV 10-0V FSI 20-4mA

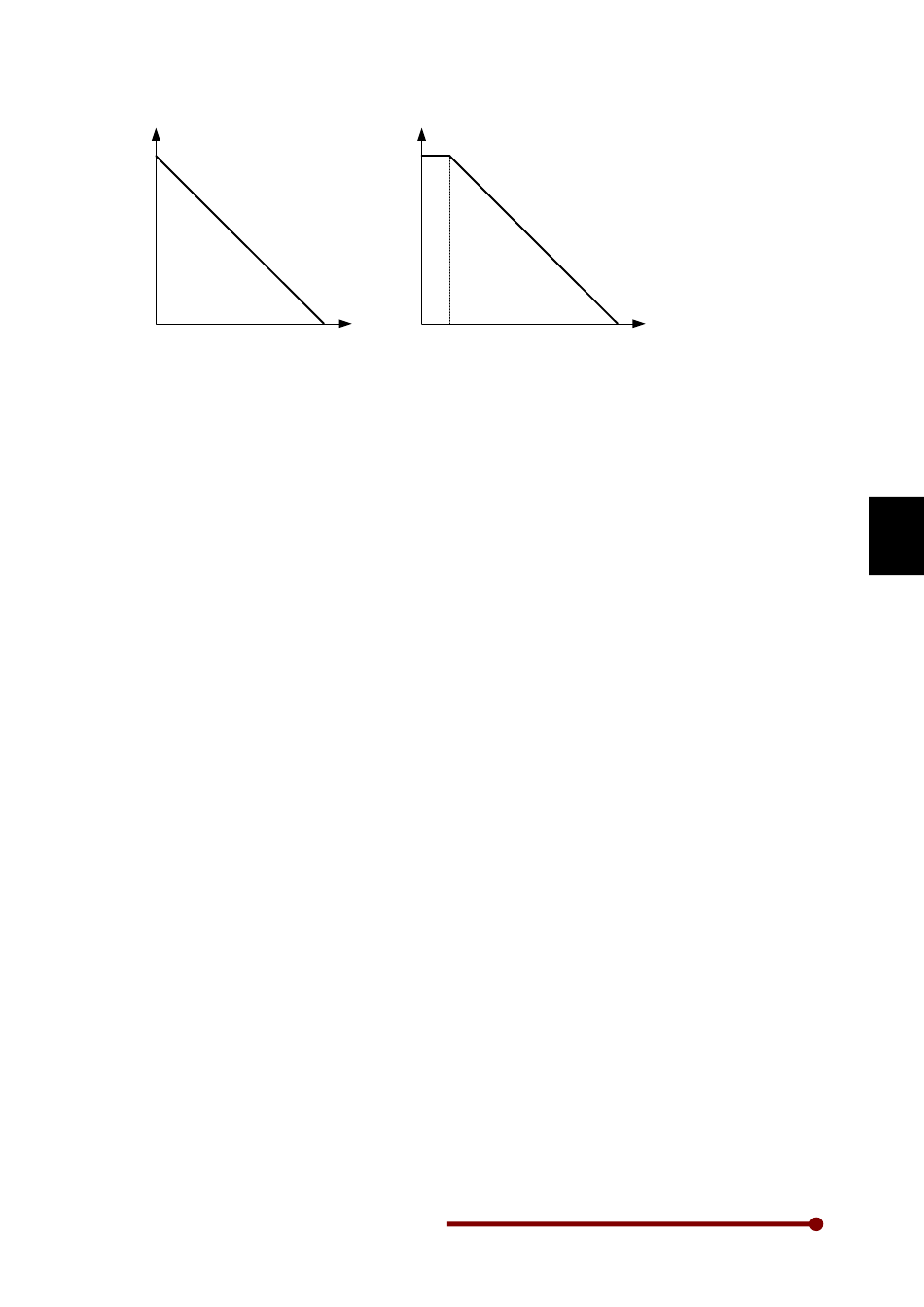

6. FSV 10-0V
This is an inverse to option-2. When this option is selected, the set frequency M105 corresponds to
analog input FSV. The output frequency will be minimum at 10 V and maximum at 0 V.
7. FSI 20-4mA
This is an inverse to option-3. When this option is selected, the set frequency M105 corresponds to
analog input FSI. The output frequency will be minimum at 20 mA and maximum at 4 mA. The
maximum limit is decided by A103.
6
8. FSV 5-0V
This is an inverse to option-4. When this option is selected, the set frequency M105 corresponds to
analog input FSV. The output frequency will be minimum at 5 V and maximum at 0 V.
9. FSI 20-0mA
This is an inverse to option-5. When this option is selected, the set frequency M105 corresponds to
analog input FSI. The output frequency will be minimum at 20 mA and maximum at 0 mA.
10. Static potentiometer
When this option is selected, the set frequency M105 will be decided by programmable sequence
inputs. Assign two programmable sequence inputs to Freq Increase and Freq Decrease
respectively. When Freq Increase is applied, the set frequency will increase and when Freq
Decrease is applied, the frequency will decrease. If both the signals are applied simultaneously, it will
have no effect. The rate of frequency increase / decrease is 0.1 Hz at every 100msec.
11. Serial
In this option, the set frequency M105 can be assigned from serial link.
12. PID Output
In this option, the PID output will be the set point. When selecting this input, enable the PID Control in
C601. The monitor option M105 will display the corresponding set frequency value, even if the AC
DRIVE is stop.
For more information on PID control, refer Mode-C, Group-6 parameters.
13. VIN 0-10V
When this option is selected, the set frequency M105 corresponds to analog input VIN. The output
frequency will be minimum at 0 V and maximum at 10 V.
