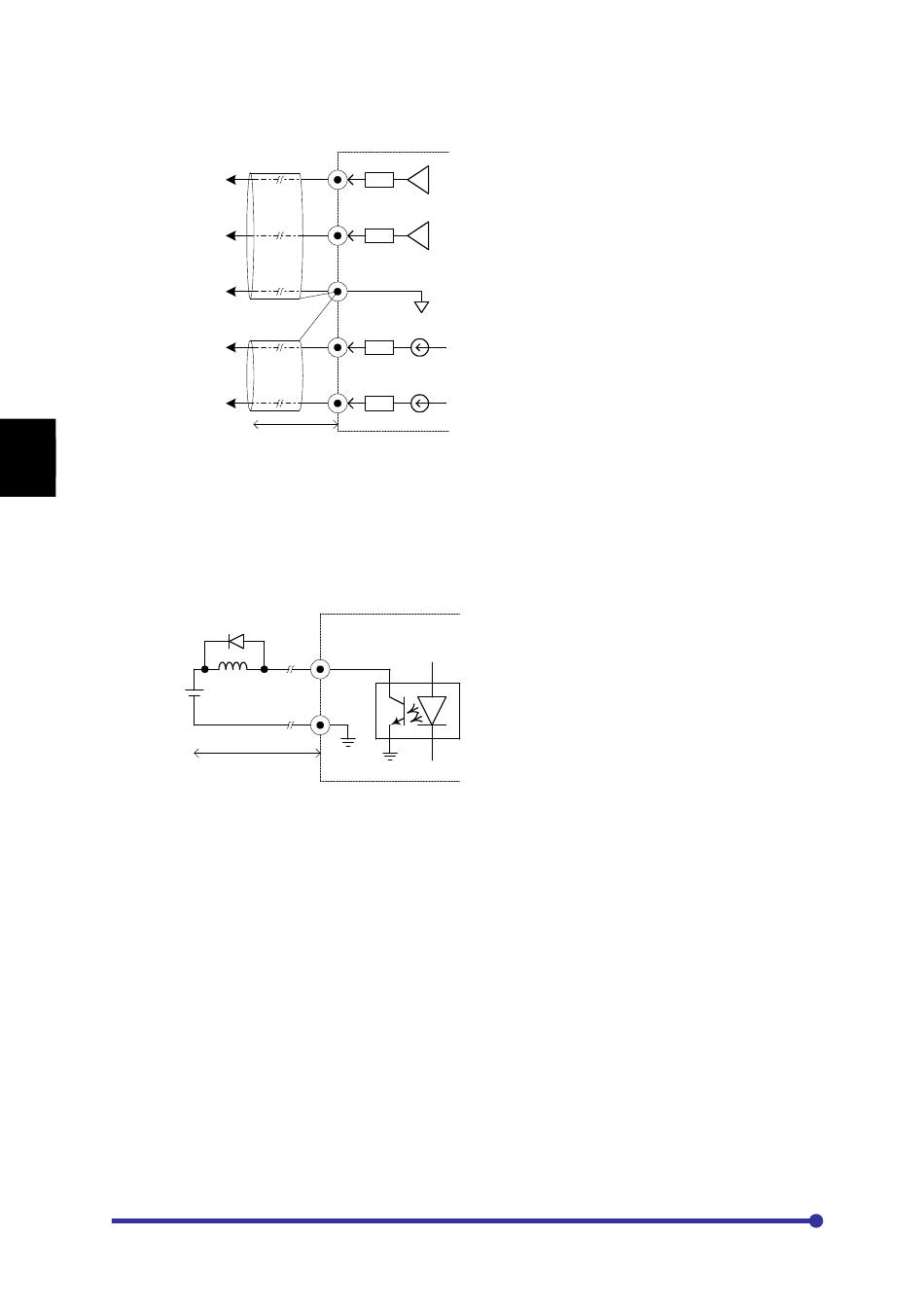

5-4 Programmable analog output (PAO) wiring

Output Frequency
(0-10V)
Output Current
(0-10V)
Ground
Output Power
(4-20mA)
Output Voltage
(4-20mA)
5
Precautions
1. Use 10V full-scale meter (impedance 10k or higher).
2. The maximum output current is 1mA for voltage output.
3. Use a shielded wire shorter than 30meters (98.4') for the wiring.
4. For the shield connections, open the mate side, and connect to 0V terminal on TB1.
5-5 Programmable sequence output (Open Collector Type) wiring
Max 30Vdc/
50mA
Precautions
1. To drive an L load, such as a coil, insert the flywheel diode shown in the drawing.
2. Keep the wiring length to 50meters (164') or less.
3. Use within the 30VDC, 50mA ratings range.
Amtech
5.4
VO1
270R
VO2
270R
0V
IO1
50R
IO2
50R
L<30m (98.4')
PSO
COIL
COM
L<50m (164')
