DTMF MEMORY
6.

Entering a DTMF code

DTMF codes are used for auto-patching,
controlling other equipment, and so on�
The transceiver has up to 16 DTMF Memory
channels (d0–dF) for up to 24 digit often-used
DTMF codes�
NOTE: To enter a DTMF code, "BAK" or "TVo" must
be selected in the "OK" ([BANK/OPT] key) in the
Initial Set mode� (p� 8-6)
1� Hold down [BANK OPT] for 1 second to enter the
Option Set mode�
2� Push [SET LOCK] or [MONI ANM PA] to select
"DTM" (DTMF Memory encoder)�
3� Rotate [DIAL] to select "ON�"
• The DTMF Memory encoder is turned ON�
4� Push [BANK OPT] to enter the DTMF Memory mode�
• The DTMF Memory Channel number blinks�
L The previously entered DTMF code is displayed, if set�
NOTE: The previously entered code in the selected
DTMF Memory channel will be cleared by doing the
following steps�
5� Rotate [DIAL] to select the desired blank DTMF
Memory channel�
6� Push [SET LOCK] or [MONI ANM PA] to enter the
DTMF Memory Programming mode�
• The first digit (--) blinks�
7� Rotate [DIAL] to select the character�
8� Push [MONI ANM PA] to set the character�
• After the character is set, the next digit is
automatically selected�
L Push [SET LOCK] to go back to the previous digit�
L When the 6th character is set, the next 6 blank digit
group will be displayed�
L The S/RF indicator shows the number of digits being
displayed, as shown below�
The number of digits
Indicator
9� Repeat steps 7 and 8 until the desired DTMF code
entry (up to 24 digits) is completed�
10� Push any key other than [SET LOCK] or
[MONI ANM PA] to set the code and exit the
DTMF Memory Programming mode�
• The 100 MHz digit is changed to "d�"
L To go back to the Option Set mode, hold down
[BANK OPT] for 1 second�
being displayed
19 ~ 24
13 ~ 18
7 ~ 12
1 ~ 6

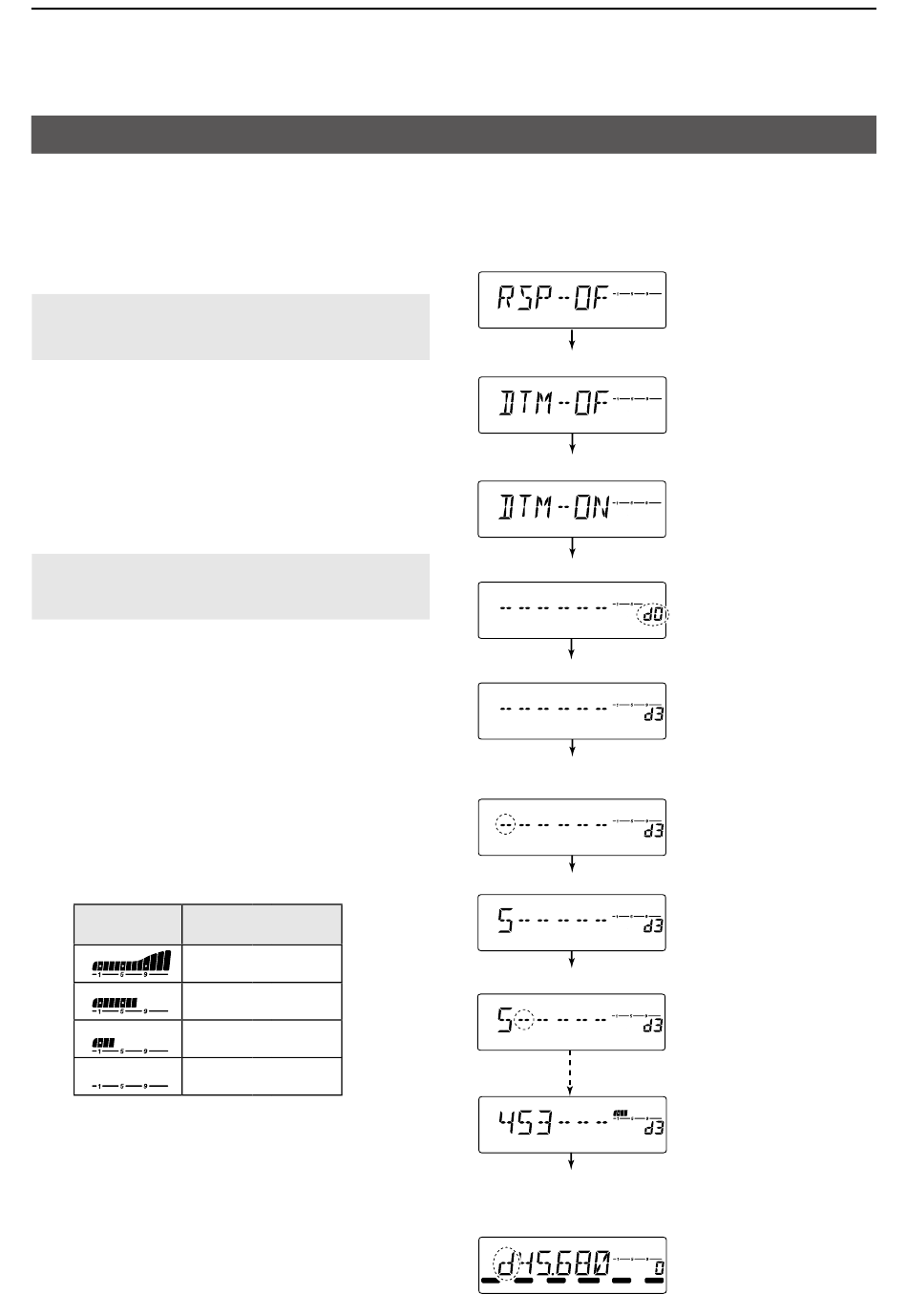

Example: Entering "5428AB453" into DTMF
Memory channel "d3."
Hold down [BANK OPT] for 1 second to enter the
Option Set mode�
NAR
MID
LOW
ANM
S ET MONI
Push [SET LOCK] or [MONI ANM PA] to select "DTM�"
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE M/CALL
Rotate [DIAL] to select "ON�"
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE M/CALL
Push [BANK OPT] to enter the DTMF Memory mode�
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE M/CALL
Rotate [DIAL] to select "d3�"
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET
MONI LOW TONE M/CALL
Push [SET LOCK] to enter the DTMF Memory
Programming mode�
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM T-SCAN
DUP
S ET MONI LOW TONE M/CALL
Rotate [DIAL] to select the character�
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE M/CALL
Push [MONI ANM PA] to set the character�
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE M/CALL
Repeat until the desired DTMF code entry
is complete�
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE M/CALL
Push any key other than [SET LOCK] or
[MONI ANM PA] to set the code and exit the DTMF
Memory Programming mode�
DIGITAL PRIO AO BUSY
MUTE
NAR
MID
LOW
LOCK ANM DUP T-SCAN
S ET MONI LOW TONE M/CALL
6-2
AO
PRIO SCAN
PRIO SCAN
The DTMF Memory Channel
number blinks�
PRIO SCAN
PRIO SCAN
The first digit blinks�
PRIO SCAN
PRIO SCAN
The next digit blinks�
PRIO SCAN
PRIO SCAN
The 100 MHz digit is
changed to "d�"
PRIO SCAN
