increment by one and a new DataControllerLog.txt file will be created. When an
existing DataControllerLog.txt.4 file is replaced by an incrementing
DataControllerLog.txt.3 file, the original DataControllerLog.txt.4 file will be purged.
• In LogFolder, define the directory path in a local machine or network location
where the DataController Log files are placed. The log file contains the information
as specified in the Logging Level setting.
• In DataFolder, define the directory path where the Data XML files (POINTs/Data/
Events) are created by DataController and are consumed by SKF @ptitude Analyst.
This must match exactly the Input directory in the SKF @ptitude Analyst XML
Import Configuration dialog, as stated in Chapter 9, Configuring the XML
Import. (The example below shows the default DataFolder.)
• The ConfigFolder stores the path to the SpectrumCollectNvs.xml file.
• Specify the file Prefix for Data XML files created by the DataController. The default
is A. For installations that use multiple DataController instances, each instance
must have a unique xml file prefix. For example, this entry is appended to the
regular prefix of "WVT_ISA100_" to become "WVT_ISA100_A_". The prefix of the
next DataController instance may be changed to "B" so that the prefix will become
"WVT_ISA100_B_" to avoid file name conflicts from different instances of
DataController in the system.
SKF Multilog On-line System WVT
User Manual

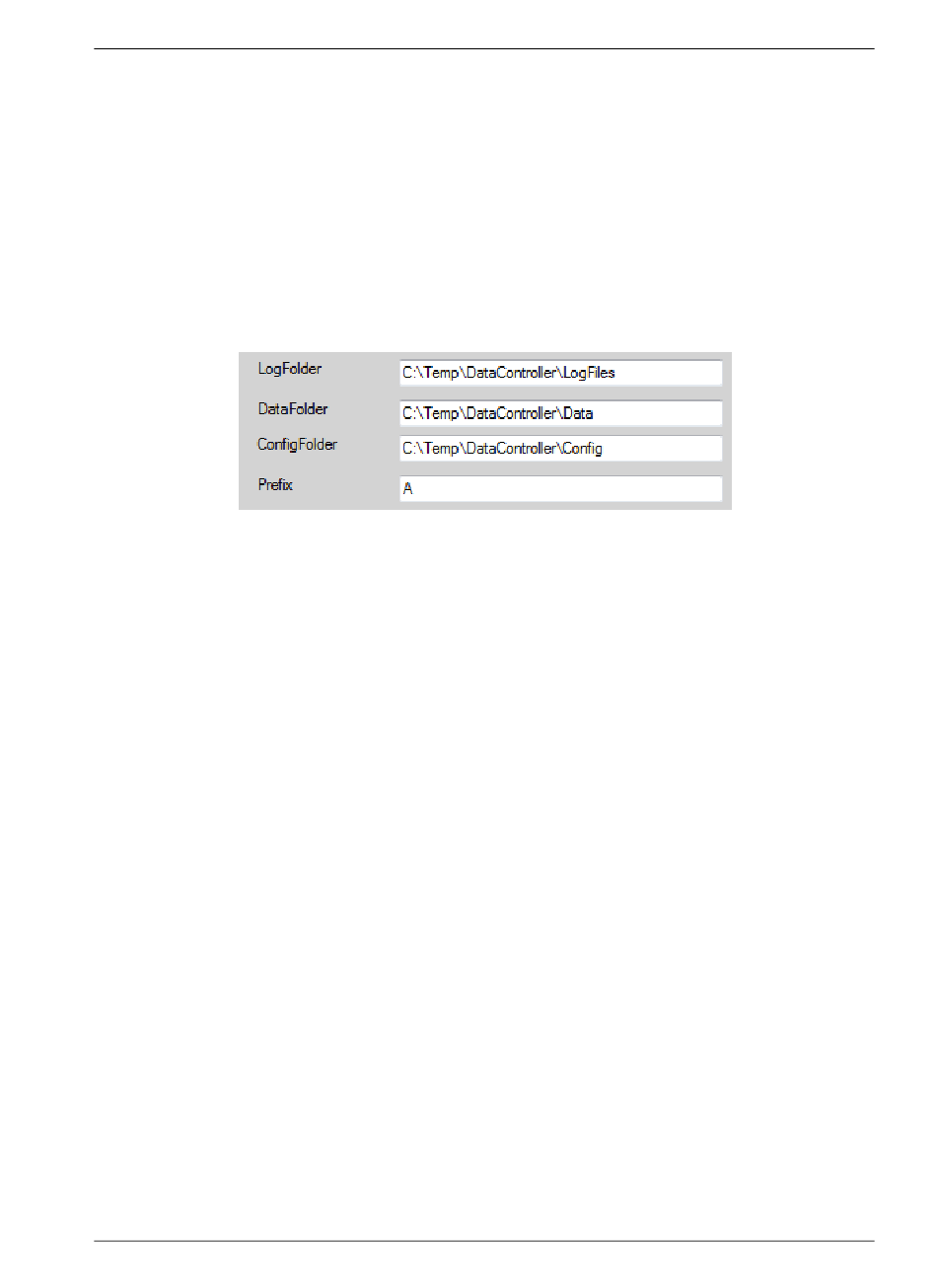

Figure 7 - 8.
DataFolder and Prefix Defaults.
