• Select the SampleRate.
WARNING: The maximum Sample Rate is 25 600 or 10 kHz because the sensor
develops resonance at approximately 15 kHz.
Select the number of Averages: 1, 2, 3 or 4. The table above can help you
•
determine the maximum number of averages to select according to the number of
samples and sample rate.
• Select the Gain (1 or 10).
SKF Multilog On-line System WVT
User Manual

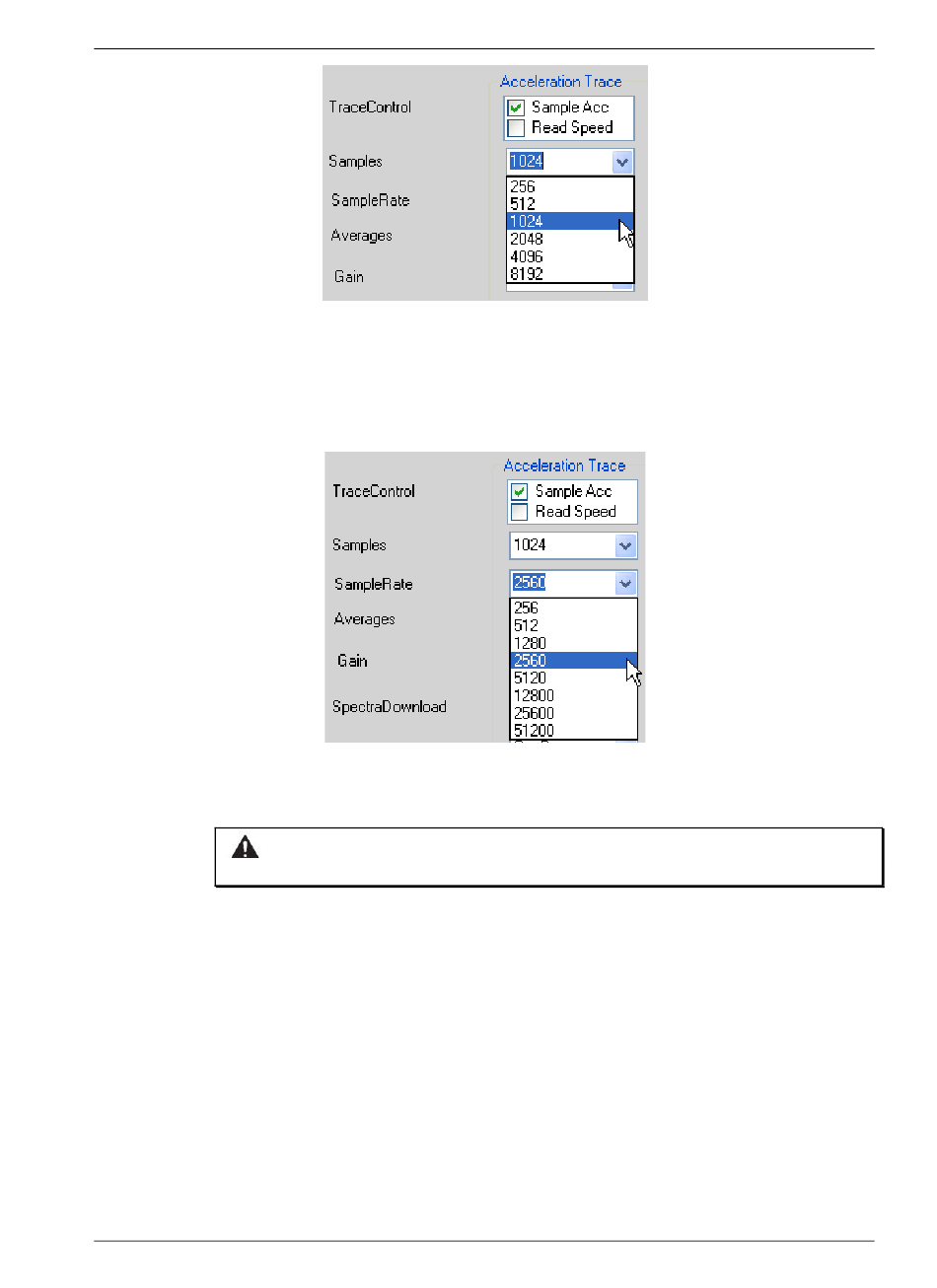

Figure 7 - 16.
Samples Options.
Figure 7 - 17.
SampleRate Options.
