Over-The-Air Provisioning Method - SKF On-line System WVT User Manual

Provisioning the Network Devices

Over-the-Air Provisioning Method

Over-the-Air Provisioning Method
Over-the-air provisioning is a two-step process. First, the access point devices must be
provisioned. Then, the access points are enabled to provision the field devices, such as
the SKF Multilog WVT.
Provisioning Access Point Devices
To provision access point devices using the over-the-air provisioning method:
• Launch an Internet browser.
• Enter the IP address for the WDM in the URL box.
• Log on to the WDM user interface. (The default User ID is administrator. The
default Password is password.) The WDM user interface web page will open.
• In the Selection Panel (left side), select the WDM.
• In the Property Panel (right side), expand the System Manager.
• Under ISA100 Network Provisioning, in the Over the Air Provisioning group,
select Enabled.
10 - 2

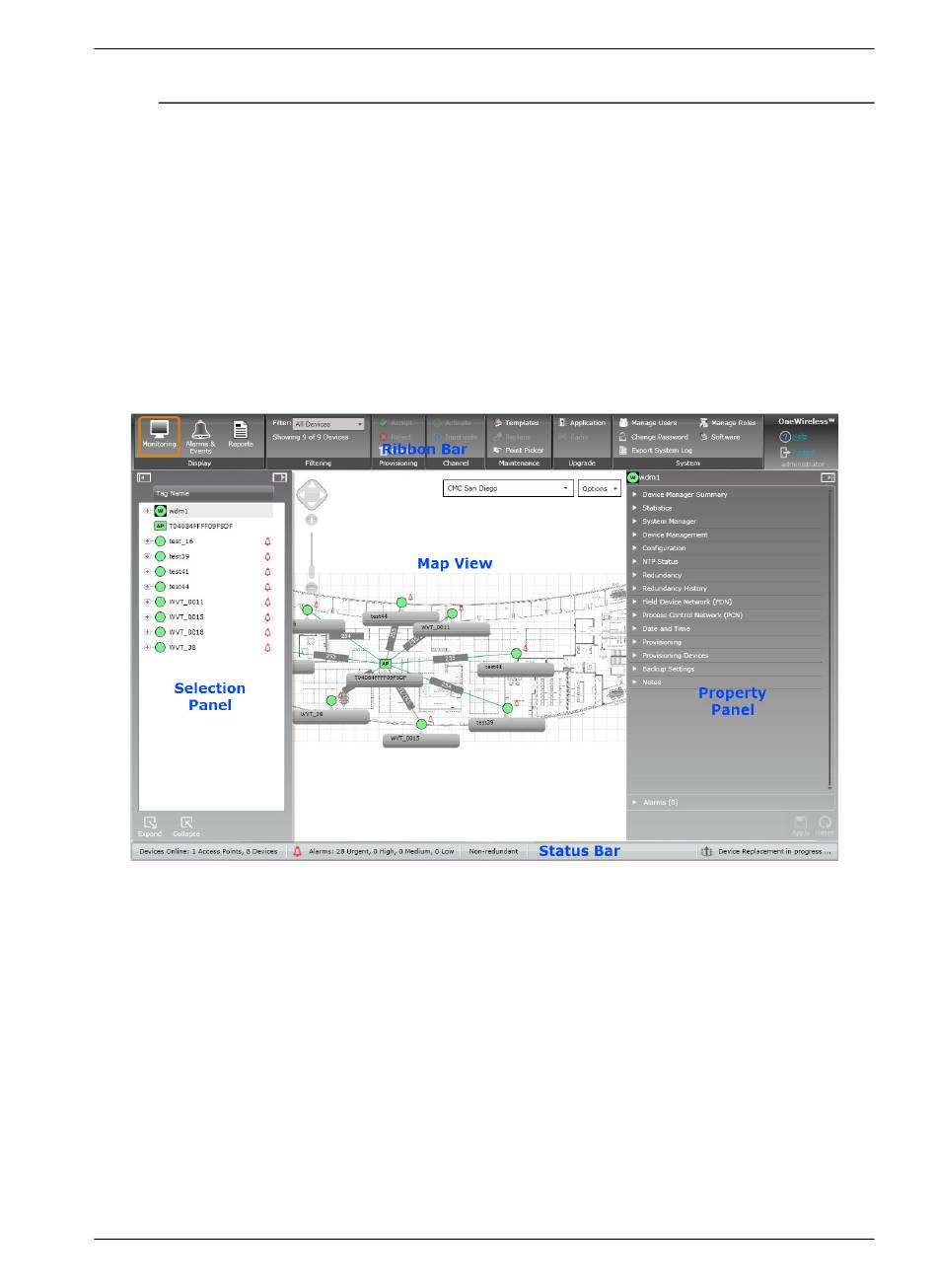

Figure 10 - 1.
WDM User Interface Web Page With Key Section Labels Added.
