Display
The display on the front shows the status of the SKF Multilog WVT. You can interrogate
the unit at any time by pressing the display push button on the right side of the unit. On
pressing the push button, the backlight is illuminated for five seconds and subsequent
presses will scroll through three screens. When measurements are being made for
transmission over the network, the values are displayed on the screen. The display will
automatically turn off after a few seconds.
• Push the button once to view LAST PV's (trends), the last set of measured values.
• Push the button again to view SYSTEM, system information such as bias voltages
and next route information.
SKF Multilog On-line System WVT
User Manual
 If the device is busy, it will not respond immediately to the push
button. Wait approximately 15 seconds and then try again.
 In environments below -30 °C (-22 °F) the LCD will not turn on.
(Software prevents the LCD from turning on to protect it.)

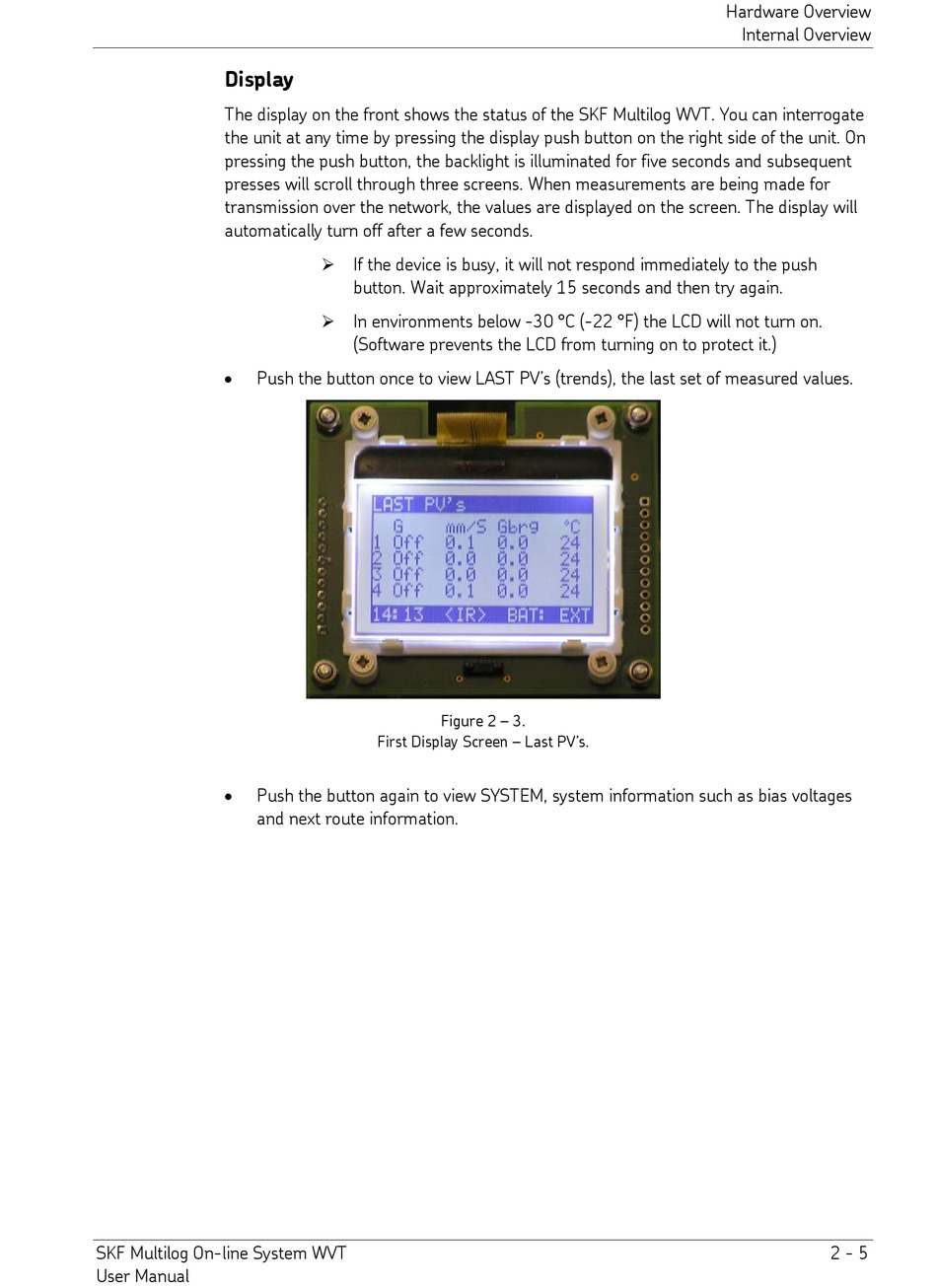

Figure 2 – 3.
First Display Screen – Last PV's.
