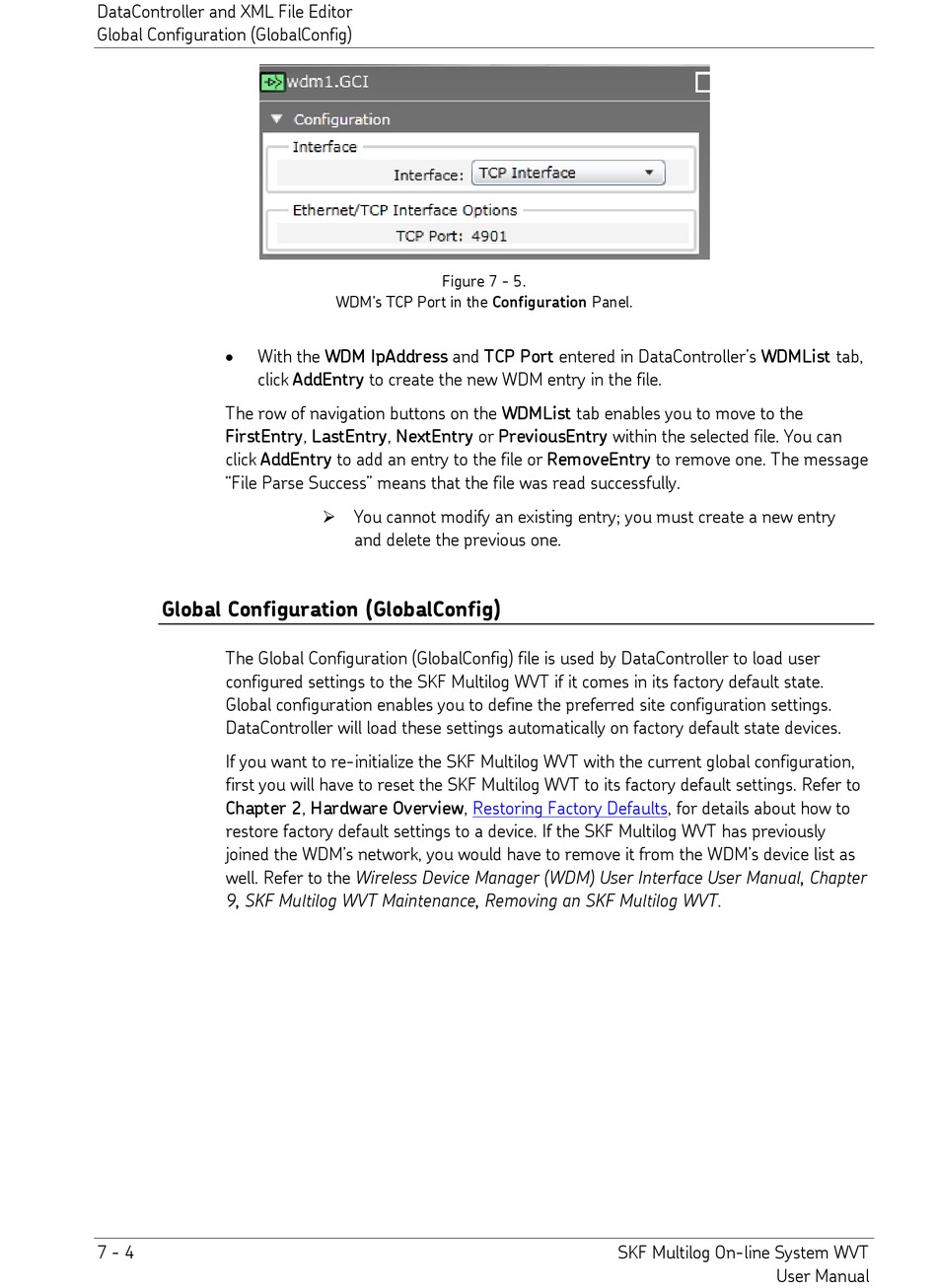

Global Configuration (Globalconfig) - SKF On-line System WVT User Manual

DataController and XML File Editor

Global Configuration (GlobalConfig)

• With the WDM IpAddress and TCP Port entered in DataController's WDMList tab,
click AddEntry to create the new WDM entry in the file.
The row of navigation buttons on the WDMList tab enables you to move to the
FirstEntry, LastEntry, NextEntry or PreviousEntry within the selected file. You can
click AddEntry to add an entry to the file or RemoveEntry to remove one. The message
"File Parse Success" means that the file was read successfully.
Global Configuration (GlobalConfig)
The Global Configuration (GlobalConfig) file is used by DataController to load user
configured settings to the SKF Multilog WVT if it comes in its factory default state.
Global configuration enables you to define the preferred site configuration settings.
DataController will load these settings automatically on factory default state devices.
If you want to re-initialize the SKF Multilog WVT with the current global configuration,
first you will have to reset the SKF Multilog WVT to its factory default settings. Refer to
Chapter 2, Hardware Overview,
restore factory default settings to a device. If the SKF Multilog WVT has previously
joined the WDM's network, you would have to remove it from the WDM's device list as
well. Refer to the Wireless Device Manager (WDM) User Interface User Manual, Chapter
9, SKF Multilog WVT Maintenance, Removing an SKF Multilog WVT.
7 - 4
Figure 7 - 5.
WDM's TCP Port in the Configuration Panel.
 You cannot modify an existing entry; you must create a new entry
and delete the previous one.
Restoring Factory Defaults, for details about how to
SKF Multilog On-line System WVT
User Manual
