Hardware Overview
Internal Overview
• Push the button again to view STATUS, which includes network information,
battery charge data and the firmware version.
Another screen is used during device commissioning. Device commissioning allows the
SKF Multilog WVT to be tested independently of the network. This is useful to check the
connection of the sensors and the tacho device after they are connected to the SKF
Multilog WVT. Commissioning mode is discussed later in this user manual.
IrDA Interface
Directly below the screen and visible through the window is the IrDA interface. This is
used to communicate with a PDA device that is running the provisioning application.
The IrDA is enabled whenever the LCD display is on. The message <IR> is displayed on
the lower banner while the unit is ready to connect with a PDA. If there is no PDA in
2 - 6

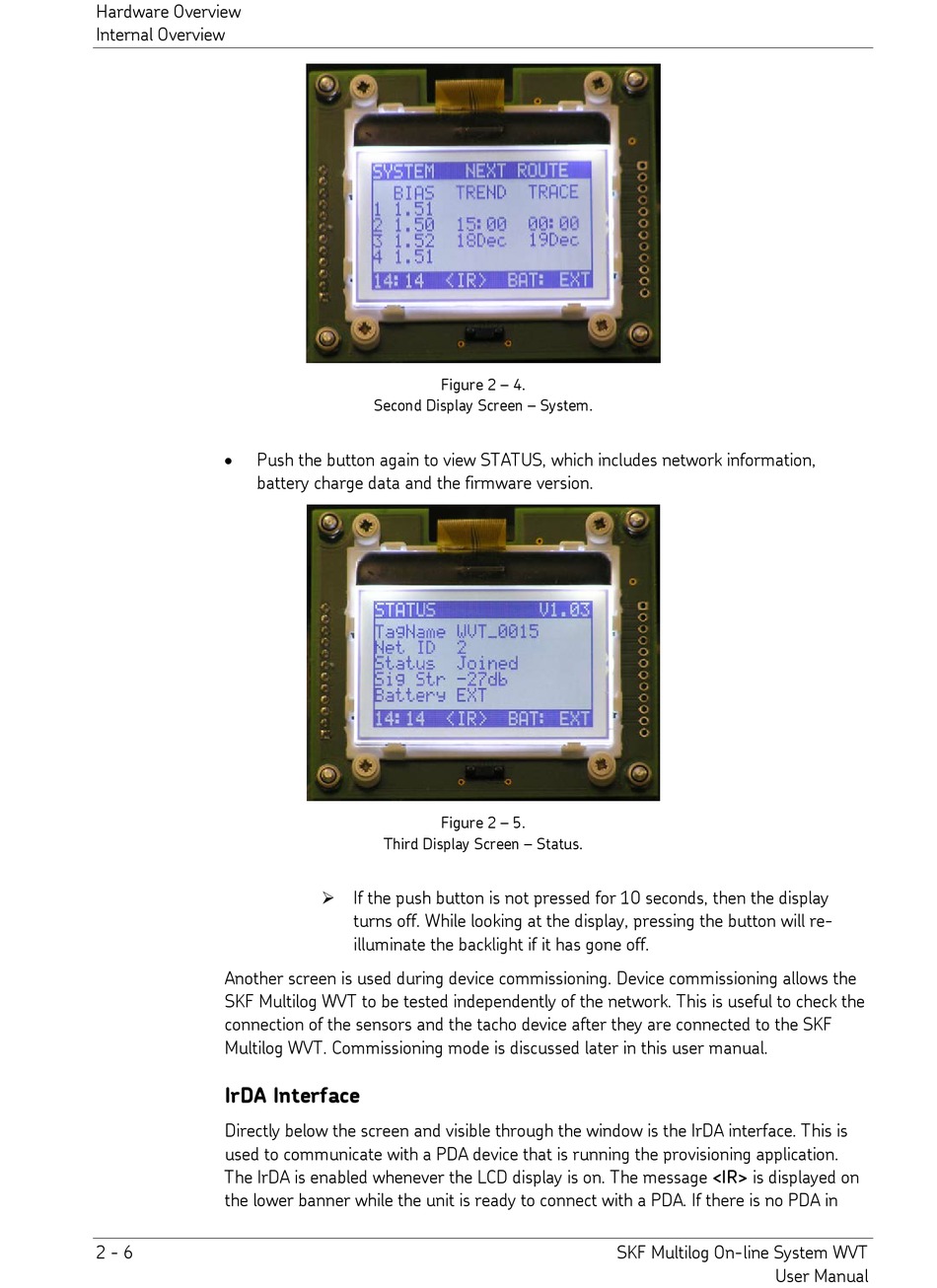

Figure 2 – 4.
Second Display Screen – System.
Figure 2 – 5.
Third Display Screen – Status.
 If the push button is not pressed for 10 seconds, then the display
turns off. While looking at the display, pressing the button will re-
illuminate the backlight if it has gone off.
