Setting Up the Network

Connecting the Network Components

Connecting the Network Components
Follow the mounting and operating instructions and guidelines provided with your
WDM, Access Point and FDAP devices. Establish the physical connections between the
components in the sequence presented below.
Prerequisites
Make sure that you have either the power supply (10 ~ 36 VDC) or the specified
batteries for the SKF Multilog WVT.
Make sure that you have the Ethernet cables required for connecting the devices.
Mount the SKF Multilog WVT at least 2 m (6.5 ft.) away from the nearest network
component with an antenna.
To establish physical connection between the components:
Mount the WDM according to the instructions provided in the OneWireless
Wireless Device Manager User's Guide.
Establish physical connection between the WDM and the FDAP. Connect the
Ethernet cable from the FDAP to the FDN port on the WDM. This establishes the
Field Device Network (FDN).
4 - 4

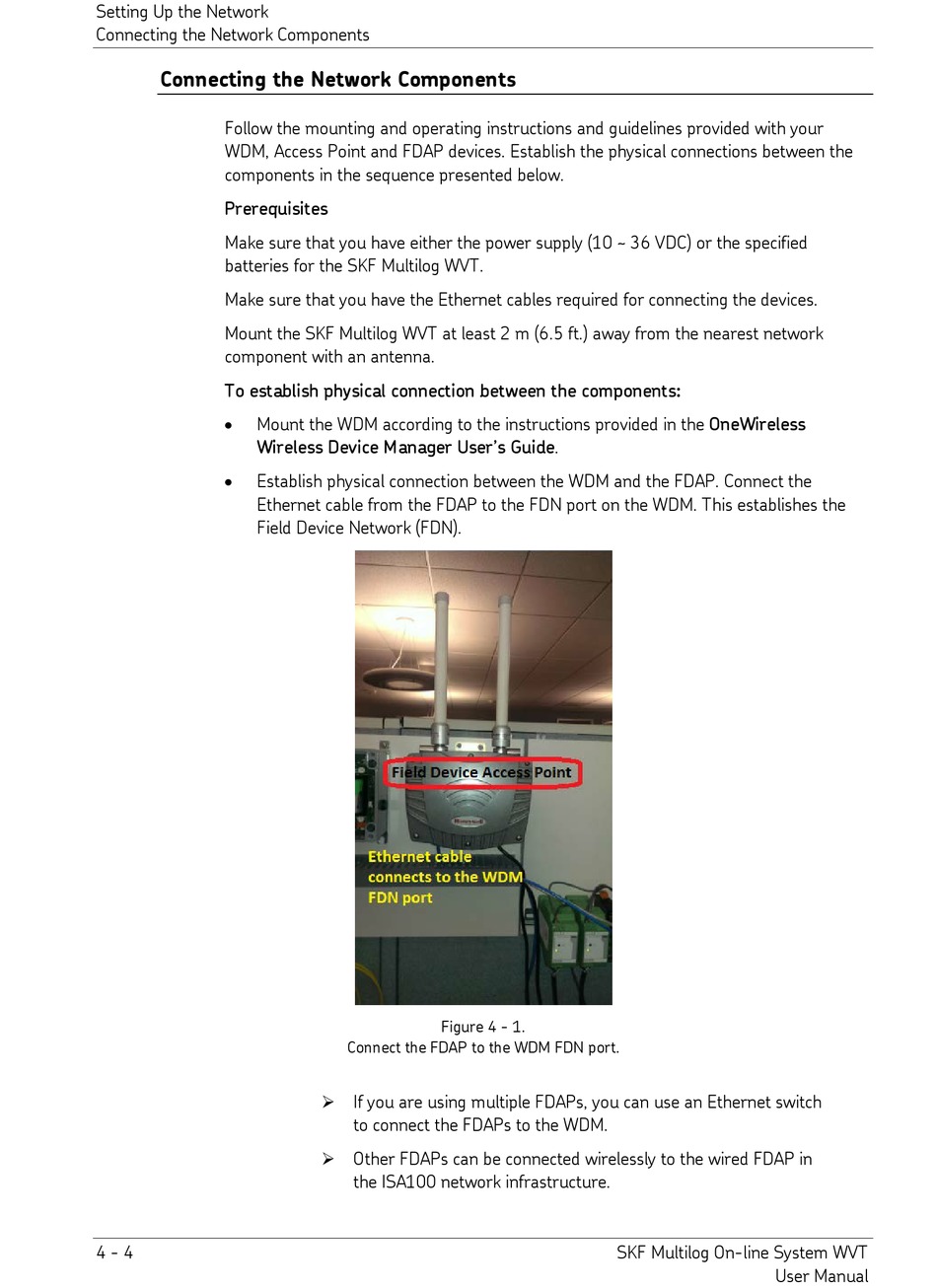

Figure 4 - 1.
Connect the FDAP to the WDM FDN port.
 If you are using multiple FDAPs, you can use an Ethernet switch
to connect the FDAPs to the WDM.
 Other FDAPs can be connected wirelessly to the wired FDAP in
the ISA100 network infrastructure.
