Setting Up the Network
Configuring the WDM, PCN and FDN Network Properties
•
Enter the IP Address and Subnet Mask that are compatible with the site network.
You may have to contact your IT department to get a static IP Address for each
WDM.
Click Apply at the lower right of the Property Panel to apply the new values.
•
•
Close the Property Panel by clicking the control element
the panel.
To configure the FDN IP address for the WDM:
•
In the Selection Panel, select (highlight) the WDM. The Property Panel on the right
side will display the properties of the selected WDM.
•
Click the white arrow next to Field Device Network (FDN) on the Property Panel.
The Field Device Network (FDN) section will open.
4 - 10

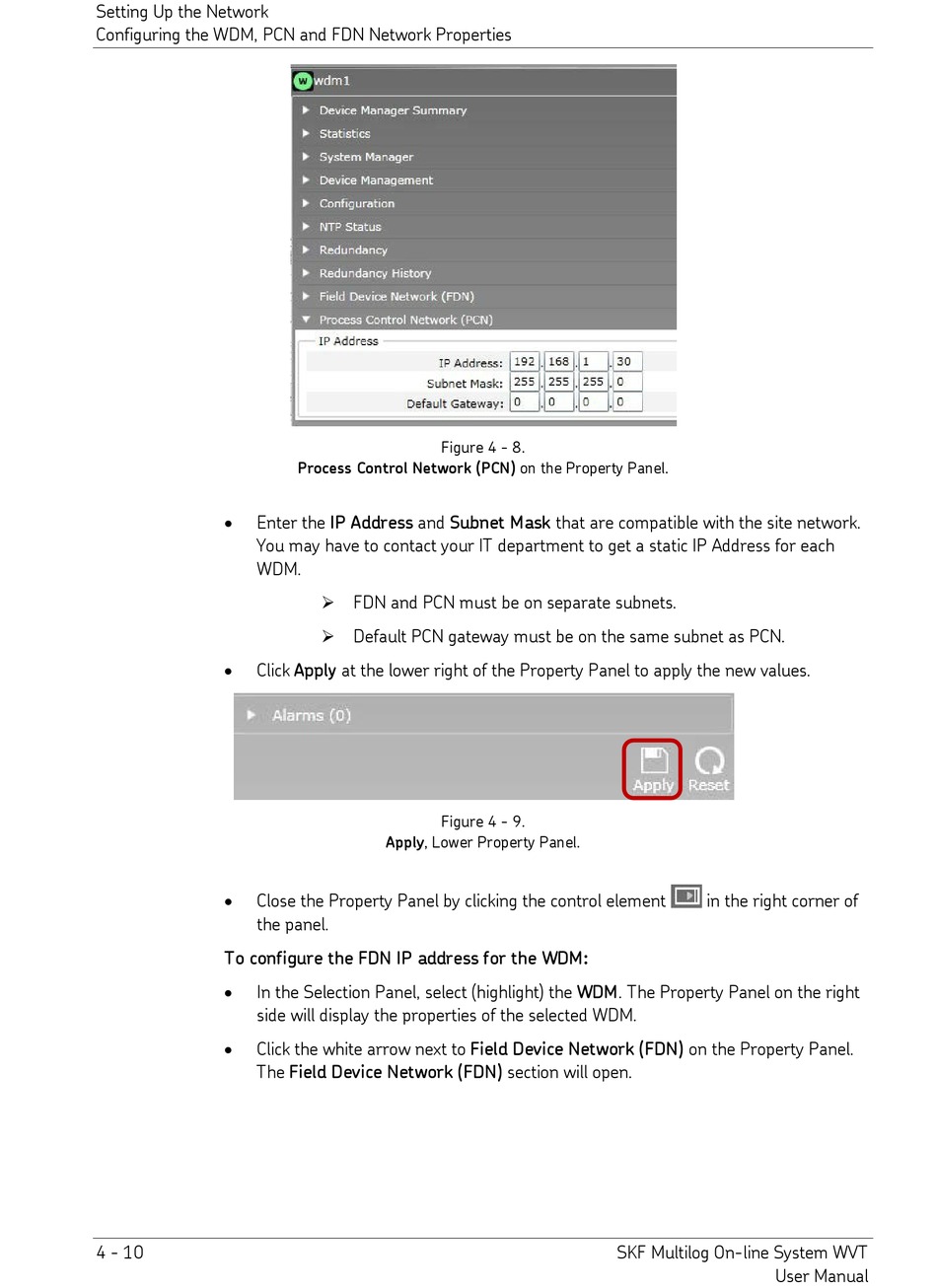

Figure 4 - 8.
Process Control Network (PCN) on the Property Panel.
FDN and PCN must be on separate subnets.
Default PCN gateway must be on the same subnet as PCN.
Figure 4 - 9.
Apply, Lower Property Panel.
in the right corner of
