Channel Settings – Trace Fields Matrix
The right side of the Channel Settings contains fields that define the parameters of the
Acceleration Trace, Velocity Trace and Bearing Trace measurements. The fields are
arranged as a matrix, as shown below.
To enter the Channel Settings (right side of the GlobalConfig tab):
• For TraceControl, select the appropriate checkbox to enable the measurement
sampling you want: Sample Acc, Sample Vel and/or Sample Bea.
• Select the number of Samples you want the SKF Multilog WVT to take. The
number of samples is equal to the number of FFT lines x 2.56.
7 - 14

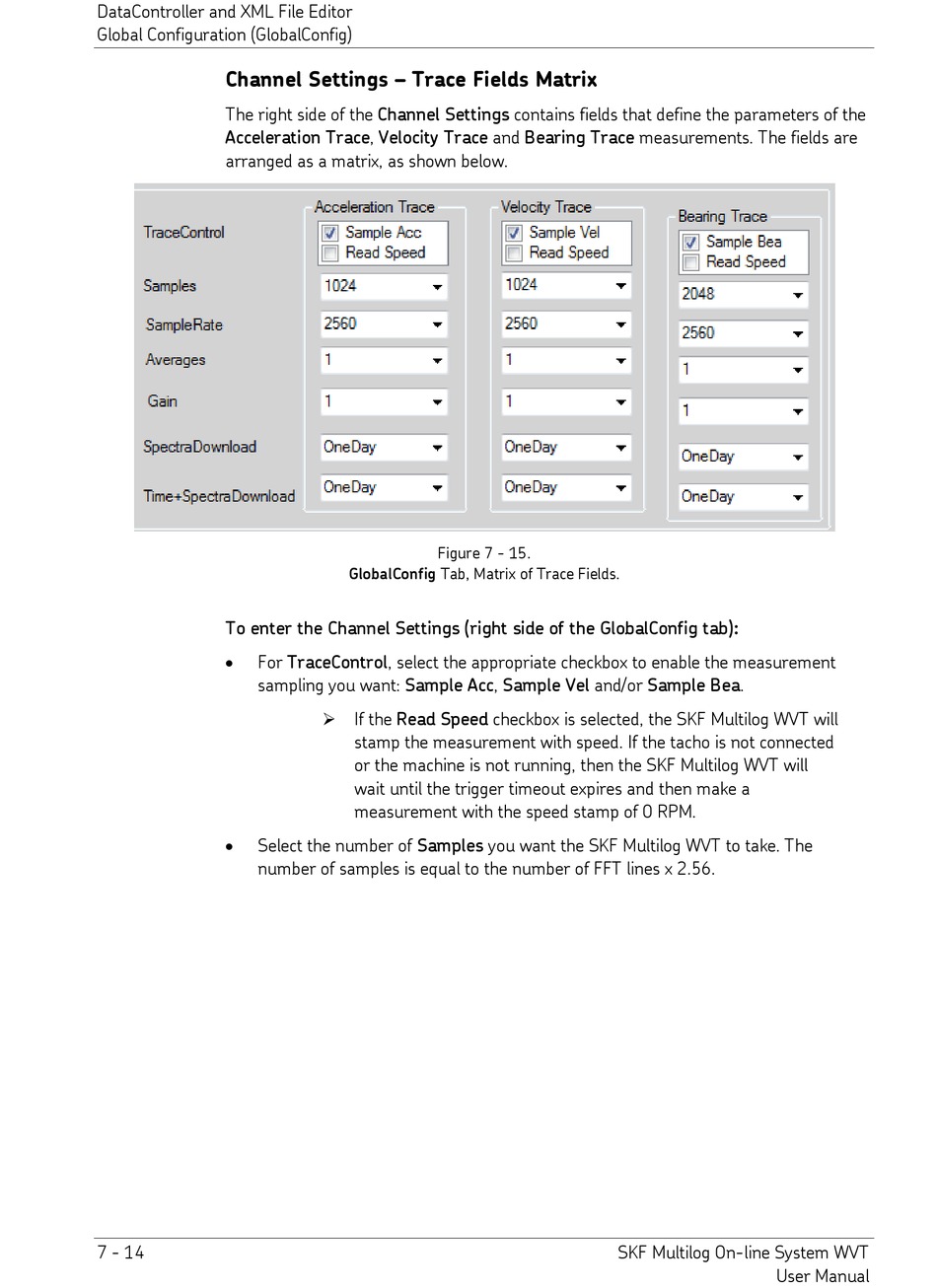

Figure 7 - 15.
GlobalConfig Tab, Matrix of Trace Fields.
 If the Read Speed checkbox is selected, the SKF Multilog WVT will
stamp the measurement with speed. If the tacho is not connected
or the machine is not running, then the SKF Multilog WVT will
wait until the trigger timeout expires and then make a
measurement with the speed stamp of 0 RPM.
