Provisioning the Network Devices
Over-the-Air Provisioning Method
The selected access point is now enabled to function as an over-the-air provisioning
device for the next 60 minutes. Unprovisioned field devices, such as the SKF Multilog
WVTs, start appearing in the Selection Panel. You can filter the device list to view only
the unprovisioned field devices.
On the ribbon bar, in the Filter group, click Device Status > Un-Provisioned.
•
• Expand the extended Selection Panel to view the available device parameters.
• Select the required SKF Multilog WVT devices in the Selection Panel and then click
Accept on the ribbon bar.
The Accept Over the Air Devices dialog opens. It displays all the unprovisioned field
devices that you have selected for enabling over-the-air provisioning.
• Click Accept. The Progress column displays the status as In Progress,
Provisioning, and then Completed when complete. Do not close the dialog box
until the status is Completed.
Click Close to close the dialog.
•
IMPORTANT: Repeat the procedure above to enable over-the-air provisioning
capability in line powered FDAP routers. This enables the line powered FDAP
routers to provision distant nodes in the network.
10 - 6

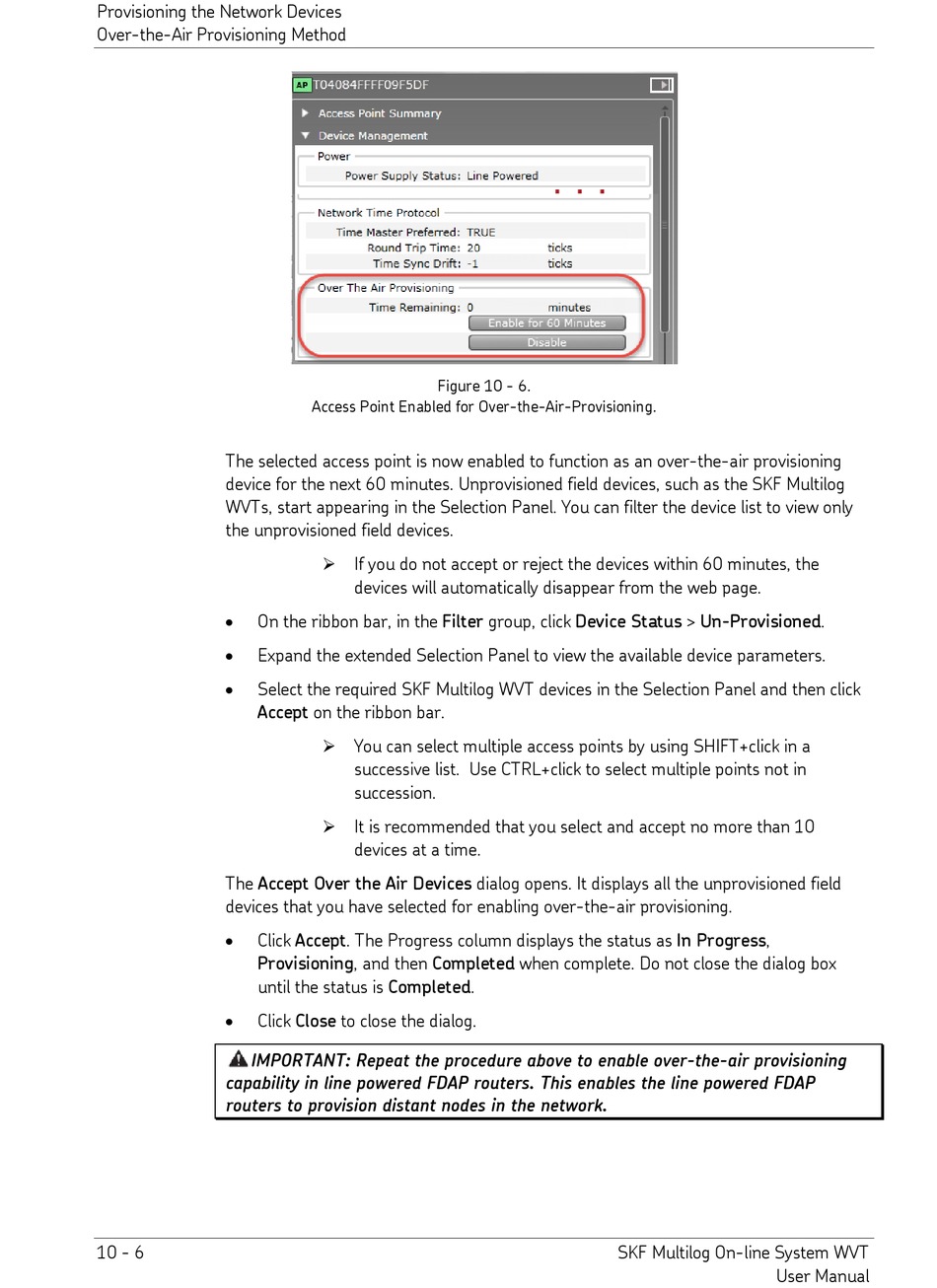

Figure 10 - 6.
Access Point Enabled for Over-the-Air-Provisioning.
 If you do not accept or reject the devices within 60 minutes, the
devices will automatically disappear from the web page.
 You can select multiple access points by using SHIFT+click in a
successive list. Use CTRL+click to select multiple points not in
succession.
 It is recommended that you select and accept no more than 10
devices at a time.
