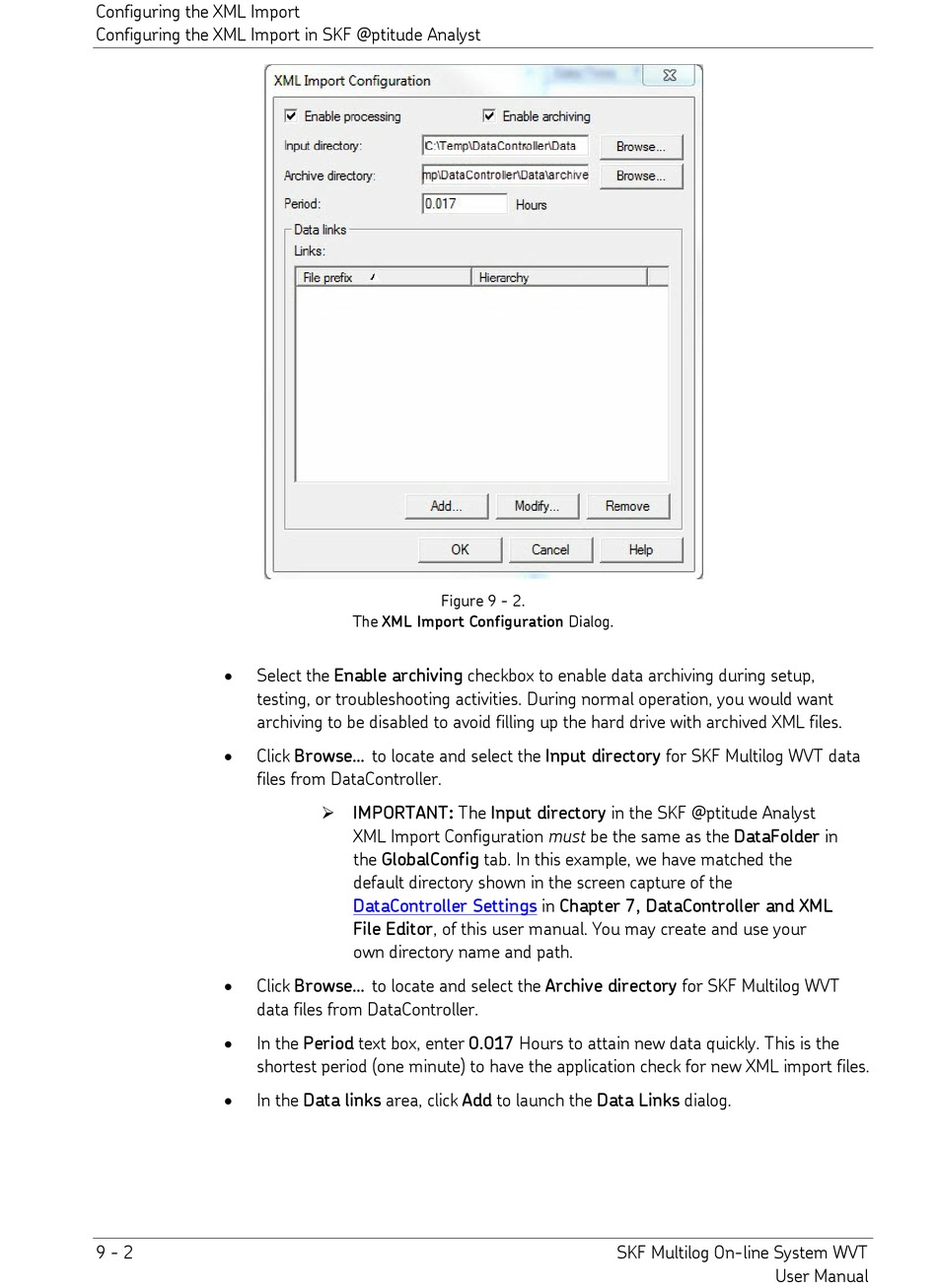

SKF On-line System WVT User Manual page 122

Configuring the XML Import
Configuring the XML Import in SKF @ptitude Analyst
• Select the Enable archiving checkbox to enable data archiving during setup,
testing, or troubleshooting activities. During normal operation, you would want
archiving to be disabled to avoid filling up the hard drive with archived XML files.
• Click Browse... to locate and select the Input directory for SKF Multilog WVT data
files from DataController.
• Click Browse... to locate and select the Archive directory for SKF Multilog WVT
data files from DataController.
• In the Period text box, enter 0.017 Hours to attain new data quickly. This is the
shortest period (one minute) to have the application check for new XML import files.
• In the Data links area, click Add to launch the Data Links dialog.
9 - 2
Figure 9 - 2.
The XML Import Configuration Dialog.
 IMPORTANT: The Input directory in the SKF @ptitude Analyst
XML Import Configuration must be the same as the DataFolder in
the GlobalConfig tab. In this example, we have matched the
default directory shown in the screen capture of the
DataController Settings
File Editor, of this user manual. You may create and use your
own directory name and path.
in Chapter 7, DataController and XML
SKF Multilog On-line System WVT
User Manual
