Chapter Summary - SKF On-line System WVT User Manual

• Click Load DD File.
• Browse to the directory location of the Data Description file. The file name is
ISA100WVT_SKF_20200001.zip, where 2020 is the Model number for the SKF
Multilog WVT and 0001 is the Device Revision number.
• Select the DD zip file and click Open. The DD file is uploaded to the WDM and an
upload success message displays.
• Click Close to close the Upload DD dialog.
If the Data Description file is not uploaded to the WDM when an SKF Multilog WVT
device joins the network, then the WDM will select a default Data Description file for the
device and you will not see an error message. By using the default Data Description file,
you will be able to see only the radio parameters in the WDM user interface. The sensor
parameters, such as acceleration, velocity overalls, traces, etc., will not be displayed.

Chapter Summary

To summarize the network setup process, we have:
• Connected the WDM and FDAP through the FDN port. This establishes the Field
Device Network (FDN).
• Connected the WDM and PC through the PCN port. This establishes the Process
Control Network (PCN).
• Powered up and provisioned the connected components (access points).
• Configured the PC to communicate with the WDM.
SKF Multilog On-line System WVT
User Manual

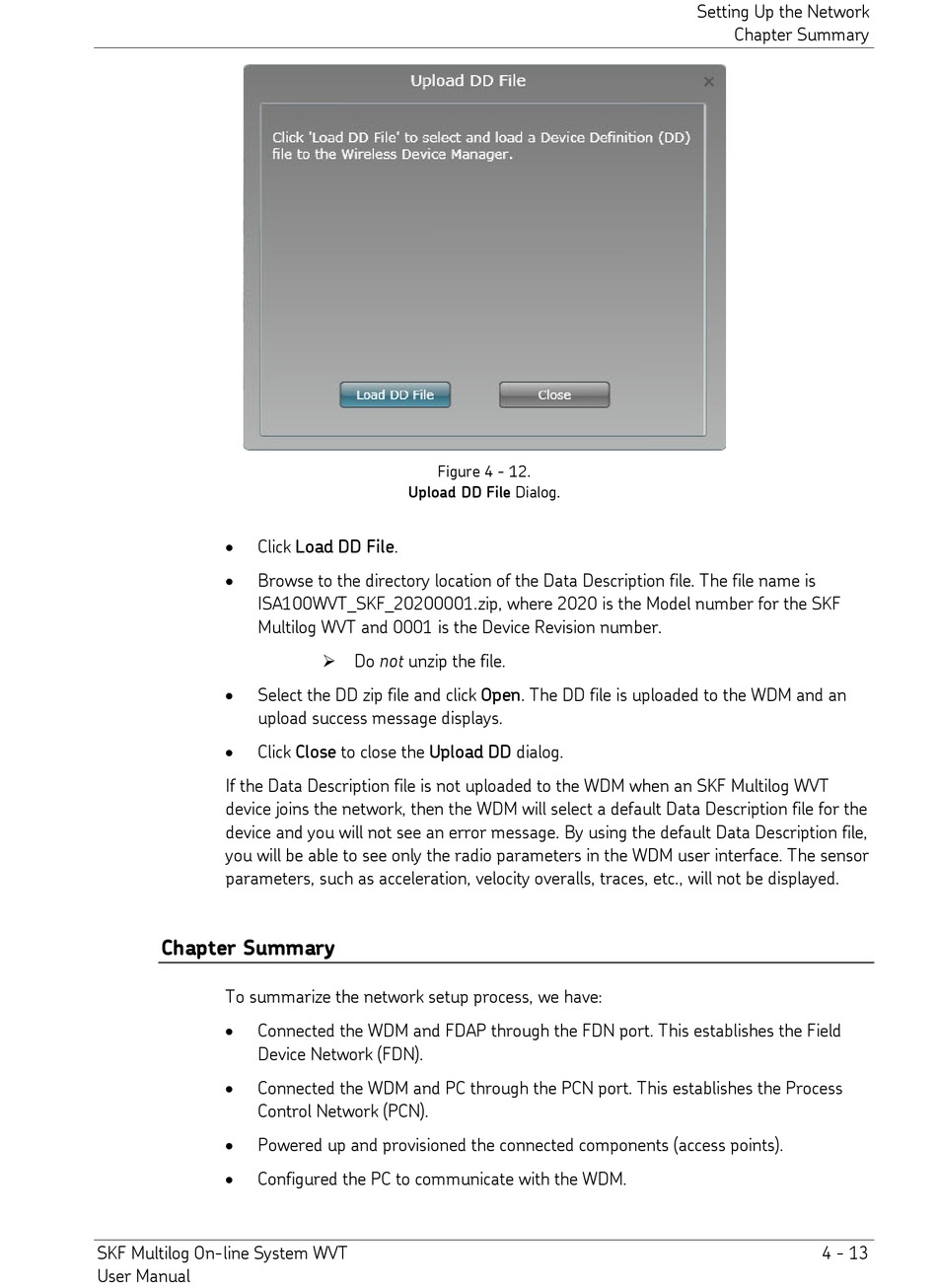

Figure 4 - 12.
Upload DD File Dialog.
 Do not unzip the file.
