SKF On-line System WVT User Manual page 147

The Namur tacho provides an output signal whenever an event passes under the sensor
tip. The event is typically a notch or keyway that passes under the sensor; alternatively,
the sensor will produce a signal whenever a key or projection passes under the tip. An
LED installed at the rear of the sensor flashes when the event is sensed.
SKF Multilog On-line System WVT
User Manual
Speed Sensor / Namur Tachometer Installation Instructions

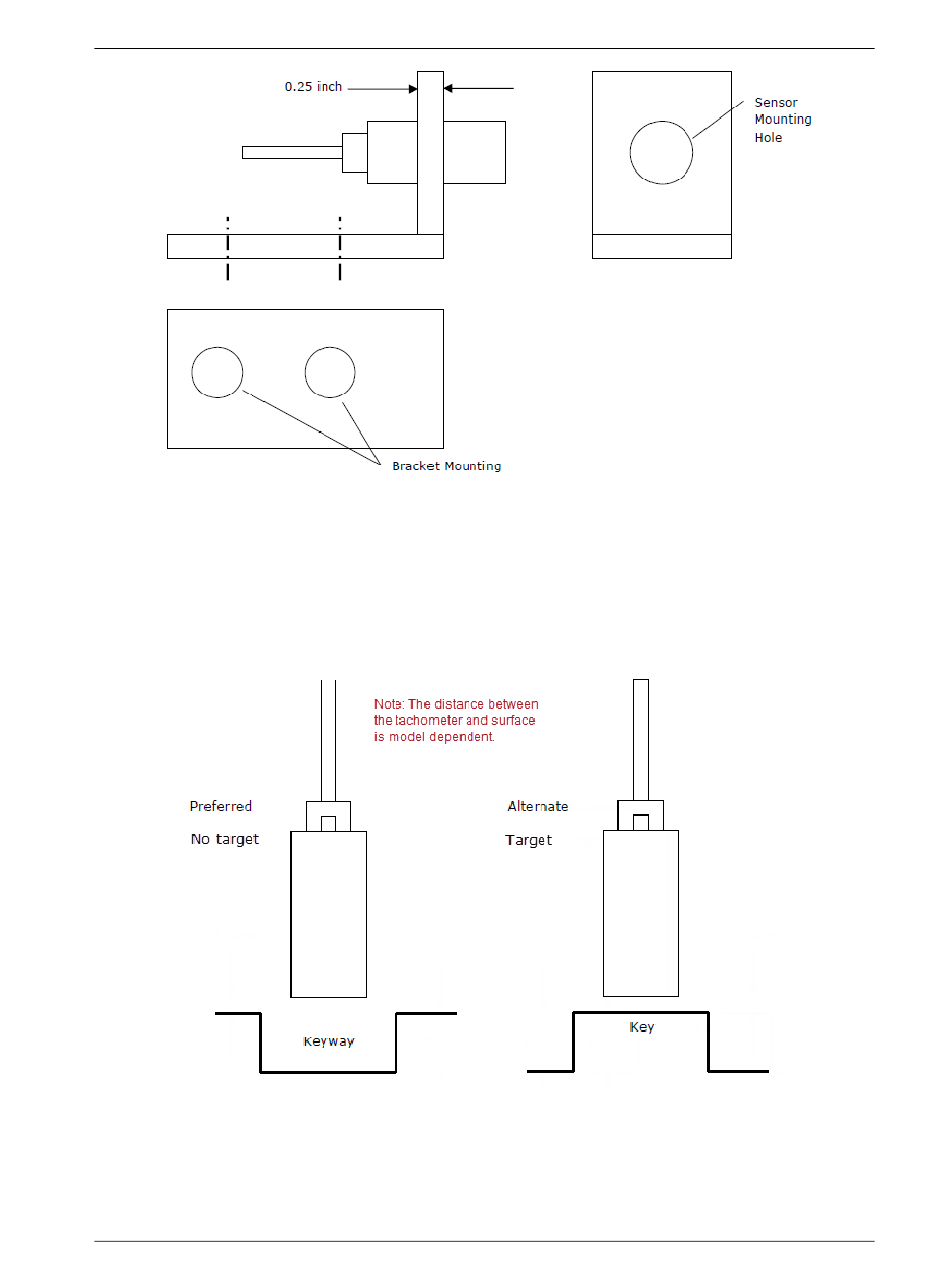

Figure A - 7.
Mounting Bracket for Namur Tacho.
Figure A - 8.
Namur Tacho Mounting.
Installing the Sensors
A - 7
