Detailed procedures for installing the CMSS 2350T-D2 sensors and the Namur tacho
are provided below. The topics include:
•

Vibration Sensor Mounting

• Sensor Installation Instructions
• Mounting Pad and Sensor Installation Instructions
• Speed Sensor/Namur Tachometer Installation Instructions
• The Sensor Mounting Toolkit
Vibration Sensor Mounting
Select the sensor location. For dryer bearing sensors, this is usually at the bottom
quadrant of the bearing in the load zone, 90° to 120° either side of the bottom dead
center, as shown in the figure below. When selecting the sensor location, keep in mind
the easiest and most efficient cable routing and the need for future maintenance where
sensors and/or cabling may have to be moved or removed.
SKF Multilog On-line System WVT
User Manual

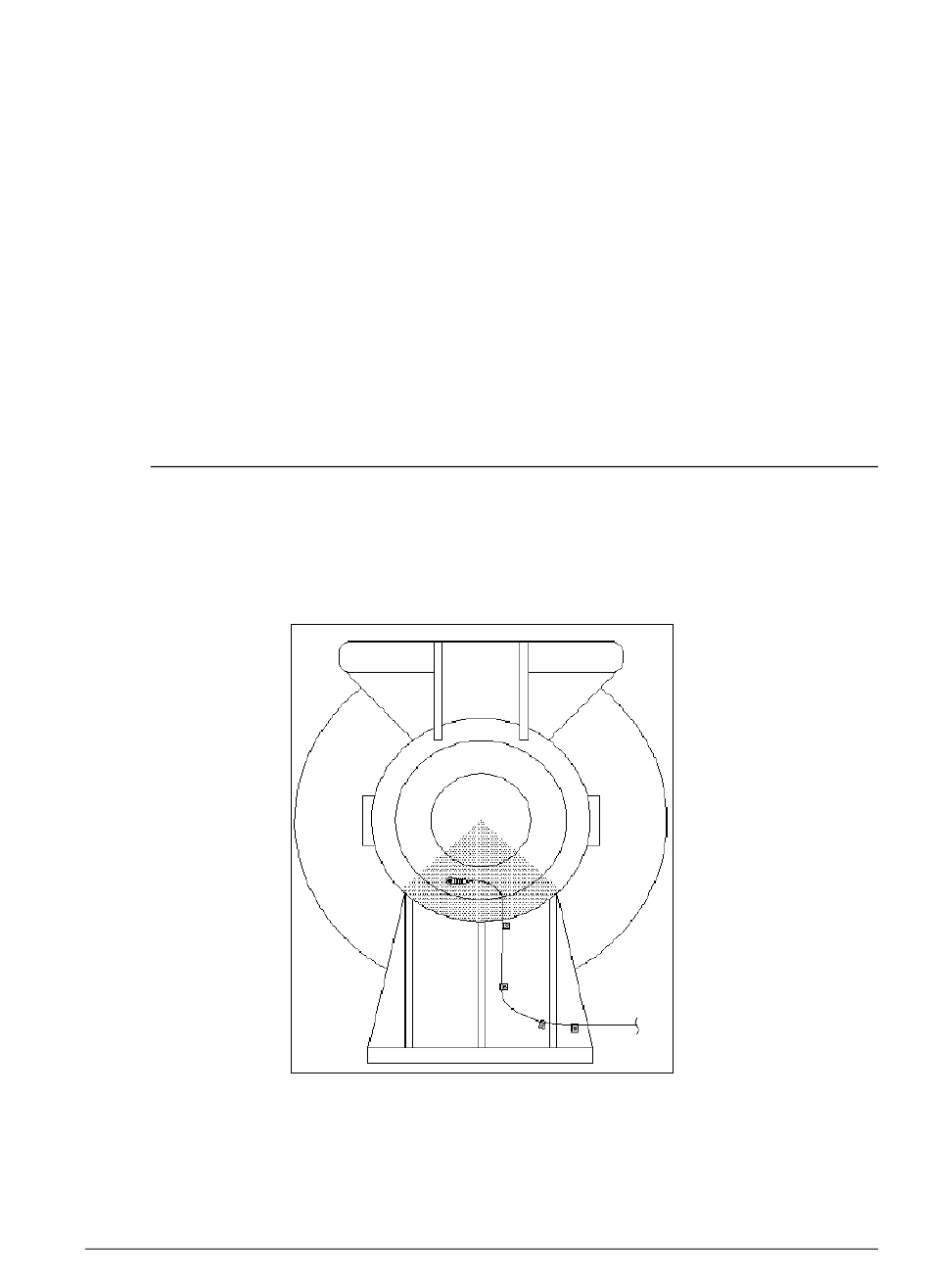

Figure A - 1.
Example of Sensor Location and Bottom Dead Center.
