Installing the Sensors

Mounting Pad and Sensor Installation Instructions

Mounting Pad and Sensor Installation Instructions
1. Drill pilot hole (the drill bit is contained in the optional mounting toolkit).
Use #3 drill bit x 0.35 in. deep for ¼-28.
Use 6.7 mm drill bit x 8.9 mm deep for M8 adapter.
2. Using piloted endmill, make 1 in. (2.5 cm) diameter spot face. Use cutting fluid and
slow speed to extend endmill life.
3. Remove sensor mounting screw from sensor to use as a handhold. Install mounting
screw onto mounting pad. Thread screw to full depth of mounting pad to prevent
adhesive entry into pad threads.
4. Using oil free cleaner, thoroughly clean machine surface and mounting pad. Avoid
contamination. Do not touch any surfaces after cleaning.
5. Thoroughly mix acrylic adhesive.
6. Apply generous amount to mounting pad bottom.
7. Place mounting pad onto spot face; excess adhesive will ooze around pad
perimeter.
A - 4

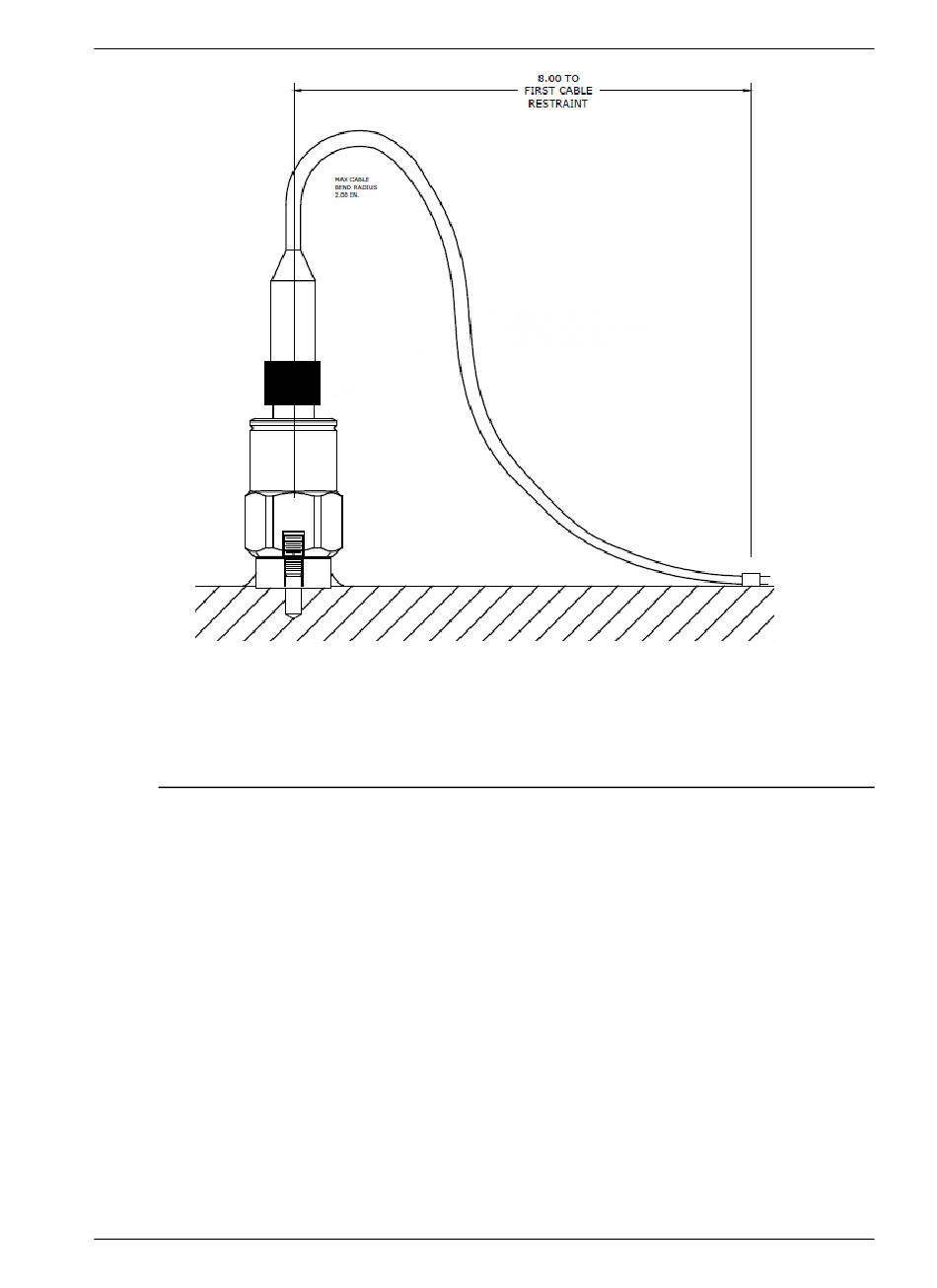

Figure A - 4.
Properly Seated Connector and First Cable Restraint.
