SKF On-line System WVT User Manual page 98

DataController and XML File Editor
Global Configuration (GlobalConfig)
Remember to click the SaveChanges button on the right of the tab to save any entries
and changes you made. You can do this when you have completed your entries on the
entire tab or save your changes from time to time while you are working.
DataController Settings
In the upper left of the tab, the DataController Settings are grouped together.
To enter the DataController Settings:
• Select a LoggingLevel number to determine the log information for debugging and
troubleshooting. The codes for different levels and their definitions are provided
below. The default value is 3 for Error.
• Select the MaxLogFiles number (1 to 10) to specify the maximum number of back
up log files to be stored, depending on the memory availability. The storage space
allowed is not more than 16 MB for each file.
Example 1: For MaxLogFiles = 2, when the DataControllerLog.txt file exceeds
16 MB limit, it will be renamed to DataControllerLog.txt.1 file and a new empty
DataControllerLog.txt file will be created. If the DataControllerLog.txt.1 file already
exists, it will be renamed to DataControllerLog.txt.2 file. DataControllerLog.txt.2 is
the oldest file and DataControllerLog.txt is the newest file.
Example 2: For MaxLogFiles = 4, when the DataControllerLog.txt file exceeds
16 MB limit, it will be renamed to DataControllerLog.txt.1 file and a new
DataControllerLog.txt file will be created. Each succeeding time the
DataControllerLog.txt file exceeds allowed storage space, the file names will
7 - 6

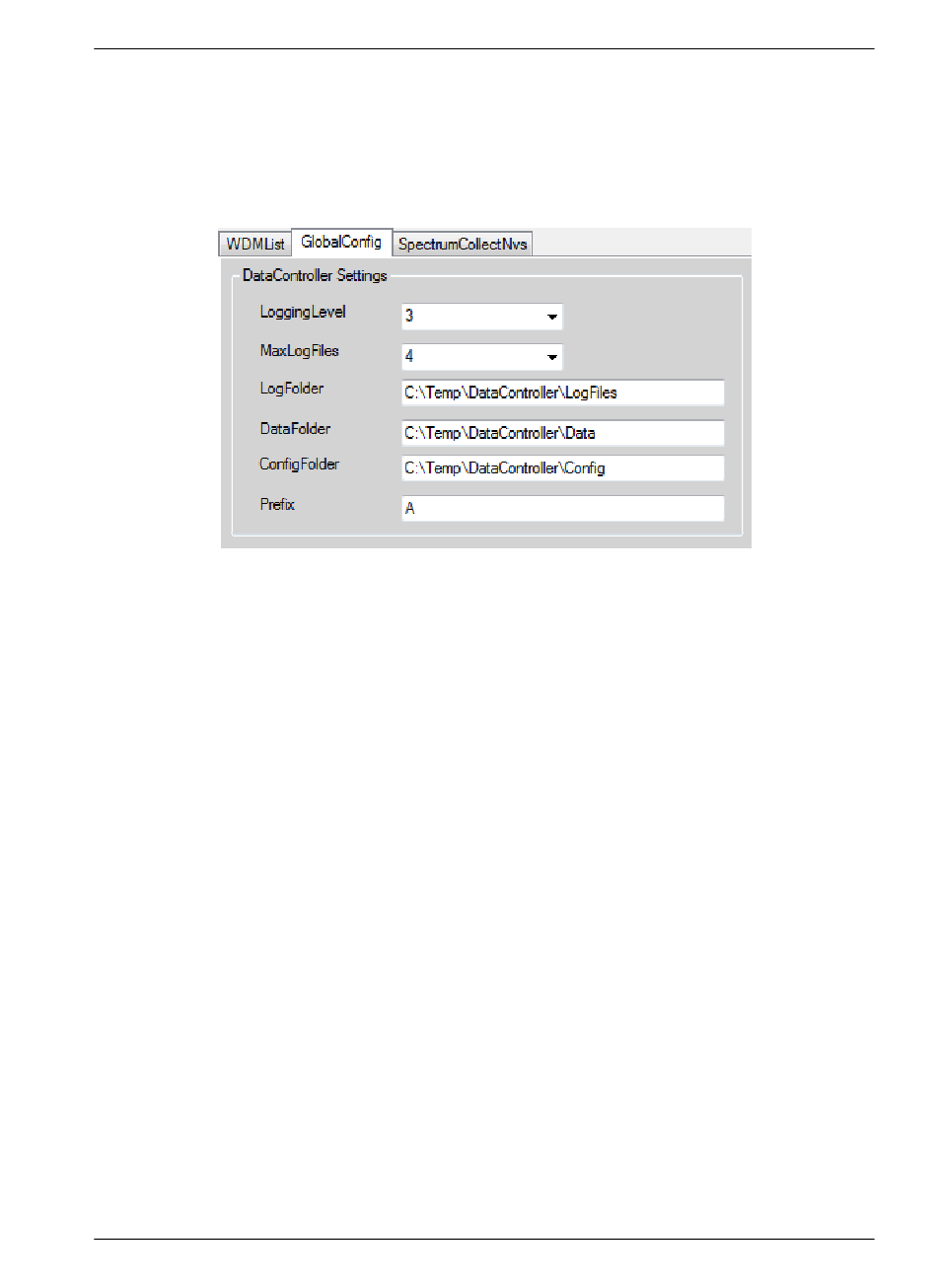

Figure 7 - 7.
DataController Settings.
1 = None
–
– 2 = Exception
– 3 = Error
– 4 = Info
– 5 = Debug
SKF Multilog On-line System WVT
User Manual
