DataController and XML File Editor

WDMList

WDMList
DataController needs to know the IP address and the TCP Port number of each WDM in
order to communicate with them over Ethernet to the PCN port of each WDM. The file
WDMList.xml contains the list of WDMs, their IP addresses and the TCP port numbers,
which will be parsed by DataController during service startup and communication with
the WDMs.
IMPORTANT: The IP address and TCP Port entered in WDMList must match
exactly the PCN IP address and the the Gateway Client Interface Server TCP Port in
the WDM configuration.
7 - 2

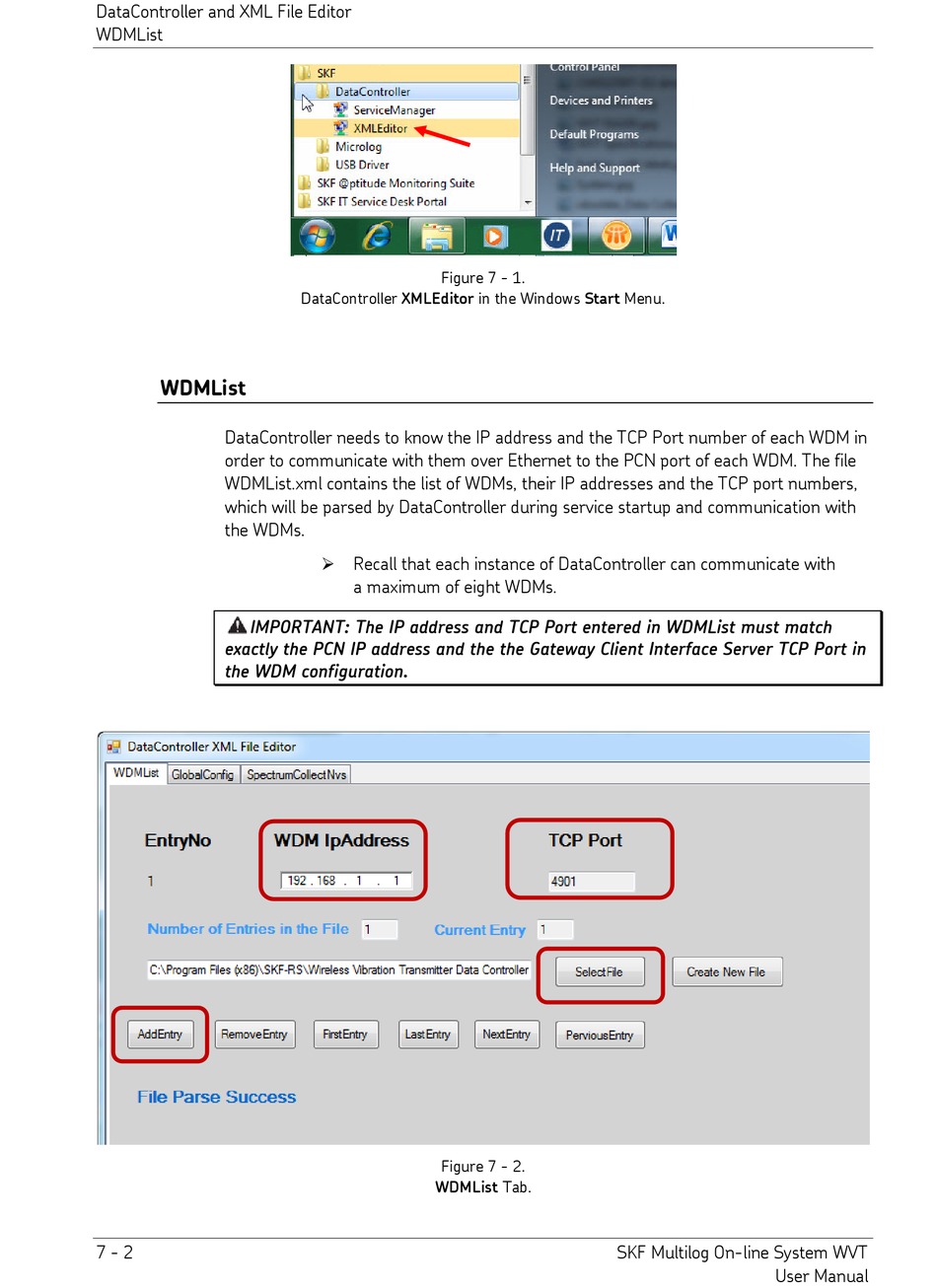

Figure 7 - 1.
DataController XMLEditor in the Windows Start Menu.
 Recall that each instance of DataController can communicate with
a maximum of eight WDMs.
Figure 7 - 2.
WDMList Tab.
