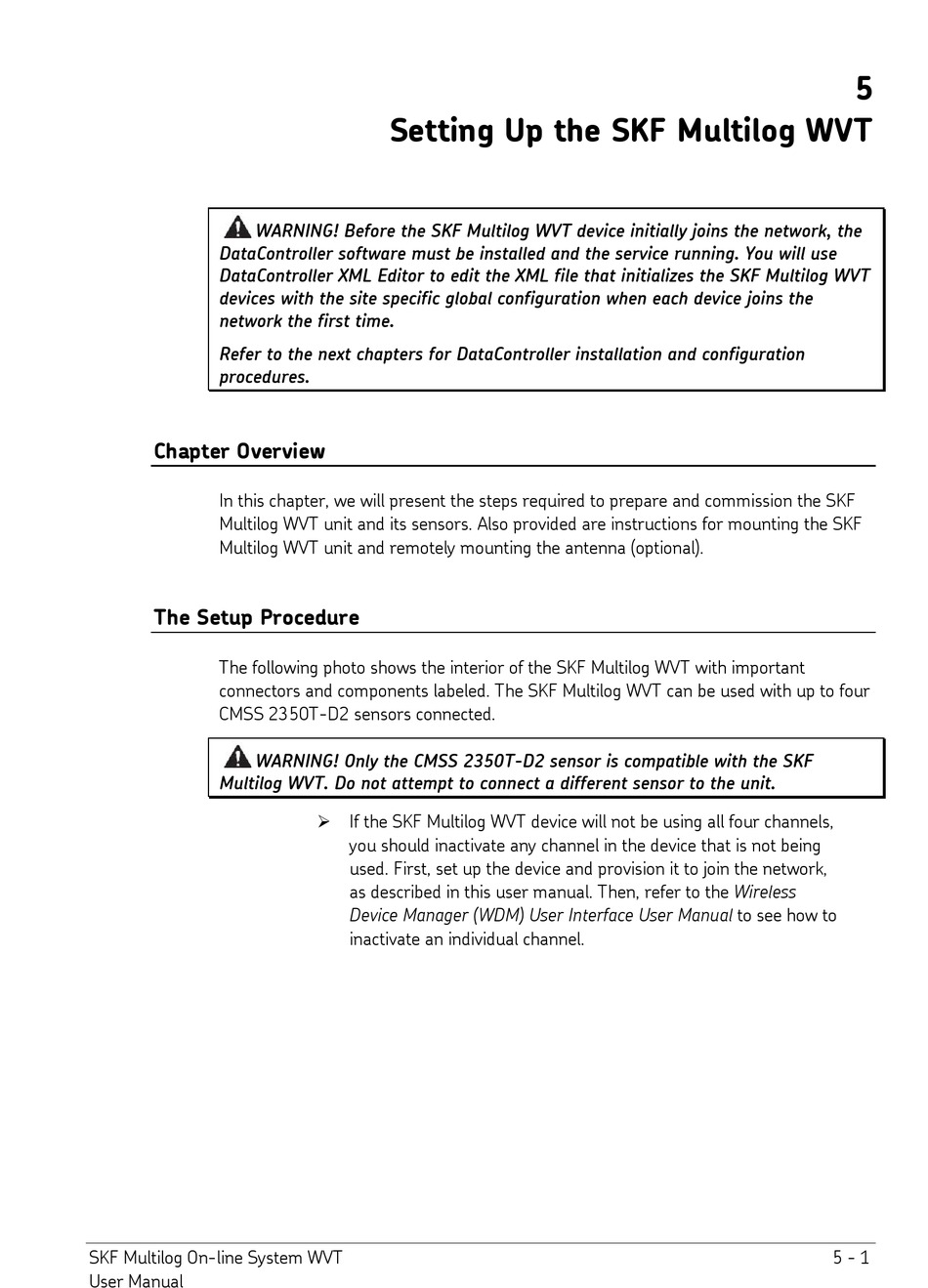

Setting Up The Skf Multilog Wvt; Chapter Overview; The Setup Procedure - SKF On-line System WVT User Manual

Table of Contents

WARNING! Before the SKF Multilog WVT device initially joins the network, the

DataController software must be installed and the service running. You will use

DataController XML Editor to edit the XML file that initializes the SKF Multilog WVT

devices with the site specific global configuration when each device joins the

network the first time.

Refer to the next chapters for DataController installation and configuration

procedures.

In this chapter, we will present the steps required to prepare and commission the SKF

Multilog WVT unit and its sensors. Also provided are instructions for mounting the SKF

Multilog WVT unit and remotely mounting the antenna (optional).

The following photo shows the interior of the SKF Multilog WVT with important

connectors and components labeled. The SKF Multilog WVT can be used with up to four

CMSS 2350T-D2 sensors connected.

WARNING! Only the CMSS 2350T-D2 sensor is compatible with the SKF

Multilog WVT. Do not attempt to connect a different sensor to the unit.

SKF Multilog On-line System WVT

User Manual

Setting Up the SKF Multilog WVT

 If the SKF Multilog WVT device will not be using all four channels,

you should inactivate any channel in the device that is not being

used. First, set up the device and provision it to join the network,

as described in this user manual. Then, refer to the Wireless

Device Manager (WDM) User Interface User Manual to see how to

inactivate an individual channel.

5 - 1
