Setting Up the SKF Multilog WVT
The Setup Procedure
• Connect to an external power source in the range of 10 to 30 VDC if you are not
using battery power.
• Connect the tacho as shown, using either the Namur or the isolated connector.
• Connect each sensor to the SKF Multilog WVT sensor inputs for the appropriate
channel. As shown below, the order of the wire colors for each channel, from left to
right, are:
–
–
–
–
5 - 2

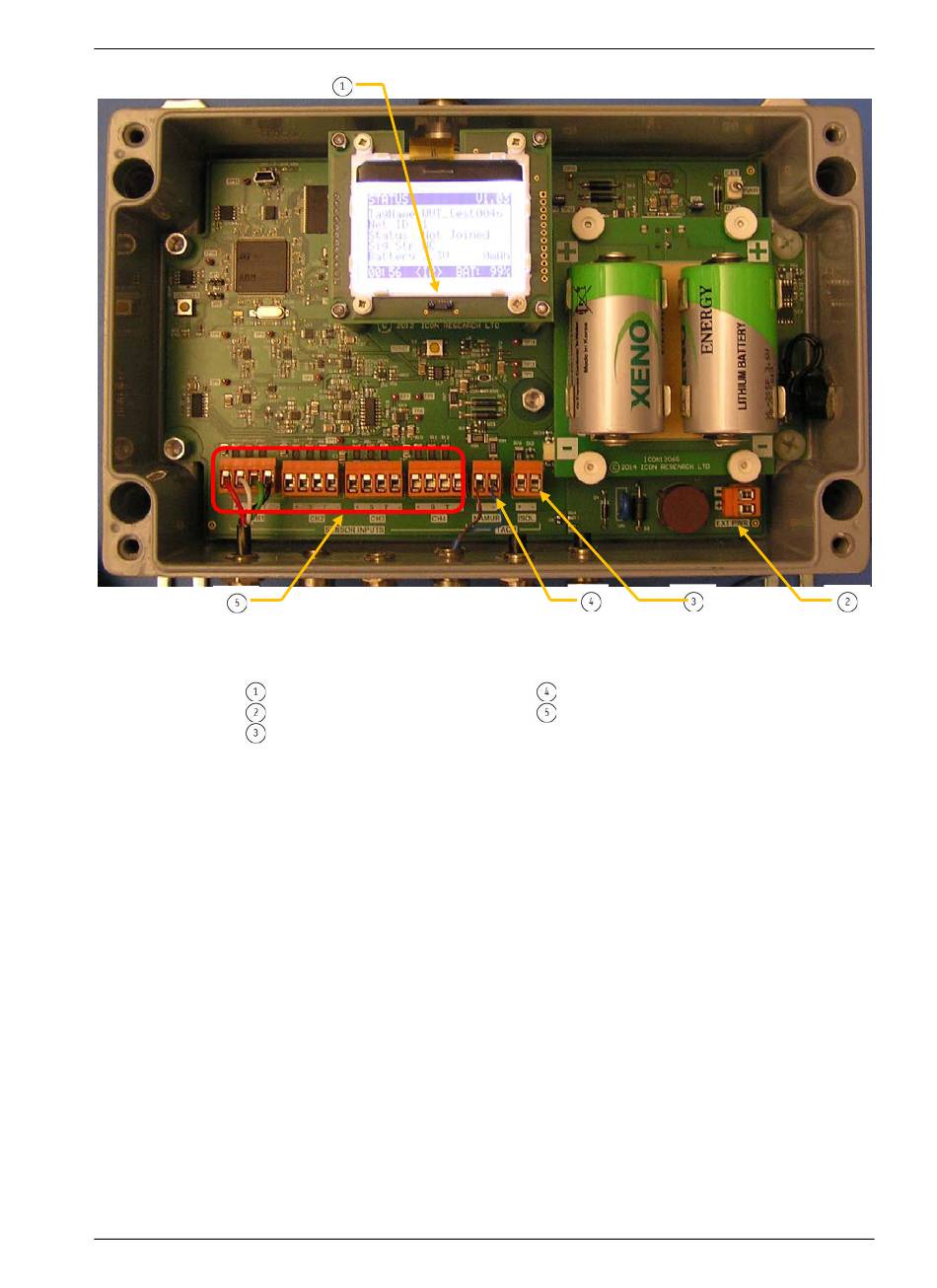

Figure 5 - 1.
SKF Multilog WVT Setup.
IrDA port for provisioning
External power connector
Isolated tacho connector
+ Pin: Power (red)
S Pin: Signal, acceleration (1.5 V BOV) (white)
T Pin: Temperature (green)
- Pin: Common (black)
Namur tacho connector
Four vibration /temp dual sensor
connectors
