Mounting and Dimensions

WARNING! Mount the SKF Multilog WVT at least 2 m (6.5 ft.) away from the
nearest SKF Multilog WVT or FDAP. Mounting the units too close together may
result in dropped network links or possible failure of the radio card.
• This product is designed to mount on a flat surface.
• There should be enough clearance to access the push button on the right side.
• Replace unused glands with the blanking plugs provided, according to the
hazardous area installation instructions.
• Tighten glands and blanking plugs to 4 N-m (35 lb.-in.) torque to maintain the IP
rating.
SKF Multilog On-line System WVT
User Manual

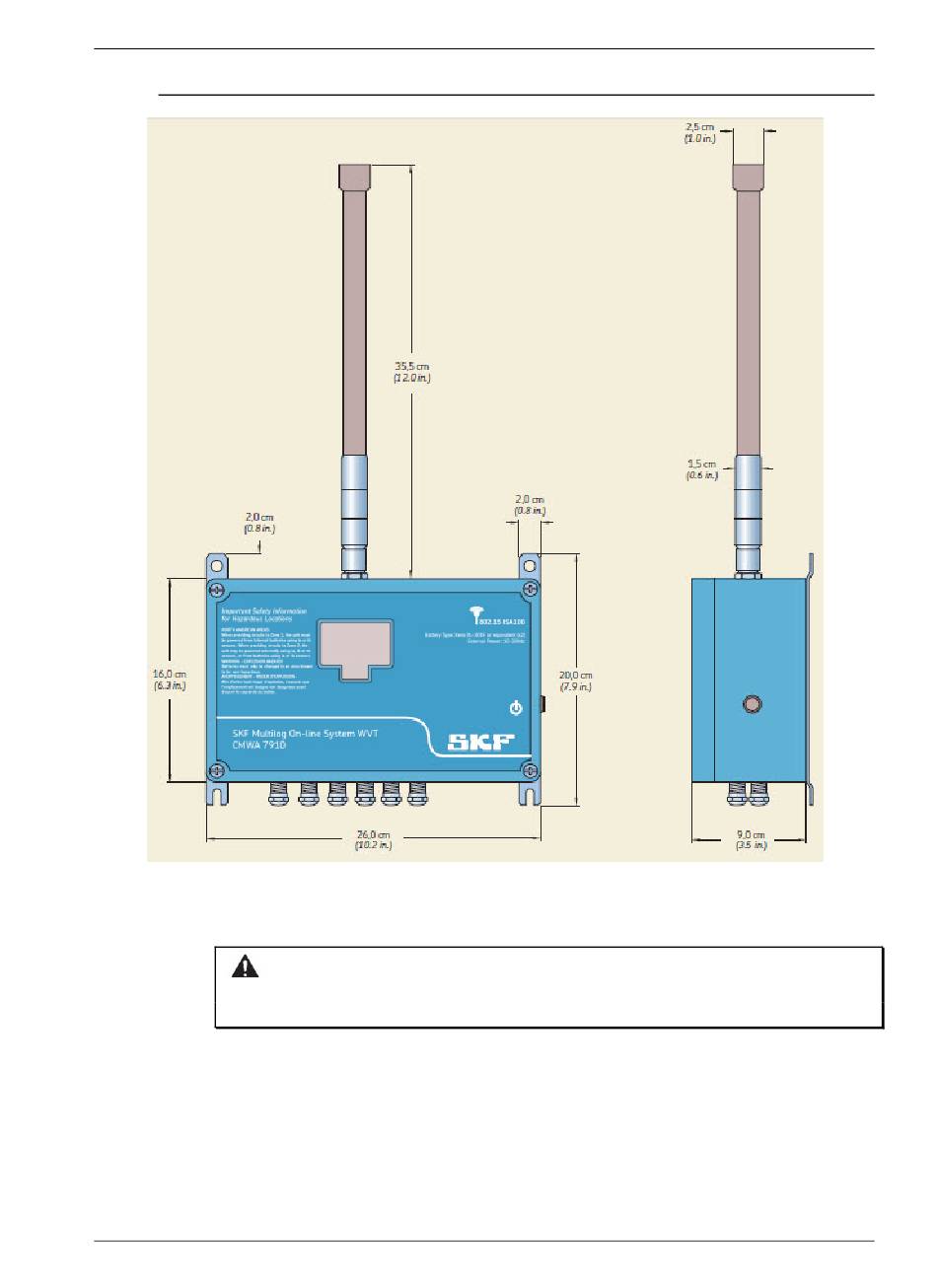

Figure 5 - 6.
SKF Multilog WVT Dimensions.
