Mounting the External Antenna

Mounting the External Antenna
The antenna can be mounted remotely with an additional coaxial cable (sold separately)
and the optional SKF Remote Antenna Mounting Kit P/N CMAC 7820-MK, or your own
hardware.
Additional coaxial cables are available in three different lengths:
1 m (3.3 ft.) P/N CMAC 7820-EXTCBL-1M
•
• Or 3 m (9.8 ft.) P/N CMAC 7820-EXTCBL-3M
• Or 10 m (32.8 ft.) P/N CMAC 7820-EXTCBL-10M
To facilitate mounting, the SKF Remote Antenna Mounting Kit P/N CMAC 7820-MK
contains the following items:
• 1 ea Antenna Mounting Bracket (P/N 32296200)
• 2 ea U-bolt Clamps (P/N 10981400)
The following figure shows an external antenna mounted remotely to a pole.
5 - 10
 Cable connector types: one end is N Type Crimp Plug Nickel
(male) and the other end is N Type Crimp Jack Nickel (female)
 Cable Attenuation: 0.42 dB/m at 2.5 GHz

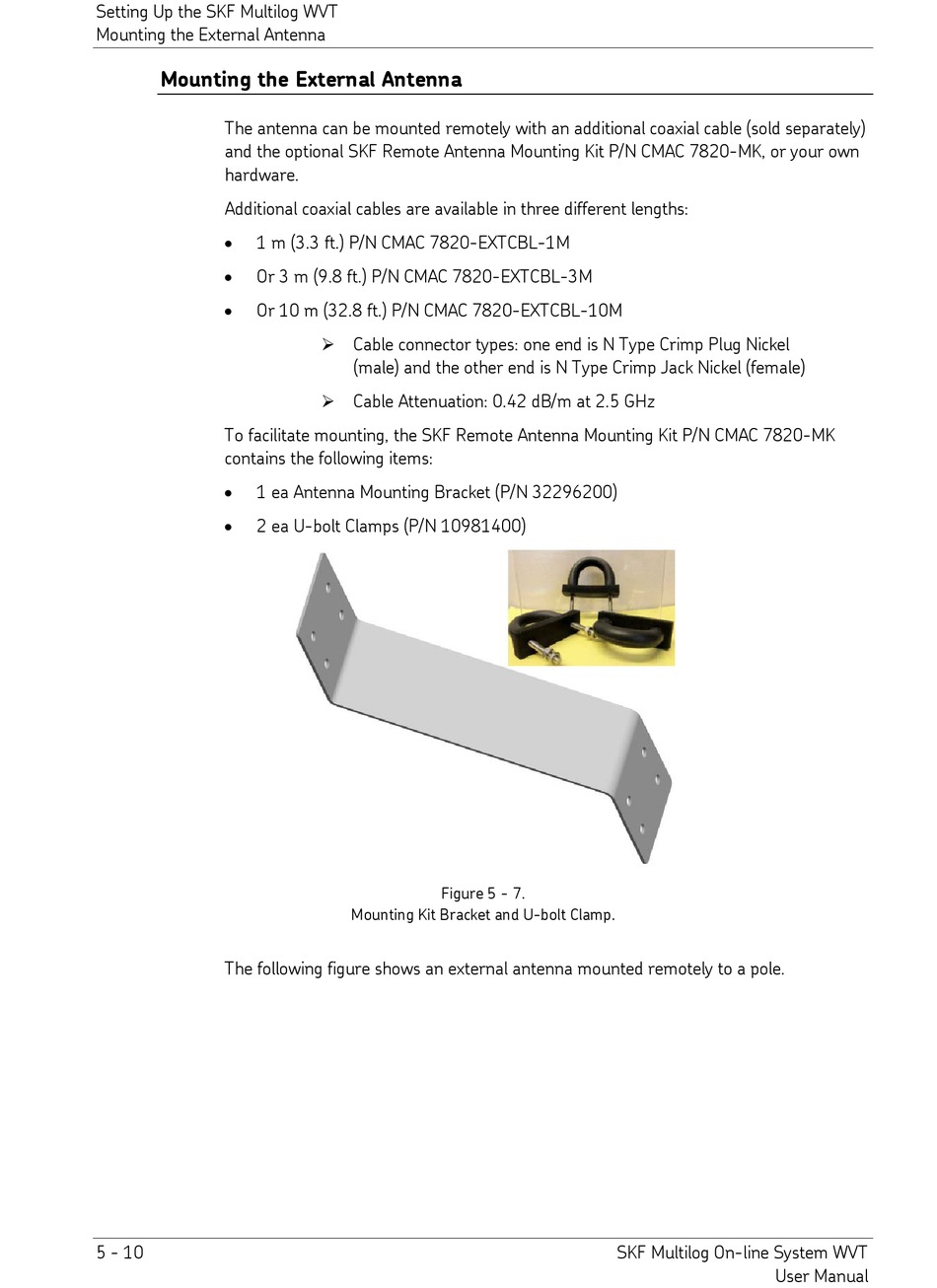

Figure 5 - 7.
Mounting Kit Bracket and U-bolt Clamp.
