• Select the BeaSpectrumScale. Peak To Peak is the default setting for the bearing
spectrum. (SKF uses Peak to Peak for the bearing spectrum scale.)
Channel Settings – Trace Field Settings
The lower half of the GlobalConfig tab displays the Channel Settings.
To enter the Channel Settings (left side of the GlobalConfig tab):
• In Select Channel, specify which channel number, 1 through 4, you are
configuring.
• Select the Trend Values Enabled checkboxes to enable the periodic collection of
the required trend values by the selected channel. The available trend values are
Acceleration, Velocity, Bearing, Temperature and Speed.
• BiasCheckInterval determines how frequently the bias voltage is sampled. Select
the interval between the times when the selected channel will take the bias voltage
sample: OnEachTrend (the default), OnceADay or Never.
• Enter Sensitivity mv/g. This is the accelerometer sensitivity in millivolts. The
default is 50 mv/g for the dedicated CMSS 2350T-D2 sensor.
• Enter BiasCheckLowLimit Volts. This is the lower threshold for the bias voltage
alert.
• Enter BiasCheckHighLimit Volts. This is the upper threshold for the bias voltage
alert.
• Select the Acceleration Gain 1 or 10. (The default is 1.)
• Select the Velocity Gain 1 or 10. (The default is 1.)
SKF Multilog On-line System WVT
User Manual

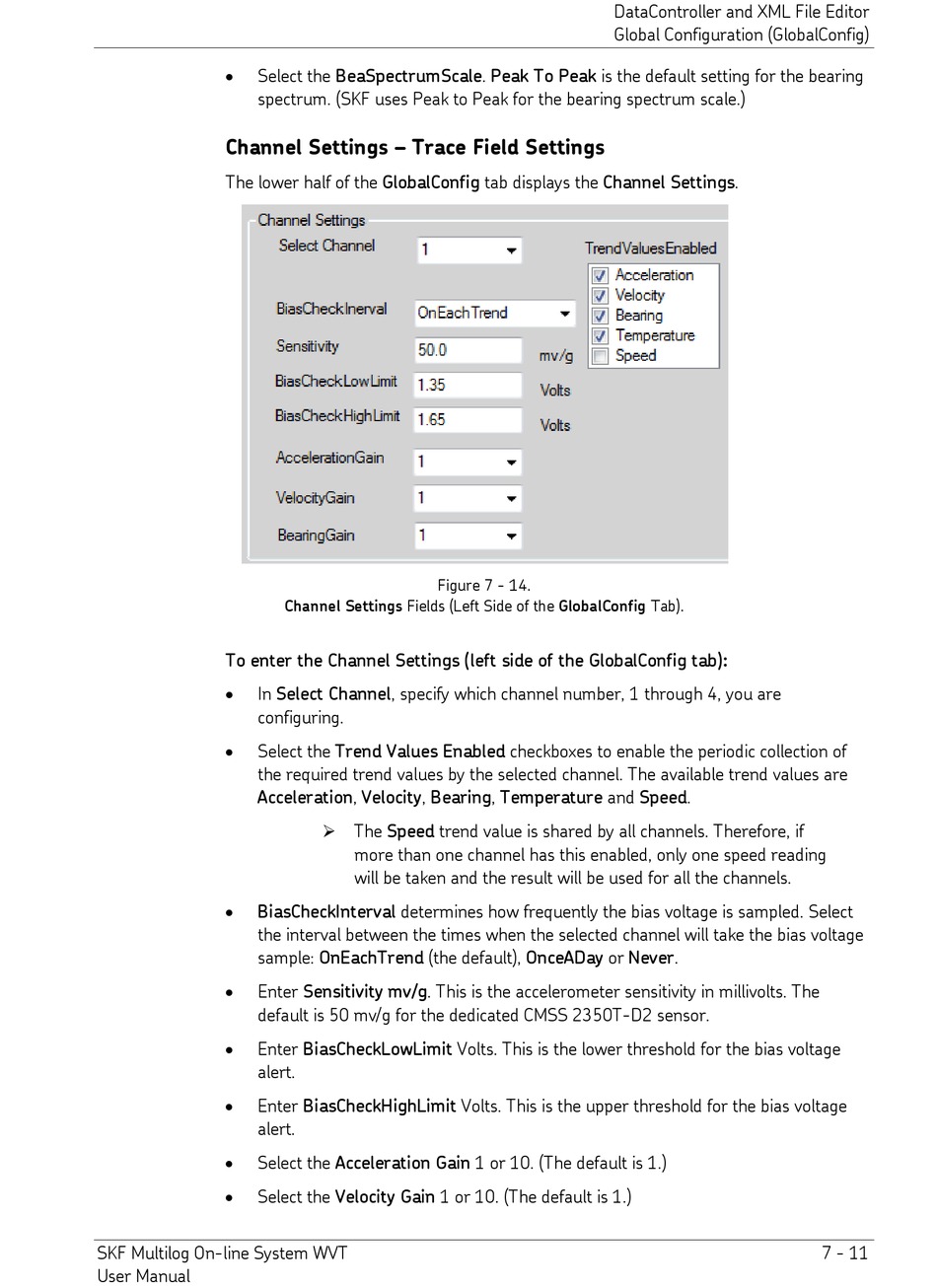

Figure 7 - 14.
Channel Settings Fields (Left Side of the GlobalConfig Tab).
 The Speed trend value is shared by all channels. Therefore, if
more than one channel has this enabled, only one speed reading
will be taken and the result will be used for all the channels.
