GlobalConfig Tab Overview
The GlobalConfig tab provides many important fields and functions. This user manual
presents them by each major section: DataController Settings, Device Settings and
Channel Settings.
To begin editing the GlobalConfig tab:
• Click the GlobalConfig tab to open it.
• Click the SelectFile button at the bottom of the tab to locate and open the desired
GlobalConfig.xml file to define the global default SKF Multilog WVT configuration.
Edits made within the tab will update the selected xml file. Again, the message "File
Parse Success" means that the file was read successfully.
SKF Multilog On-line System WVT
User Manual

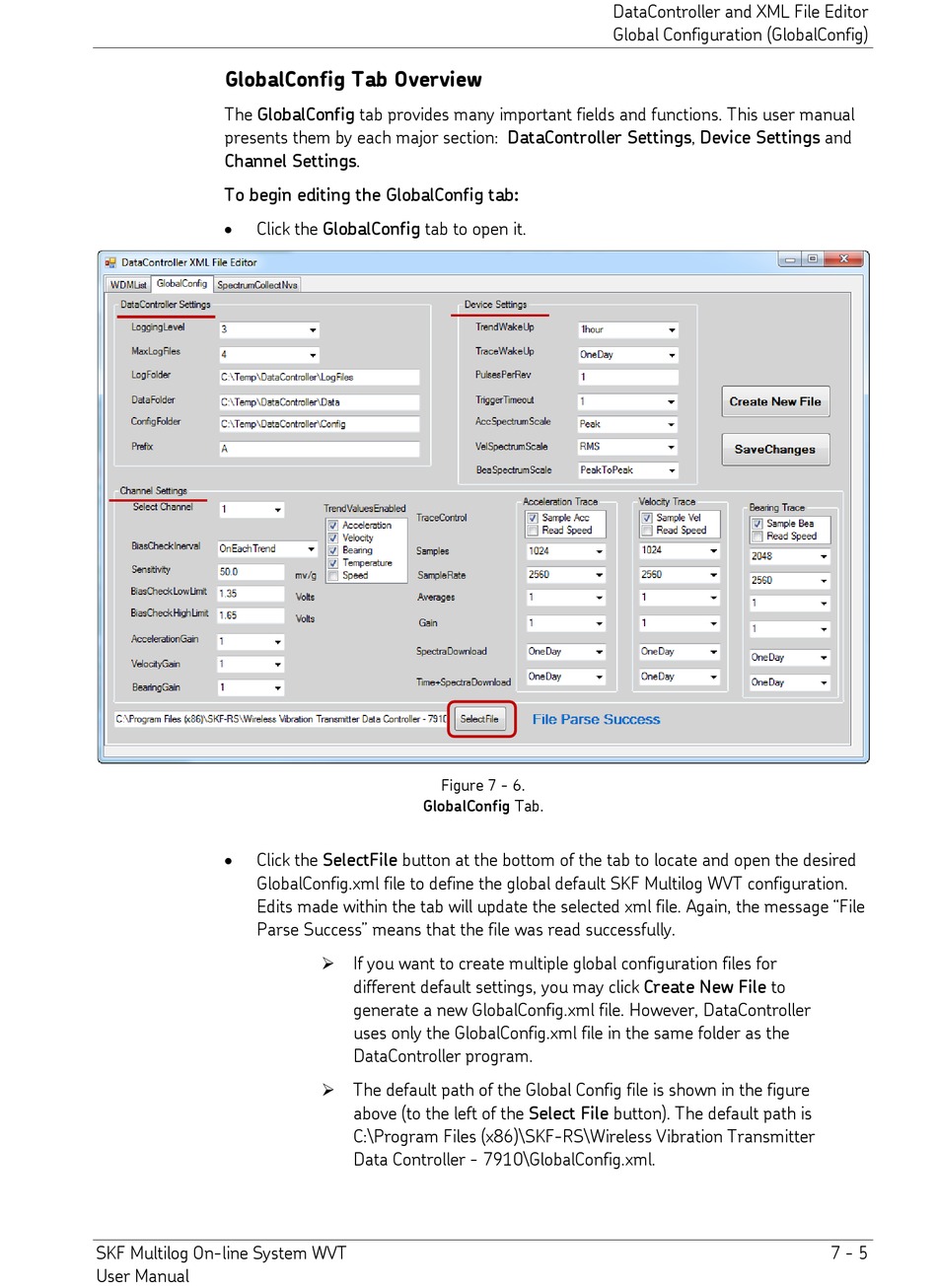

Figure 7 - 6.
GlobalConfig Tab.
 If you want to create multiple global configuration files for
different default settings, you may click Create New File to
generate a new GlobalConfig.xml file. However, DataController
uses only the GlobalConfig.xml file in the same folder as the
DataController program.
 The default path of the Global Config file is shown in the figure
above (to the left of the Select File button). The default path is
C:\Program Files (x86)\SKF-RS\Wireless Vibration Transmitter
Data Controller - 7910\GlobalConfig.xml.
