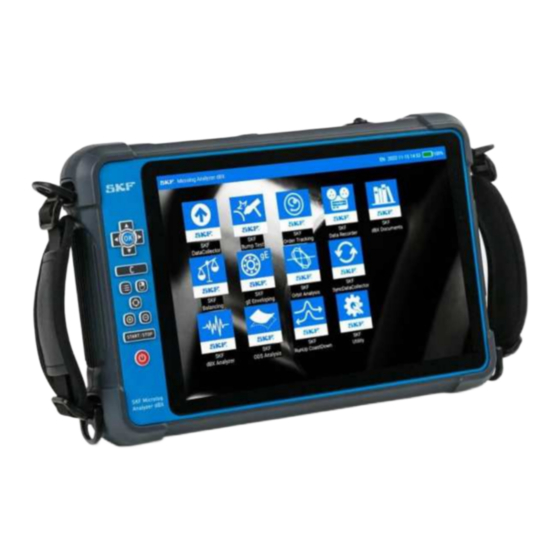

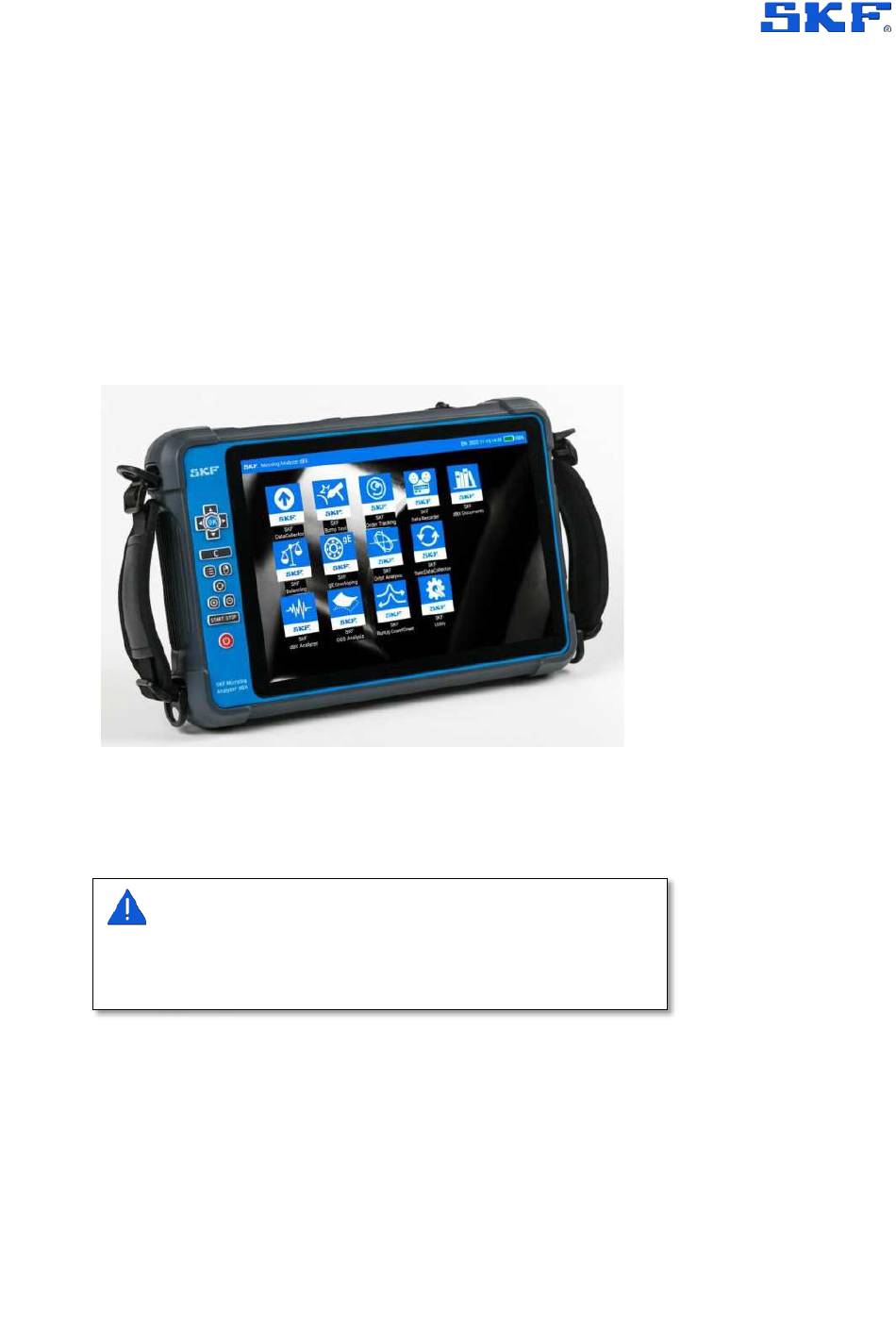

SKF Microlog Analyzer dBX
Quick Start Guide
Part Number 15V-090-00102-200
Revision A – April 2023
Read this manual carefully before using the product. Failure
to follow the instructions and safety precautions in this manual can
result in serious injury, damage to the product or incorrect
readings. Keep this manual in a safe location for future reference.
Copyright © 2023 by SKF Group
All rights reserved.
SKF Sverige AB
Ålgatan 10D, 973 34 Luleå, Sweden
Telephone: +46 (0) 31 337 10 00
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SKF 15V-090-00102-200
Summary of Contents for SKF 15V-090-00102-200
- Page 1 Keep this manual in a safe location for future reference. Copyright © 2023 by SKF Group All rights reserved. SKF Sverige AB Ålgatan 10D, 973 34 Luleå, Sweden...
- Page 2 SKF reserves the right to alter any part of this publication without prior notice. Product Registration...
-
Page 3: Table Of Contents
Electrical waste ................21 Calibration and repair ..............22 Appendix A Limited Warranty ............23 Appendix B End User License Agreement ........24 Appendix C Federal Communications Commission Interface Statement..................27 SKF Microlog Analyzer dBX 3 (27) Quick Start Guide Revision A... -
Page 4: Safety Messages
• Always obtain first aid or medical attention immediately after sustaining an injury. Never neglect an injury, no matter how superficial it initially seems. 4 (27) SKF Microlog Analyzer dBX Quick Start Guide Revision A... -
Page 5: Device Safety
• Do not attempt to open the device (except for changing batteries). • Use only accessories recommended or provided by SKF or the manufacturer. • Connect only compatible USB devices to USB Port A on the Microlog Analyzer dBX. Devices that are not USB 2.0 or later compliant may damage the USB Port. -
Page 6: Avoid Battery Compartment Exposure
Avoid battery compartment exposure 1.7 Avoid battery compartment exposure Do not open the battery compartment in a hazardous area, or in locations where contact with water or other contaminants may occur. 6 (27) SKF Microlog Analyzer dBX Quick Start Guide Revision A... -
Page 7: Product Description
Microlog dBX Vibration Analyser • Application modules installed on the Microlog Vibration Analyser • A host computer with SKF @ptitude Analyst software and the TCT.dBX thin client transfer utility Note: If the SKF @ptitude Analyst software is hosted on the cloud, only TCT.dBX is required on the host computer, along with the end point... -
Page 8: Front View
The graphic below locates and identifies Microlog Analyzer dBX keypad functions. The keypad uses backlight to enhance the visibility of the keypad in various brightness levels. Microlog Analyzer dBX – keypad Figure 2 8 (27) SKF Microlog Analyzer dBX Quick Start Guide Revision A... - Page 9 8. Right click key – Opens the right-click menu 9. Zoom out key – Zoom out a plot or user define 10. Start/Stop key – Use this key to start or stop a measurement SKF Microlog Analyzer dBX 9 (27) Quick Start Guide...
-
Page 10: Top View
Important! Microlog Analyzer dBX connectors use a locking mechanism for secure connections. To disconnect cables from the Microlog’s connectors, pull gently on the lower portion of the connector as illustrated below. Figure 4 How to disconnect the connectors 10 (27) SKF Microlog Analyzer dBX Quick Start Guide Revision A... - Page 11 (usually a tachometer). This connector is also used for external power supply Figure 6 TRIG/PWR (Fischer DBPE 103A-057-130) 1. EXT-DC-IN 5. EXT-TRIG-AUX 2. NC 6. NC 3. NC 7. +5 V-Tacho-Out 4. Digital Gnd SKF Microlog Analyzer dBX 11 (27) Quick Start Guide Revision A...
-
Page 12: Side View
Note: Connect only compatible USB devices to USB Port A. For more information, refer to Device safety. For more information, refer to the SKF Microlog Analyzer dBX User Manual. 2.4 Side view Microlog Analyzer dBX – side view Figure 7 1. -
Page 13: Rear View
1. Camera 5. Cover and battery 2. LED flash compartment 1 3. RFID reader 6. Cover and battery 4. Screw hole for tripod stand compartment 2 7. Foldable stand SKF Microlog Analyzer dBX 13 (27) Quick Start Guide Revision A... -
Page 14: Battery Installation
PRODUCT DESCRIPTION Battery installation 2.6 Battery installation Figure 9 Battery installation - step 1 Battery installation – step 2 Figure 10 14 (27) SKF Microlog Analyzer dBX Quick Start Guide Revision A... - Page 15 PRODUCT DESCRIPTION Battery installation Battery installation – step 3 Figure 11 Battery installation – step 4 Figure 12 SKF Microlog Analyzer dBX 15 (27) Quick Start Guide Revision A...
-
Page 16: Turning On The Microlog Analyzer Dbx
At the top right corner, you can see the language code, date and time, and the battery indicator. To run an application, using the navigation keys, select an icon and press OK or double tap the respective icon. 16 (27) SKF Microlog Analyzer dBX Quick Start Guide Revision A... -
Page 17: Charging The Battery
The device casing gets a bit warmer during charging. Figure 15 Connect charger You can extend the operational hours in the field by replacing the battery with a backup one. SKF Microlog Analyzer dBX 17 (27) Quick Start Guide Revision A... -
Page 18: Product Specifications
Batteries 14.4 V, 2270 mA, 32.7 W PC Interface USB 3.1 A type USB Connector Electrical Rating (battery) 12 V, 5 A / 60 W IP Rating IP 65 18 (27) SKF Microlog Analyzer dBX Quick Start Guide Revision A... -
Page 19: Certifications
Korea Communication Commission Restriction of Hazardous Substances The Regulatory Compliance Mark (RCM) UK Conformity Assessed (UKCA) US CEC Commission for Environmental Cooperation Federal Communications Commission California Energy Commission Compliant SKF Microlog Analyzer dBX 19 (27) Quick Start Guide Revision A... -
Page 20: Product Label
PRODUCT SPECIFICATIONS Product label 3.3 Product label Microlog Analyzer dBX CMVA 90 – product label Figure 16 20 (27) SKF Microlog Analyzer dBX Quick Start Guide Revision A... -
Page 21: Electrical Waste
Electrical waste and electrical equipment should be recycled as specified by the WEEE-directive and not be placed in the general refuse. Product should be sent to an approved recycling centre for safe recycling, recovery, reuse or returned to SKF for proper recycling. SKF Sverige AB Ålgatan 10D... -
Page 22: Calibration And Repair
It is recommended that the Microlog Analyzer dBX is calibrated every 12 months, with the first calibration due 12 months from the first date of in-service use. SKF can provide calibration and repair/replacement of Microlog Analyzer dBX if needed. Contact your nearest SKF... -
Page 23: Appendix A Limited Warranty
APPENDIX A Limited Warranty Appendix A Limited Warranty SKF – Limited Warranty Download the latest version from skf.com SKF Microlog Analyzer dBX 23 (27) Quick Start Guide Revision A... -
Page 24: Appendix B End User License Agreement
SKF, or any of its group companies, shall not be liable for any direct, incidental, consequential, or indirect damages of any kind arising out of your access to, or use of the information or software made available in this mobile application. - Page 25 All trademarks, brand names, photos and corporate logos displayed in the mobile application are the property of SKF or its licensors, and may not be used in any way without prior written approval by SKF. All licensed trademarks published in this mobile application reference the licensor that has granted SKF the right to use the trademark.
- Page 26 (or any future export control legislation) and the regulations promulgated thereunder. Privacy Notice SKF will handle any personal data obtained from you in accordance with the [insert app name] Privacy Notice. Please read this Privacy Notice carefully before using this mobile application.
-
Page 27: Appendix C Federal Communications Commission Interface Statement
The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter. SKF Microlog Analyzer dBX 27 (27) Quick Start Guide Revision A...
