TMS320C6712D
FLOATING POINT DIGITAL SIGNAL PROCESSOR
SPRS293A − OCTOBER 2005 − REVISED NOVEMBER 2005
CLKIN
ECLKIN
RESET
Internal Reset
Internal SYSCLK1
Internal SYSCLK2
Internal SYSCLK3
ECLKOUT
CLKOUT2
CLKOUT3
EMIF Z Group †
EMIF Low Group †
Z Group †
Boot and Device
Configuration Pins‡
† EMIF Z group consists of:
EA[21:2], ED[15:0], CE[3:0], BE[1:0], ARE/SDCAS/SSADS, AWE/SDWE/SSWE, AOE/SDRAS/SSOE and
HOLDA
EMIF low group consists of: BUSREQ
Z group consists of: CLKR0, CLKR1, CLKX0, CLKX1, FSR0, FSR1, FSX0, FSX1, DX0, DX1, TOUT0, and TOUT1.
‡ Boot and device configurations consist of: BOOTMODE[1:0] and LENDIAN.
Reset Phase 1: The RESET pin is asserted. During this time, all internal clocks are running at the CLKIN
frequency divide-by-8. The CPU is also running at the CLKIN frequency divide-by-8.
Reset Phase 2: The RESET pin is deasserted but the internal reset is stretched. During this time, all internal
clocks are running at the CLKIN frequency divide-by-8. The CPU is also running at the CLKIN frequency
divide-by-8.
Reset Phase 3: Both the RESET pin and internal reset are deasserted. During this time, all internal clocks are
running at their default divide-down frequency of CLKIN. The CPU clock (SYSCLK1) is running at CLKIN
frequency. The peripheral clock (SYSCLK2) is running at CLKIN frequency divide-by-2. The EMIF internal clock
source (SYSCLK3) is running at CLKIN frequency divide-by-2. SYSCLK3 is reflected on the ECLKOUT pin
(when EKSRC bit = 0 [default]). CLKOUT3 is running at CLKIN frequency divide-by-8.
84
RESET TIMING (CONTINUED)
Phase 1
1 1
3 4
5 6
7 8
9
10
11
13
12

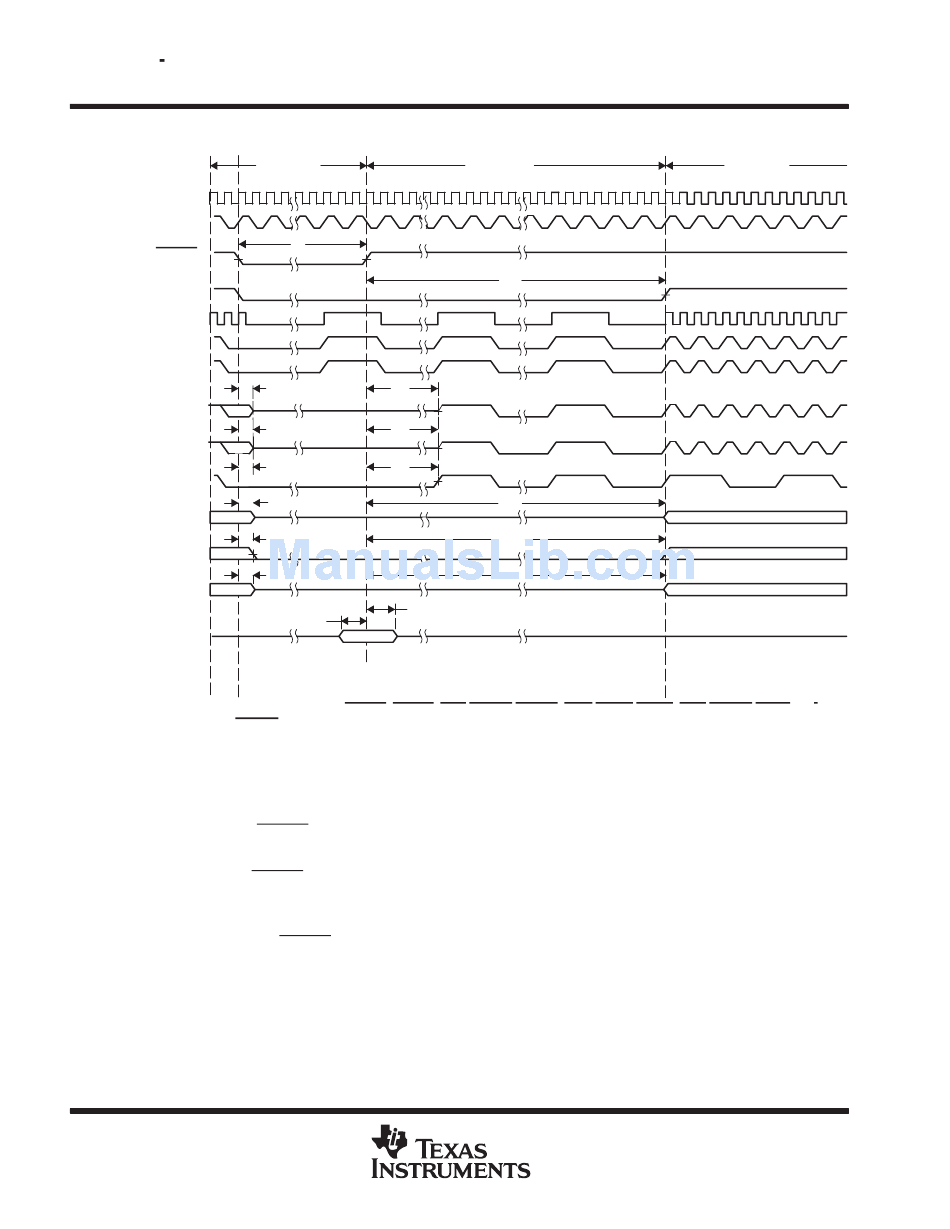

Figure 39. Reset Timing
•
