Signal Groups Description - Texas Instruments TMS320C6712D User Manual

TMS320C6712D
FLOATING POINT DIGITAL SIGNAL PROCESSOR
SPRS293A − OCTOBER 2005 − REVISED NOVEMBER 2005

signal groups description

CLKIN
CLKOUT3
CLKOUT2 †
CLKMODE0
PLLHV
TMS
TDO
TDI
TCK
TRST
EMU0
EMU1
EMU2
EMU3
EMU4
EMU5
ED[15:0]
CE3
CE2
CE1
CE0
EA[21:2]
BE1
BE0
† The CLKOUT2 pin is multiplexed with the GP[2] pin. Default function is CLKOUT2. To use this pin as GPIO, the GP2EN bit in
the GPEN register and the GP2DIR bit in the GPDIR register must be properly configured.
‡ The external interrupts (EXT_INT[7−4]) go through the general-purpose input/output (GPIO) module. When used as interrupt
inputs, the GP[7−4] pins must be configured as inputs (via the GPDIR register) and enabled (via the GPEN register) in addition
to enabling the interrupts in the interrupt enable register (IER).
§ This pin functions as the Big Endian mode correctness and is used when Big Endian mode is selected (LENDIAN = 0)
18
Clock/PLL
IEEE Standard
1149.1
(JTAG)
Emulation
Control/Status
16
Data
Memory Map
Space Select
20
Address
Byte Enables

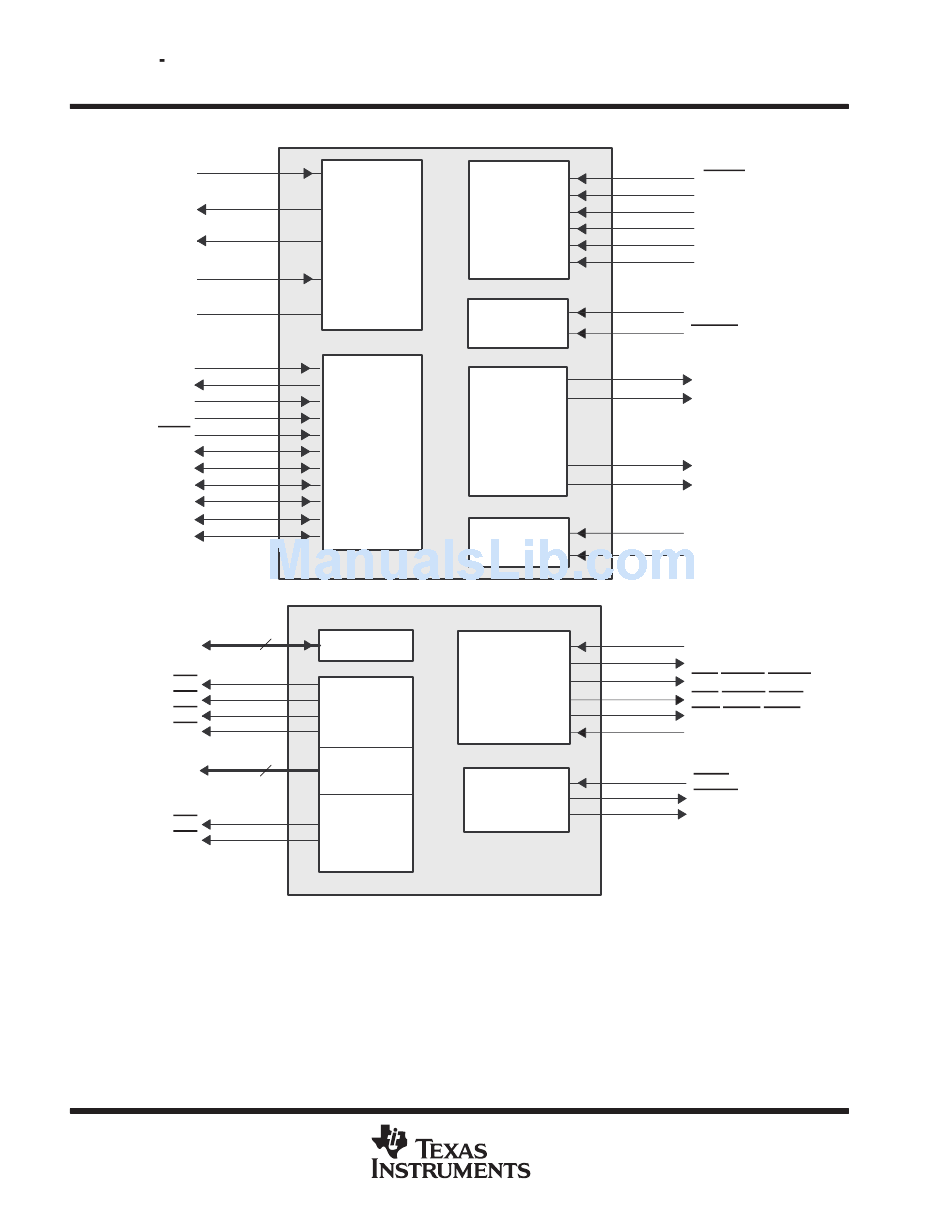

Figure 3. CPU (DSP Core) and Peripheral Signals
POST OFFICE BOX 1443
Reset and
Interrupts
BIG/LITTLE
ENDIAN
Reserved
BOOTMODE
Memory
Control
Bus
Arbitration
EMIF (16-bit)
(External Memory Interface)
•
HOUSTON, TEXAS 77251−1443
RESET
NMI
EXT_INT7 ‡
EXT_INT6 ‡
EXT_INT5 ‡
EXT_INT4 ‡
LENDIAN
EMIFBE §
RSV
RSV
•
•
•
RSV
RSV
BOOTMODE1
BOOTMODE0
ECLKIN
ECLKOUT
ARE/SDCAS/SSADS
AOE/SDRAS/SSOE
AWE/SDWE/SSWE
ARDY
HOLD
HOLDA
BUSREQ
