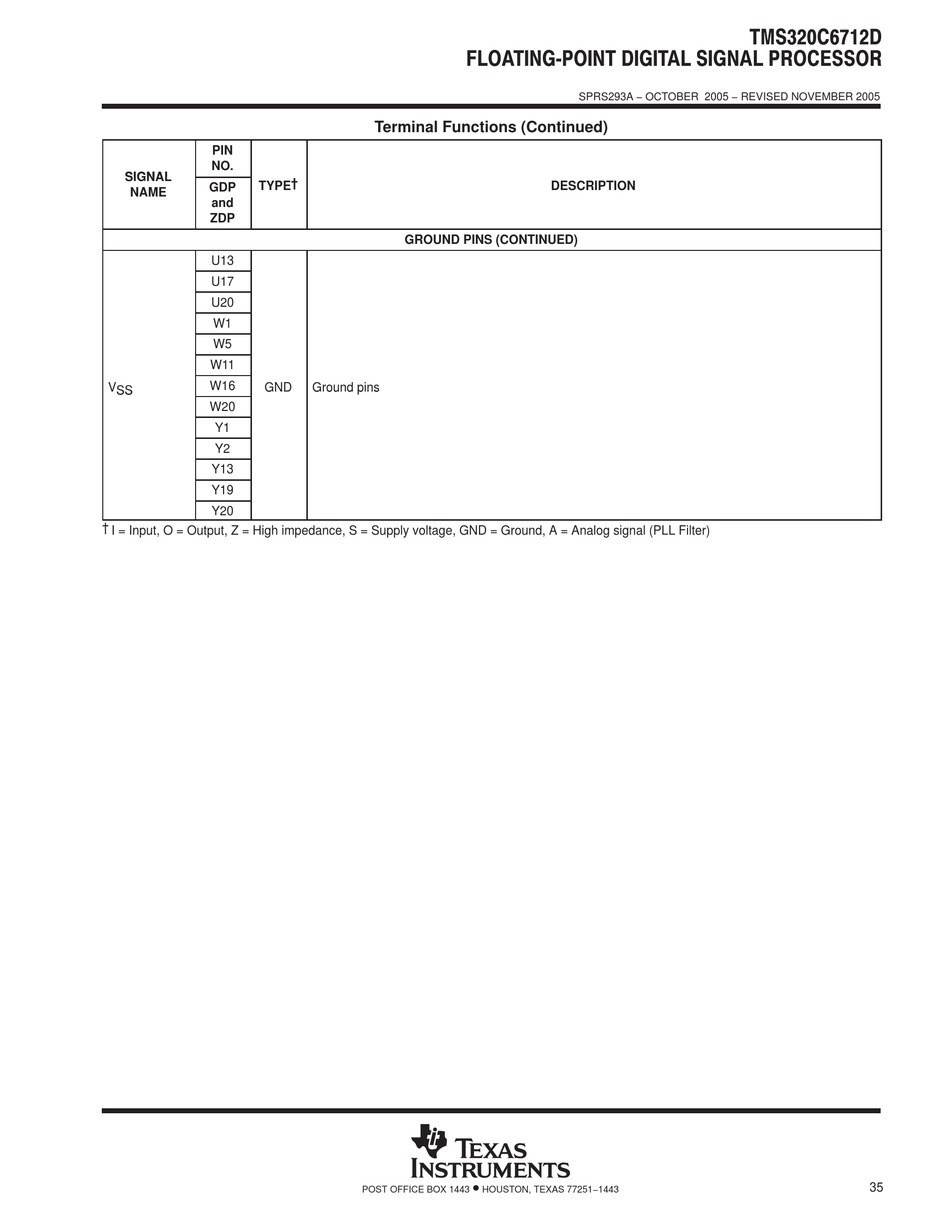

Texas Instruments TMS320C6712D User Manual page 35

PIN
NO.
SIGNAL SIGNAL
TYPE †
GDP
NAME
and
ZDP
U13
U17
U20
W1
W5
W11
W16
V SS GND
V SS GND
W20
Y1
Y2
Y13
Y19
Y20
† I = Input, O = Output, Z = High impedance, S = Supply voltage, GND = Ground, A = Analog signal (PLL Filter)
FLOATING POINT DIGITAL SIGNAL PROCESSOR
Terminal Functions (Continued)
†
GROUND PINS (CONTINUED)
Ground pins
Ground pins
POST OFFICE BOX 1443
SPRS293A − OCTOBER 2005 − REVISED NOVEMBER 2005
DESCRIPTION
•
HOUSTON, TEXAS 77251−1443
TMS320C6712D
35
