signal groups description (continued)
TOUT1
TINP1
CLKX1
FSX1
DX1
CLKR1
FSR1
DR1 †
CLKS1 †
† For proper device operation, these pins must be externally pulled up with a 10-kΩ resistor.
FLOATING POINT DIGITAL SIGNAL PROCESSOR
Timer 1
Timers
McBSP1 McBSP0
Transmit Transmit
Receive Receive
Clock Clock
McBSPs
(Multichannel Buffered Serial Ports)
GPIO
General-Purpose Input/Output (GPIO) Port

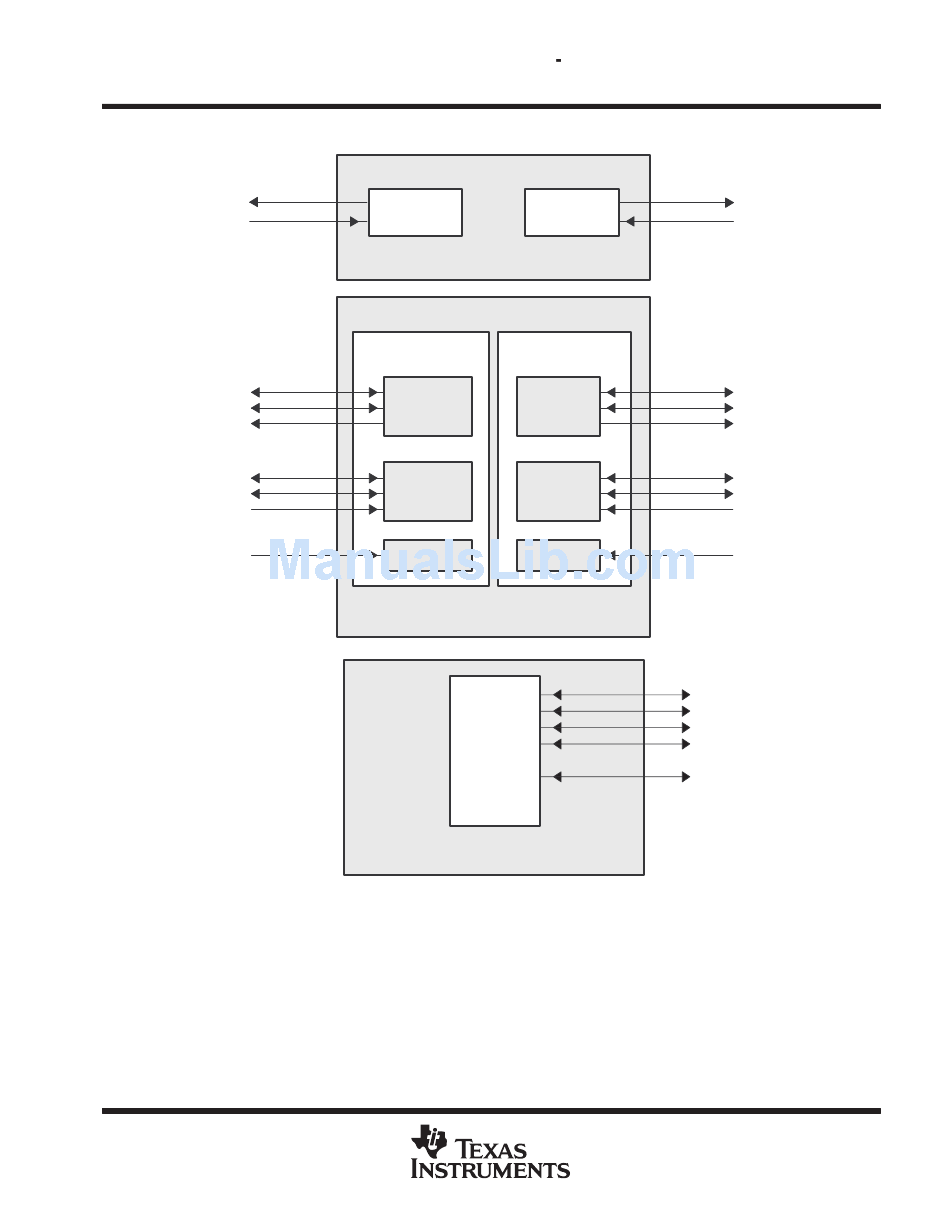

Figure 4. Peripheral Signals
•
POST OFFICE BOX 1443 HOUSTON, TEXAS 77251−1443
SPRS293A − OCTOBER 2005 − REVISED NOVEMBER 2005
Timer 0
GP[7](EXT_INT7)
GP[6](EXT_INT6)
GP[5](EXT_INT5)
GP[4](EXT_INT4)
CLKOUT2/GP[2]
TMS320C6712D
TOUT0
TINP0
CLKX0
FSX0
DX0
CLKR0
FSR0
DR0
CLKS0
