TMS320C6712D
FLOATING POINT DIGITAL SIGNAL PROCESSOR
SPRS293A − OCTOBER 2005 − REVISED NOVEMBER 2005
ECLKOUT
CE[3:0]
BE[1:0]
EA[21:2]
ED[15:0]
AOE/SDRAS/SSOE †
ARE/SDCAS/SSADS †
AWE/SDWE/SSWE †
† ARE/SDCAS/SSADS, AWE/SDWE/SSWE, and AOE/SDRAS/SSOE operate as SDCAS, SDWE, and SDRAS, respectively, during SDRAM
accesses.
80
SYNCHRONOUS DRAM TIMING (CONTINUED)

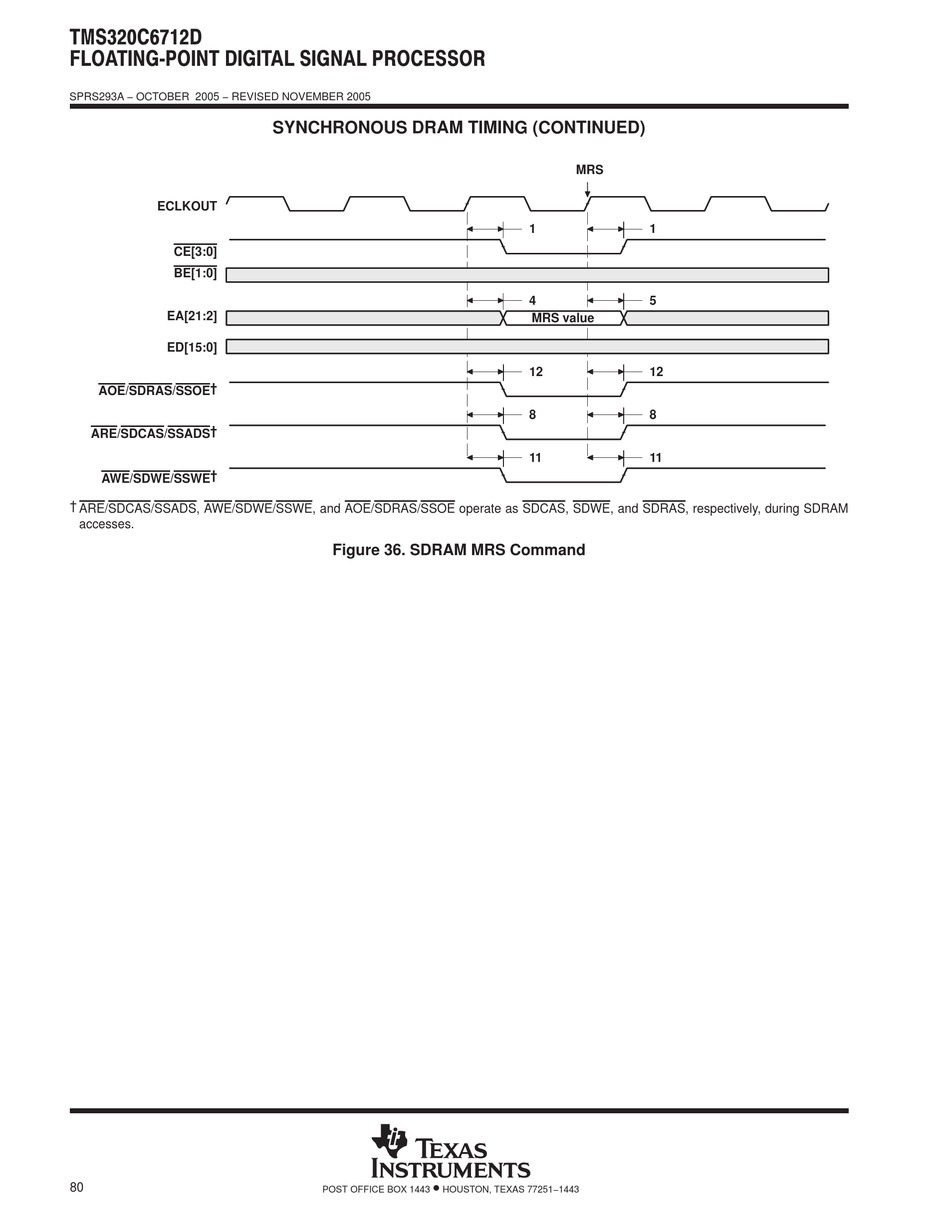

Figure 36. SDRAM MRS Command
•
POST OFFICE BOX 1443 HOUSTON, TEXAS 77251−1443
MRS
1 1
4 5
MRS value
12 12
8 8
11 11
