TMS320C6712D
FLOATING POINT DIGITAL SIGNAL PROCESSOR
SPRS293A − OCTOBER 2005 − REVISED NOVEMBER 2005

power-down mode logic

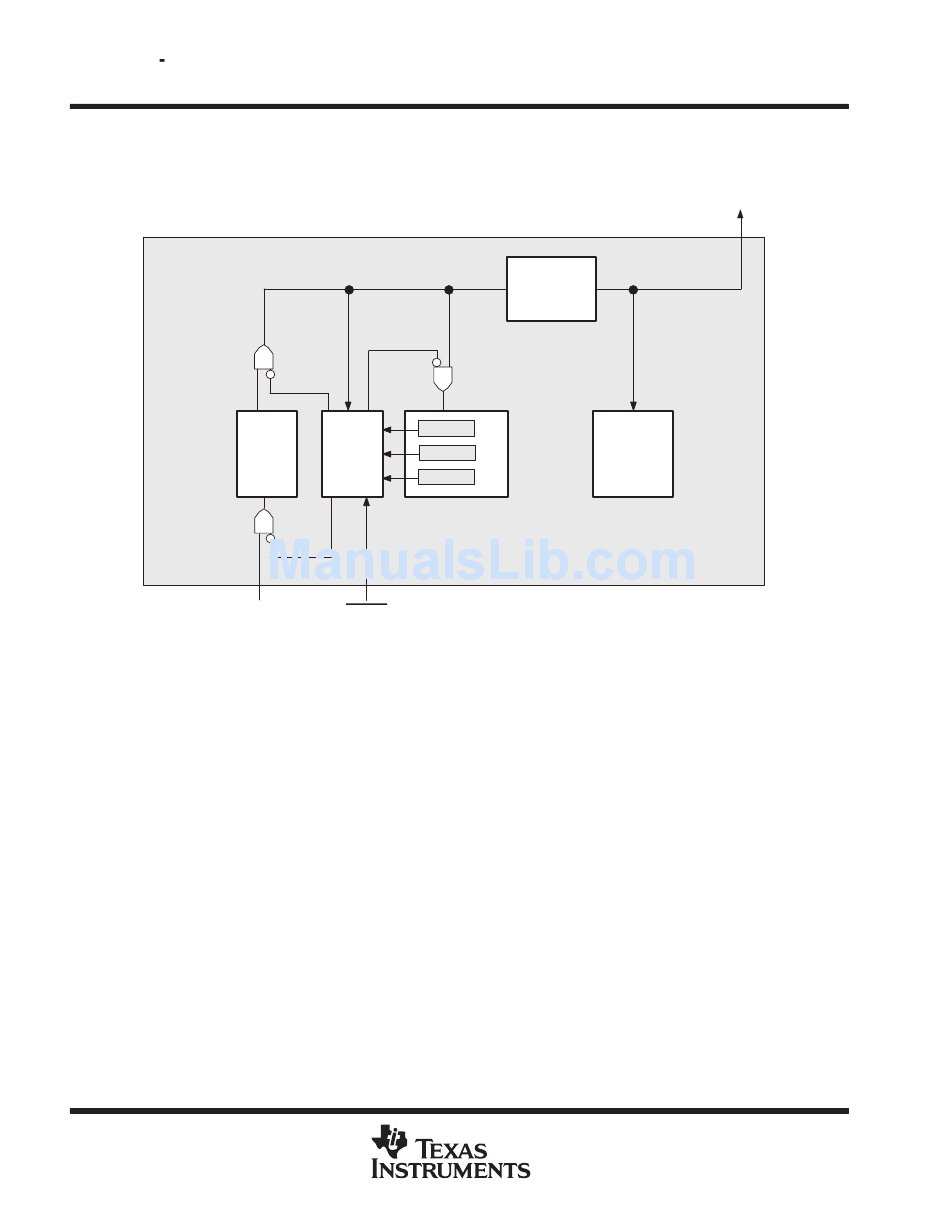

Figure 11 shows the power-down mode logic.
CLKIN
† External input clocks, with the exception of CLKOUT3 and CLKIN, are not gated by the power-down mode logic.
triggering, wake-up, and effects
The power-down modes and their wake-up methods are programmed by setting the PWRD field (bits 15−10)
of the control status register (CSR). The PWRD field of the CSR is shown in Figure 12 and described in Table 32.
When writing to the CSR, all bits of the PWRD field should be set at the same time. Logic 0 should be used when
"writing" to the reserved bit (bit 15) of the PWRD field. The CSR is discussed in detail in the TMS320C6000 CPU
and Instruction Set Reference Guide (literature number SPRU189).
54
Internal Clock Tree
PD1
PD2
Power-
Clock
Down
PLL
Logic
PD3
RESET
Figure 11. Power-Down Mode Logic
POST OFFICE BOX 1443
Clock
Distribution
and Dividers
IFR
IER
Peripherals
CSR
PWRD
CPU
TMS320C6712D
†
•
HOUSTON, TEXAS 77251−1443
CLKOUT2
Internal
