TMS320C6712D
FLOATING POINT DIGITAL SIGNAL PROCESSOR
SPRS293A − OCTOBER 2005 − REVISED NOVEMBER 2005
ECLKOUT
CE[3:0]
BE[1:0]
EA[21:13]
EA[11:2]
EA12
ED[15:0]
AOE/SDRAS/SSOE †
ARE/SDCAS/SSADS †
AWE/SDWE/SSWE †
† ARE/SDCAS/SSADS, AWE/SDWE/SSWE, and AOE/SDRAS/SSOE operate as SDCAS, SDWE, and SDRAS, respectively, during SDRAM
accesses.
76
SYNCHRONOUS DRAM TIMING (CONTINUED)
READ
1 1
2
BE1 BE2
4 5
Bank
4 5
Column
4 5
8 8

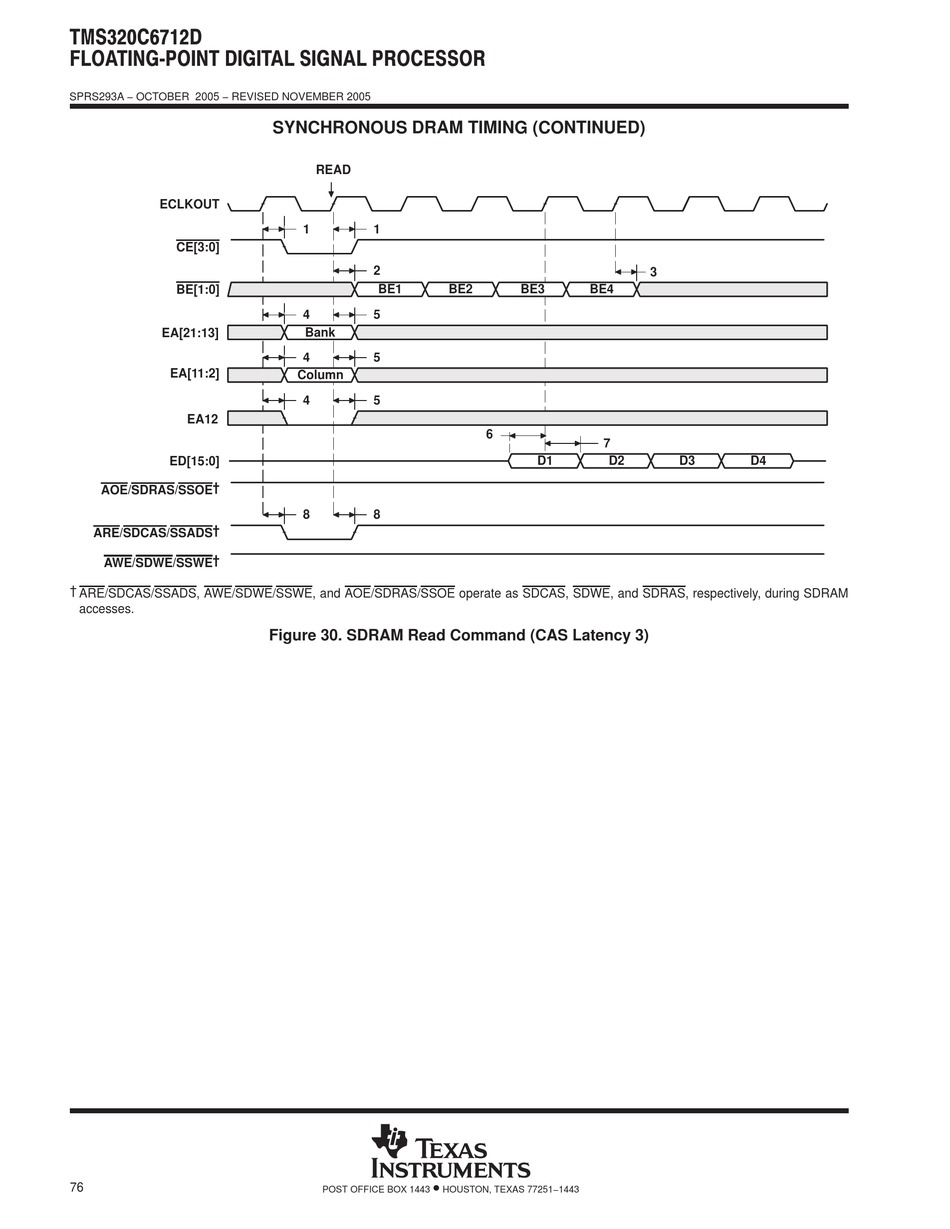

Figure 30. SDRAM Read Command (CAS Latency 3)
•
POST OFFICE BOX 1443 HOUSTON, TEXAS 77251−1443
3
BE3 BE4
6
7
D1 D2 D3 D4
