General Information
Parts of the Printer

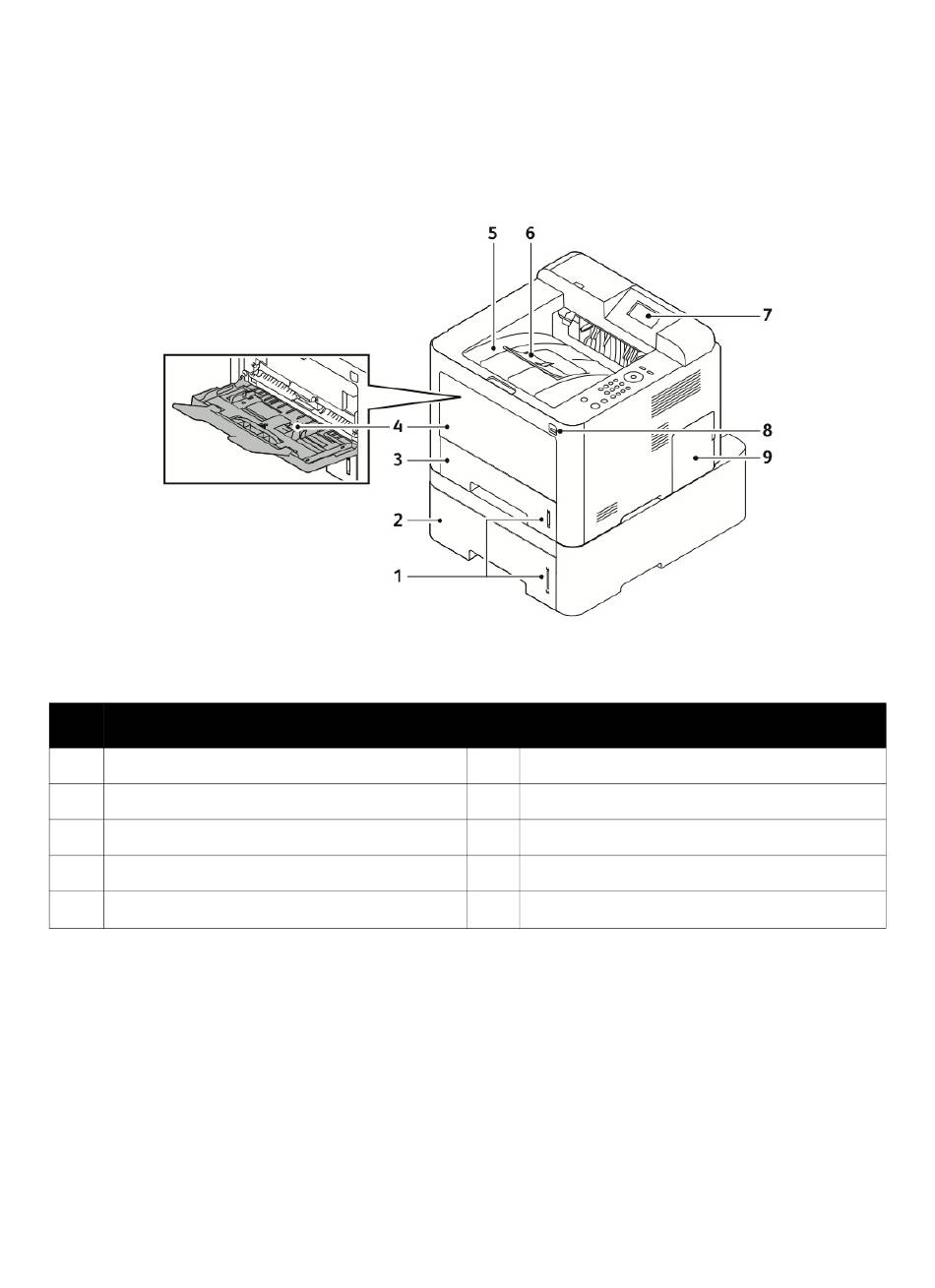

Phaser 3330 Front View
No.
Description
1.
Paper Level Indicators
2.
Optional Tray 2 (550 Sheets)
3.
Tray 1 (250 Sheets)
4.
Bypass Tray and Extension
5.
Output Tray
1-12
Phaser 3330 and WorkCentre 3335/3345
Service Manual
No.
Description
6.
Output Tray Support
7.
LCD Display
8.
USB Cable Port
9.
Control Board Cover
Xerox Internal Use Only
