Service Parts Disassembly
WorkCentre 3335 ADF
ADF Assembly (WorkCentre 3335)
Parts List 7.1 WorkCentre 3335 SCANNER and ADF
WARNING: Do not perform repair activities with the power on or electrical power supplied to the
machine. The machine could activate and cause serious personal injury when the power is on or
electrical power is supplied.
1.
Do steps 1-4 in the Preparation section
2.
Open the ADF unit.
3.

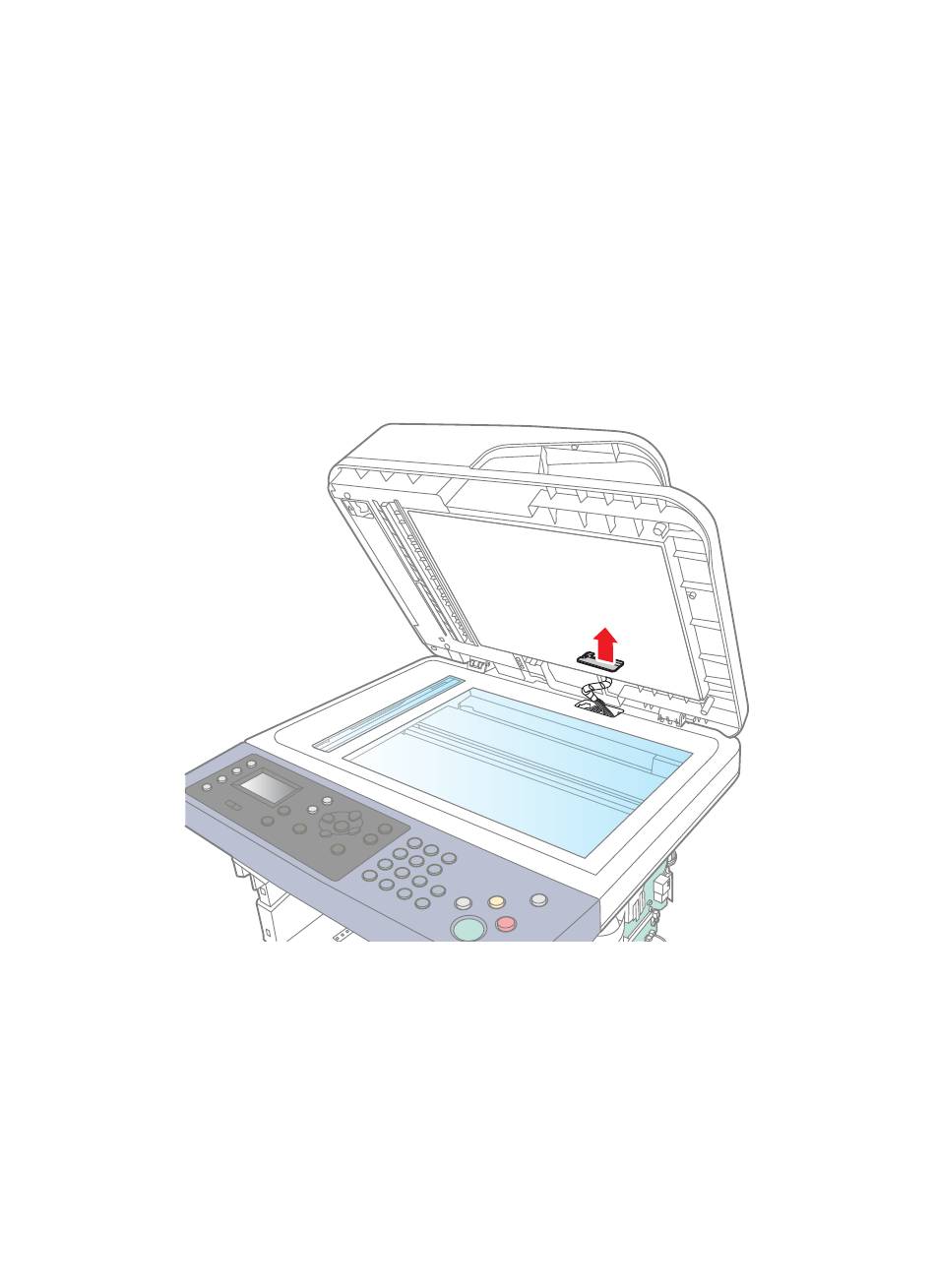

Remove the connector cover and unplug the connector.
4-138
Phaser 3330 and WorkCentre 3335/3345
Service Manual
(page
4-3).
s3320-104
Xerox Internal Use Only
