Deviations from normal Operation

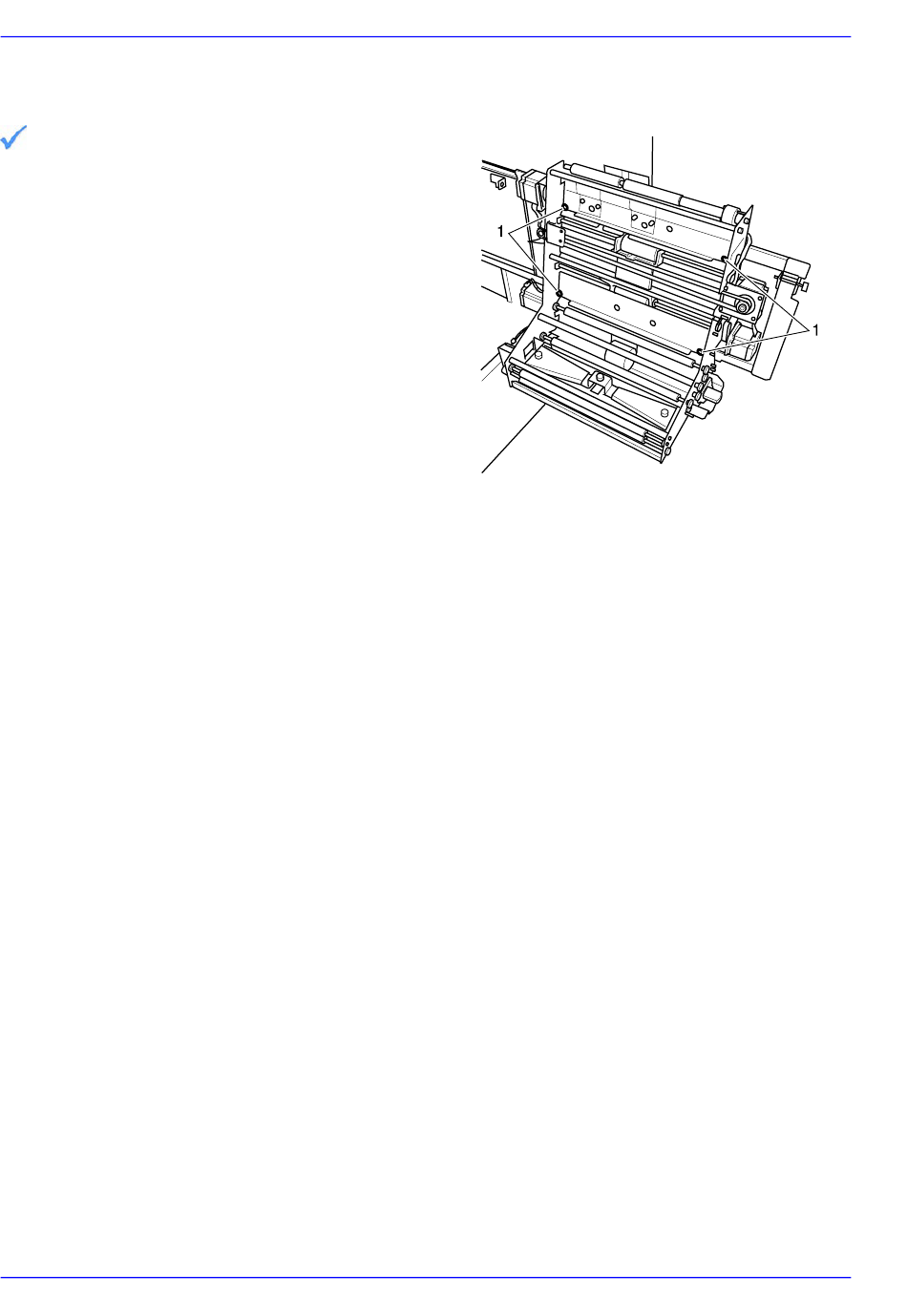

Paper Jam in the Lane Distributor LD

− Open the RH Printer door
− Open the locking (fastening screw) and pull
out the LD towards you
− Pull 2 push buttons (1) each to open them
− Remove the guide plate
− Remove the paper
7.16
2003-06-01 /PN 9008
