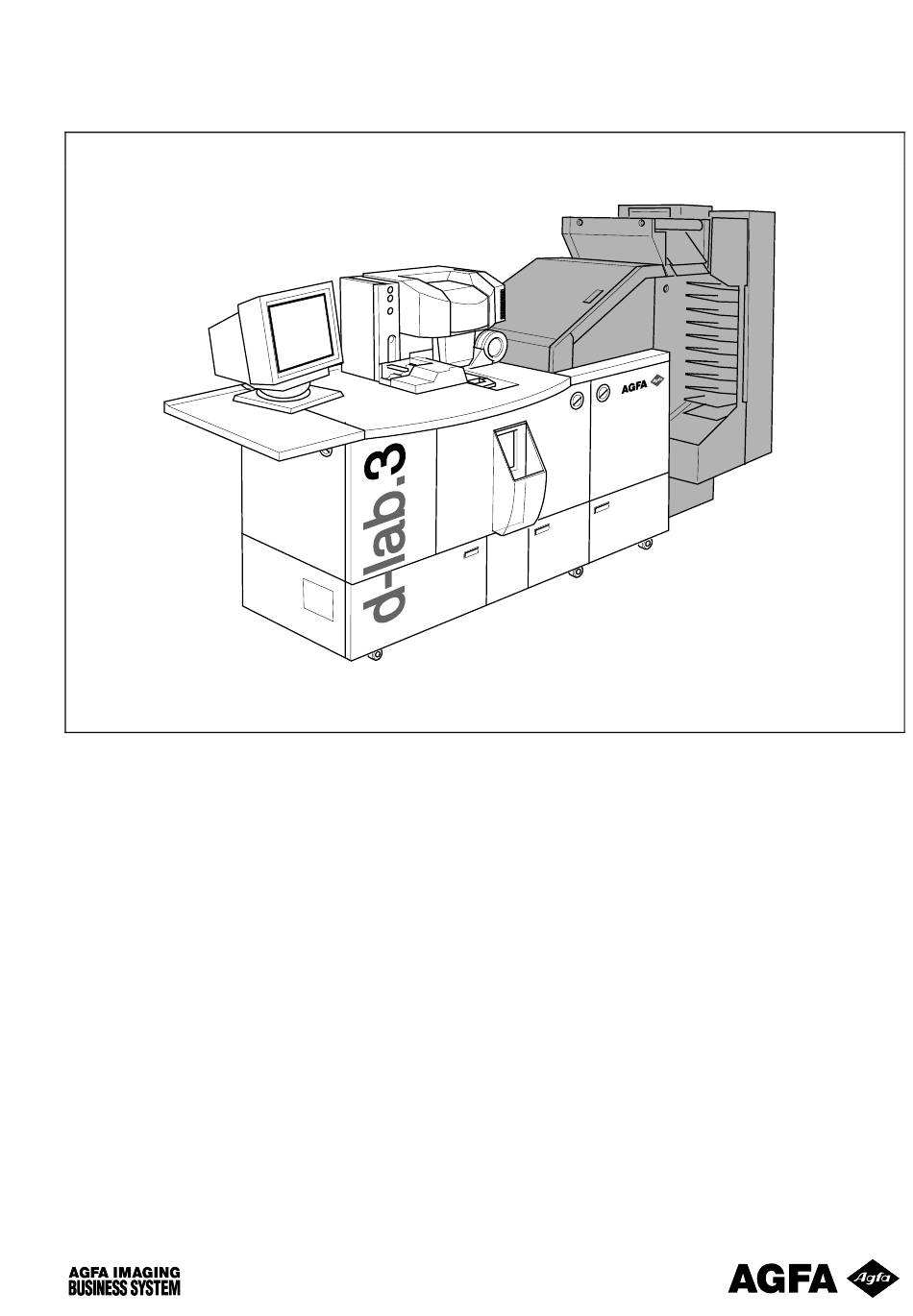

Page 1 TECHNICAL DOCUMENTATION DD+18060012D0 dlabr000 AGFA d-lab.3 Digital Compact Lab Printer / Paper Processor Type 8060/210 Operation Edition 2003-06-01 /PN 9008_07...
Page 3 List of Registers Edition Register General ................2003-06-01 ....1 Overview ................2003-06-01 ....2 Chemicals .................2003-06-01 ....3 Settings ................2003-06-01 ....4 Test ...................2003-06-01 ....5 Production .................2003-06-01 ....6 Deviations from normal Operation........2003-06-01 ....7 Maintenance..............2003-06-01 ....8 Glossary ................2003-06-01 ....9 Index .................2003-06-01 ....10...
Page 4 This declaration is valid only for the original delivery condition and for equipment authorized by Agfa. Published acc. to EN 55022 (valid in Europe): Warning! This is an equipment of Class A.
Page 5 Modification history Version Edition Modifications 9008_04 2002-10-18 Update to Software Version 7.5 9008_05 2002-10-18 Modifications or additions in the chapters 01, 02, 04, 06 9008_06 2002-10-18 Additions in the chapters 02, 06 9008_07 2003-06-01 Update to Software Version 7.6...
Page 7: Table Of Contents
Switching off the d-lab partially (Sleep mode) ........... 2.14 Controls ........................2.15 Keys ........................2.15 Touch Screen Monitor ..................2.15 Screen Structure..................... 2.16 Information Area ....................2.17 Buttons (touch-sensitive fields)................2.18 Pull-down Menu ....................2.19 Pop-up Windows....................2.19 Input Screen ...................... 2.20 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 8 Order Numbers (ABC Codes) for MSC/d-lab Chemicals ......3.2 Mixing Tank Solutions with MSC/d-lab Chemicals........3.2 Inserting Chemical Filters................3.3 Preparation of Replenishers with d-lab.3 Replenishers........3.4 Other Operations to be performed prior to the Production Start......3.5 Settings From the Order Receipt to the Finished Print............4.1 Administrator ......................4.1...
Page 9 Black and White Prints ..................4.77 Basis: Color negative ................. 4.77 Basis: Black and white film ................ 4.77 Sepia Prints ....................... 4.77 Basis: Black and white film ................ 4.77 Defining a Configuration as Standard Configuration ......... 4.78 AGFA d-lab.3 0.iii 2003-06-01 /PN 9008...
Page 10 Selecting the Configuration Type for an Order ..........6.16 Single or Package....................6.16 Combiprint / Passport Photos ................6.17 Reproduction......................6.17 How to Change Configuration and Order Number..........6.18 Display of the current configuration............6.18 Changing the current configuration ............6.18 0.iv AGFA d-lab.3 2003-06-01 /PN 9008...
Page 11 Note ........................6.64 Autosave........................6.65 Images Printing and Saving................6.65 Save Images Without Printing ................6.66 Printing Price Labels (Option)................6.66 Statistics........................6.67 Statistic Save ..................... 6.67 Display Statistics....................6.68 Daily Maintenance Before Switching Off ............. 6.68 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 12 Print chute (LS): Cleaning the transport belt ..........8.18 Monthly Maintenance..................8.19 Cleaning the exposure filters..............8.19 Checking the solution temperatures............8.20 Cleaning / replacing the air filters...............8.21 Changing the scanner lamp ...............8.24 Changing chemical filters ................8.25 Cleaning the processing racks ..............8.26 0.vi AGFA d-lab.3 2003-06-01 /PN 9008...
Page 13 Emptying the effluent tanks................ 8.30 Maintenance Every 6 Months ................8.30 Cartridge feeder: Clean the mechanism and the light barriers ....8.30 Consumables ......................8.31 Cleaning Material ....................8.32 Glossary Glossary ........................9.1 Index Index ..........................9.1 AGFA d-lab.3 0.vii 2003-06-01 /PN 9008...
Page 14 Contents Operation ■ 0.viii AGFA d-lab.3 2003-06-01 /PN 9008...
Page 15 Legal Regulations ..........................1.5 Disposal ..............................1.5 Spent Processing Solutions ......................1.5 Liquid Residues..........................1.5 Chemical Containers ........................1.6 Safety Precautions ..........................1.6 Handling Laser Beams ..........................1.8 Storage ................................ 1.9 Chemicals ............................. 1.9 Photographic Paper ..........................1.9 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 16 Introduction Operation ■ 1.ii AGFA d-lab.3 2003-06-01 /PN 9008...
Page 17: Structure
Spare parts list Finding a machine part and its part number ✘ Circuit diagrams Circuit and reference diagrams for signal tracing ✘ Preinstallation (booklet) Preinstallation actions ✘ Installation (booklet) Installation performed by an Agfa technician AGFA d-lab.3 2003-06-01 /PN 9008...
Page 18: Symbols
Caution! Low risk. Potentially dangerous situation. May cause minor injuries to persons or damage to property. Warning! Average risk. Possible danger. May cause severe injuries to persons or death. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 19: Legal Situation
− Never modify the electric circuit. − Do not bypass or make inoperative built-in safety devices. − Do not modify presettings on safety components. − Replace fuses that have blown only by the same type of fuse: Value, switch-off characteristics. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 20: For The Operation
− Repairs on electrical components − Maintenance jobs / removal of parts and covers not described in this documentation − Use original Agfa spare parts: Only these parts have been tested for their safety and usability − When replacing electrical components: Observe the data given in the circuit and wiring diagrams.
Page 21: Handling Photochemicals
Information about the regulations in force can be obtained from: − The country’s authorities in charge − The nearest Agfa subsidiary Disposal Spent Processing Solutions The processing solutions in use are usually only slightly water polluting (Water pollution class 1).
Page 22: Chemical Containers
For this reason, avoid long or repeated skin contact, especially with developer solutions. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 23 Consult an oculist! Store chemicals and processing solutions in a safe place. Collect draining chemistry immediately and dispose of it, observing the above provisions. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 24: Handling Laser Beams
The respective positions in the machine have labels attached. Warning! Never remove or open covers on the machine as this may be dangerous. A laser beam of class 3B may be accessible after the removal of covers. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 25: Storage
Opened packages have to be stored at a relative humidity of 50-60%. Storage at 20 ºC over several days is possible without problems. Storage temperatures above 30 ºC should be avoided because they will cause visible alterations after only a few days. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 26 Introduction Operation ■ 1.10 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 27 Main Menus............................2.22 Print Modes ............................2.23 Settings, without Machine Settings ..................... 2.24 Machine Settings..........................2.25 Tests..............................2.26 Pricing ..............................2.26 End of Work ............................2.27 Status Information / Help ........................2.27 Further Menus............................. 2.28 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 28 Overview Operation Info and Help .............................2.29 Info Film Drive .............................2.30 Info Printer ............................2.30 Info Paper Processor...........................2.31 Info Orders............................2.31 Info Version ............................2.32 Error List ..............................2.32 Help ..............................2.33 ■ 2.ii AGFA d-lab.3 2003-06-01 /PN 9008...
Page 29: Overview
5a Scanner lamp Lane distributor 5b Filter wheel Lens / CCD 6 Film take-up Transport unit 7 Wet section with racks, crossovers, chemical filters Film collecting box 8 Built-in densitometer LH paper magazine 9 Dryer AGFA d-lab.3 2003-06-01 /PN 9008...
Page 30: Product Description
− Prescan and main scan − Paper cutting − Paper transport − Image editing, if necessary − Printing − Lane distribution − Processing − Deposit of prints in the sorter See also the following sections Film drive/paper drive AGFA d-lab.3 2003-06-01 /PN 9008...
Page 31 Main Computer The digitized image data, the prescan data and the customer’s correction and image editing data are processed on the image processing board, converted to an exposable image and sent to the printer. dlabr014 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 32 (max. 40 prints). − Splices in the paper rolls are cut separately and the respective pieces of paper are deposited in dlabr183 the print order stack. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 33 AGFACOLOR paper rolls have oblong holes punched into the splices which initiates the respective blank transport in the Printer. Densitometer The built-in densitometer above the dryer is used to automatically measure the test prints. dlabr069 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 34: Switching The D-Lab On And Off
Any film carrier may be in the machine when it is switched on or off. The d-lab can be started in 2 different ways: − manually via the main switch – only in case of emergency − automatically via the integrated timer – normal procedure AGFA d-lab.3 2003-06-01 /PN 9008...
Page 35: Manual Switch-On
− Switch on the main breaker (1). − Press the ON button (2), if necessary. The GFI switch (ground fault interrupter below the main breaker) always remains on. dlabr181 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 36: Automatic Switch-On (Timer)
3. Error messages, if any 4. Stop button to shut down the whole machine in the correct way The d-lab is ready to operate after the solutions and the dryer have reached the set temperatures. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 37: Ready For Operation
(daily and total counter: Prints, index prints, orders, scanned negatives, paper consumption). − End of work is used to shut down the machine completely or partially (Sleep mode). The user can also be changed in this menu. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 38 − The logged-in user is not entitled to use these functions. − The software is not installed. See User manager and User rights, Register 4. See also End of work and Shutdown in this Register. 2.10 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 39: End Of Work
− Select the name of the next user. − Enter the password: 4 numbers. − Touch Login: If a different language is allocated to the new user in the machine setup, all texts are immediately displayed in this language. AGFA d-lab.3 2.11 2003-06-01 /PN 9008...
Page 40: Shutdown
− Next Login Select the user for the next switch-on. Changes of the start time and the user only hold for the next start, not in general. Permanent changes are only possible via the machine settings. 2.12 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 41 If the machine was switched off via the main breaker wait at least one minute before you switch on again. Otherwise the hard disk could be damaged. dlabra125 AGFA d-lab.3 2.13 2003-06-01 /PN 9008...
Page 42: Switching Off The D-Lab Partially (Sleep Mode)
Activate the Sleep mode for the desired weekdays and enter the switch-off time of the Main Computer. Once the Sleep mode has been activated, the switch-off time of the Main Computer is indicated. See also Machine settings in Register 4. 2.14 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 43: Controls
− Screen-refresh frequency > 75 Hz An LCD flat screen is available as an option: Type 8060 / 341 Monitor Also refer to the sections Screen Structure, Buttons and Menu Overview in this Register AGFA d-lab.3 2.15 2003-06-01 /PN 9008...
Page 44: Screen Structure
Menu bar with 5 main menus The areas 1, 2, 3, and 7 are always displayed. However, the menu bar (7) cannot always be used; it is disabled in case of certain errors until the error is removed. 2.16 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 45: Information Area
− An error must be removed so that the work can be continued. − Some messages can be ignored several times until the machine forces the operator to act. See Deviations from normal Operation, Register 7 AGFA d-lab.3 2.17 2003-06-01 /PN 9008...
Page 46: Buttons (Touch-Sensitive Fields)
All screens and associated buttons are explained in detail in this operation manual. Apart from this, the online help can be used to call up a detailed explanation for each screen (call up with ?). 2.18 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 47: Pull-Down Menu
− Warning pop-up If there is a risk of data loss. − Info pop-up Operator prompting; checks when changing to a different screen, indication of still running processes. − Question pop-up Safety check question AGFA d-lab.3 2.19 2003-06-01 /PN 9008...
Page 48: Input Screen
− OK key to terminate the entry and return to the previous menu. For the selection of the keyboard allocation see User specific settings in Register 4. Numeric Keypad Enter the desired number via the numeric keypad in the display and confirm with OK. 2.20 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 49: Overview
2. Deletes the whole number in the field PpF (Prints per Frame), e.g. 10 The delete key is inactive in the configuration and correction field. Wrong entries in the correction field are corrected by reentry; if no correction is desired, 0 must be typed in. AGFA d-lab.3 2.21 2003-06-01 /PN 9008...
Page 50: Menu Bar
− Settings − Test − Pricing − End of work Further menus can be called up with and ?: − Status information − Help All menus (screens) are explained in detail in the following registers. 2.22 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 51: Print Modes
Operation Overview Print Modes menu_e1 AGFA d-lab.3 2.23 2003-06-01 /PN 9008...
Page 52: Settings, Without Machine Settings
Overview Operation Settings, without Machine Settings 0248_021 2.24 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 53: Machine Settings
Operation Overview Machine Settings Menu_e3 AGFA d-lab.3 2.25 2003-06-01 /PN 9008...
Page 54: Tests
Overview Operation Tests Menu_e4 Pricing 0248_024 2.26 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 55: End Of Work
Operation Overview End of Work 0248_025 Status Information / Help Menu_e7 AGFA d-lab.3 2.27 2003-06-01 /PN 9008...
Page 56: Further Menus
3. When numbers have to be entered (order number, password), by touching the respective field. 4. In case of severe errors that have to be removed in order to continue working. 5. When the operator has to make a decision. 0248_027 2.28 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 57: Info And Help
In case of an error, the module concerned is shown in red: − Touch the button on the module to localize the error more precisely: The defective component is shown in red in the next screen. 067_red AGFA d-lab.3 2.29 2003-06-01 /PN 9008...
Page 58: Info Film Drive
− Information about the paper magazines: Width, surface, residual length. − In case of error(s) the corresponding component of the Printer is shown in red. Back to the Info screen 2.30 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 59: Info Paper Processor
Back to the Info screen Info Orders Display of the number of orders not yet printed: − APS reorders − Network orders − Orders stored for file prints (backup) Back to the Info screen AGFA d-lab.3 2.31 2003-06-01 /PN 9008...
Page 60: Info Version
− To delete a message from the list, select the message and touch Remove selection. − Back to the Info screen The error list and the error removal are described in Register 7 Deviations from normal operation. 2.32 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 61: Help
Access to the technical documentation for Operation (not yet implemented). − Close goes back to the screen in which ? was touched. In the help window, and Stop are accessible, but not the menu bar. AGFA d-lab.3 2.33 2003-06-01 /PN 9008...
Page 62 Overview Operation ■ 2.34 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 63 Order Numbers (ABC Codes) for MSC/d-lab Chemicals .............. 3.2 Mixing Tank Solutions with MSC/d-lab Chemicals................ 3.2 Inserting Chemical Filters......................3.3 Preparation of Replenishers with d-lab.3 Replenishers................ 3.4 Other Operations to be performed prior to the Production Start............3.5 AGFA d-lab.3...
Page 64 Chemicals Operation ■ 3.ii AGFA d-lab.3 2003-06-01 /PN 9008...
Page 65: Using The Msc/D-Lab Chemicals
For the same reason, the containers used for the preparation must be thoroughly rinsed with hot water after each preparation of a solution. dlabr029 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 66: Preparation In The Machine Tanks
Paper Box comes too soon. Order Numbers (ABC Codes) for MSC/d-lab Chemicals The use of the AGFA MSC/d-lab CHEMICALS, offered by Agfa as well as of the AGFACOLOR PRESTIGE DIGITAL paper is mandatory. MSC/d-lab tank CD for 2x 18.5 liters:...
Page 67: Inserting Chemical Filters
It may be necessary to turn the filter rods a little – so that the filters sit correctly. This completes the preparation of the chemicals. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 68: Preparation Of Replenishers With D-Lab.3 Replenishers
Chemicals Operation Preparation of Replenishers with d-lab.3 Replenishers The three d-lab.3 replenishers are separate sales units. Prepare the replenishers directly in the – replenisher tanks of the machine. The tanks can be pulled out a little for this. − Each replenisher tank carries a label with an individual colour marking.
Page 69: Other Operations To Be Performed Prior To The Production Start
5 Tests 3. Adjusting the machine to the operators‘ needs (e.g. national settings) and to the production requirements (e.g. configurations, price categories); see Settings, register 4 4. Calibrating the machine; see Tests, register 5 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 70 Chemicals Operation ■ AGFA d-lab.3 2003-06-01 /PN 9008...
Page 71 Learning TFS (only for color negatives)....................4.37 Panorama Detection ........................... 4.38 Color/Density Logic ..........................4.38 TFS Color ............................ 4.38 Parameter for shift correction ...................... 4.41 TFS density ..........................4.42 Selector Logic (only for color negatives)..................... 4.43 TFS Selector..........................4.43 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 72 Basis: Color negative........................4.77 Basis: Black and white film ......................4.77 Sepia Prints ............................4.77 Basis: Black and white film ......................4.77 Defining a Configuration as Standard Configuration................4.78 Pricing Configurations..........................4.79 Save / Load Settings and Configurations ....................4.80 ■ 4.ii AGFA d-lab.3 2003-06-01 /PN 9008...
Page 73: Settings
Single, Package, Combiprint Print configurations Reproduction Order If the pricing + label printer option is available, set up Settings price categories Pricing settings Creating a backup copy of the settings and Settings configurations Save settings AGFA d-lab.3 2003-06-01 /PN 9008...
Page 74: Operator
– with preview and image editing Start Network order: Print mode: Automatic or manual Network order If the Pricing + label printer option is available: Print a price tag If the statistics option is available: Save / display statistics AGFA d-lab.3 2003-06-01 /PN 9008...
Page 75: Preparation Of The Print Configuration
Preparation of the Print Configuration Settings Machine Settings settings Machine Paper surface settings Create user Paper settings Settings of cut Import lengths indexprint layout Test Import combiprint layout Make MBL/ PBL with laser point Print settings Order AGFA d-lab.3 2003-06-01 /PN 9008...
Page 76: Settings
⌧ Set magazine Switch 5 Set / change code switches Switch 6 switch e.g. Change PFDF Select PFDF "Fine grain" surface surface Save as Save e.g. Enter name "Fine grain new" Back Back Paper settings AGFA d-lab.3 2003-06-01 /PN 9008...
Page 77 Enter paper e.g. Save width in mm "152" Back Set cut length Back Edit Select cut Enter cut length e.g. "200" length in mm in mm Edit Save Save Test MBL/PBL with laser point AGFA d-lab.3 2003-06-01 /PN 9008...
Page 78 Select film type "File print" Select film type Select config. e.g. type "Single" Select config. type e.g. Select PpF "1" Select film carrier e.g.. Select "Index_152_ indexprint/off 102 neutr." PpV wählen e.g. Select backprint/ "off" AGFA d-lab.3 2003-06-01 /PN 9008...
Page 79 Select border/ e.g. (FF) Select new/off "Prestige d 152" paper configuration/off Select front print/ e.g. (FF) Select "200" paper length/off Select FF paper configuration/off Adapt FF to... Adapt print to ⌧ select paper AGFA d-lab.3 2003-06-01 /PN 9008...
Page 80 Select P paper Force: select length/off Shorter side Adapt P to... Force: Select P paper select Longer side configuration/off Save as Select P paper length/off Enter name Adapt P to... select Save as Save Enter name Save AGFA d-lab.3 2003-06-01 /PN 9008...
Page 81 – Input of all prices (Pricing + Label printer optional) Save settings – All settings are saved: Machine settings, print configurations and pricing settings (Zip) Recover settings – Saved settings and/or configurations are loaded again AGFA d-lab.3 2003-06-01 /PN 9008...
Page 82: Language (User Interface)
The screen Change user login is closed. The Start screen is displayed. If changing the user entails a language change as well, the user interface changes immediately. So the texts of the Start screen are displayed in the now activated language. 4.10 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 83: Entering Names
Press OK to take over the displayed text for the active screen. Entering Numbers If numbers have to be entered, e.g. the numeric user password, the numeric keypad pops up automatically. Press OK to validate the entry in the active screen. AGFA d-lab.3 4.11 2003-06-01 /PN 9008...
Page 84: Machine Settings
Import predefined layouts Settings for Scanner, Printer and Paper – Processor Production balance – Settings influencing the complete production, e.g. color/density corrections. The settings are different for color negative production and for digital images (file prints). 4.12 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 85: Defining Surfaces
Paper magazine coding on the next page Save as – Enter the name of the new surface configuration; Save is only displayed if the screen was called up with Edit. AGFA d-lab.3 4.13 2003-06-01 /PN 9008...
Page 86: Defining Paper Settings
Edit. The total number of paper widths usable on the d-lab without modification amounts to 16. Up to 4 different surfaces maximum can be used in the same way for all widths. 4.14 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 87: Coding The Paper Magazines
Example: 82 mm. In this case the width 82 mm can no longer be used. The table shows the Agfa standard. If required, a different allocation of the switches to paper widths and surfaces can be defined. Every switch combination may only be used once!
Page 88: Defining Cut Lengths
New cut length / Delete cut length – Update the list of created cut lengths; range 82- 305 mm Save – The cut lengths defined here are offered in the selection boxes of the order configurations. 4.16 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 89: User Interface
If a 24 hours format is selected for time display, the buttons for the entry and selection of shortcuts for morning and afternoon (e.g. a.m. / p.m.) cannot be used. Save – Modifications become effective only after they have been saved. AGFA d-lab.3 4.17 2003-06-01 /PN 9008...
Page 90: User Administrator: Defining Users And User Rights
The passwords entered for the machine cannot be read or reset anywhere outside this menu! If the password for a user is forgotten the corresponding settings cannot be changed any more! 4.18 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 91: Creating User Profiles
File print (remote), Autosave (remote), Network orders orders) from a Workstation Settings Configurations Create / modify order configurations incl. sub- configurations Machine settings Change the settings Pricing Create / edit pricing configurations Edit Pricing Test Test MBL, PBL, Remote AGFA d-lab.3 4.19 2003-06-01 /PN 9008...
Page 92: Startup: Defining The Start Time / Standard User (Timer)
If no entry is made for x hours (3 h are preset) directly after the start, the machine switches off automatically. Edit calendar – See Calendar: Defining off days on the next page Save – 4.20 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 93: Calendar: Defining Off Days
– number If a software component is selected in the – list: Enter the enable code received from Agfa. The software is installed / enabled. Then a new start is enforced. Update the machine software: – If the machine does not function correctly afterwards, restore the status before the update with Preversion.
Page 94: Enabling Software
Call up License ID : / Version Info – (in the screen at the bottom left) Order the option from Agfa, indicate the – license ID: Agfa will supply an alphanumeric key code. Install the software as described on the –...
Page 95: Importing A Combiprint Layout
Operation Settings Importing a Combiprint Layout Only layouts of the optional layout program offered by Agfa can be imported. The imported layouts will be used in the Combiprint configurations. Call up: – Settings Machine settings Combiprint layout Select a Film carrier –...
Page 96: Importing An Indexprint Layout
Settings Operation Importing an Indexprint Layout Only layouts of the optional layout program offered by Agfa can be imported. The imported layouts will be used in the indexprint configurations. Call up: – Settings Machine settings Indexprint Layout Select a Film carrier (filter) –...
Page 97: Printer Settings
Prints without any white/black borders can be obtained with the following setting: 1. Overlapping 3% 2. Scanning crop / Slide crop 98% (see next page) AGFA d-lab.3 4.25 2003-06-01 /PN 9008...
Page 98: Settings
/ slide on the CCD that has to be printed. If the value is increased, the prints may get black borders. Reset to standard – Reset modified values to 98%, if necessary Save – 4.26 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 99: Paper Processor Settings
Upon first machine startup or after the machine – has not been used for some days, the operator must enter an initial value: Touch Activate normal repl. After 5 operating days, the replenishment will be in accordance with the throughput. AGFA d-lab.3 4.27 2003-06-01 /PN 9008...
Page 100: Setting Temperatures / Calibrating Sensors
The sensor is calibrated after entering a value and pressing OK. Reset reference / Reset calibration are used – to enter the standard values of the data base. 4.28 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 101: Calibrating Pumps
The pump is calibrated after entering a value and pressing OK. Reset to default is used to enter the default – values from the data base. AGFA d-lab.3 4.29 2003-06-01 /PN 9008...
Page 102: Production Balance
Color negative or digital General machine settings: e.g. detail contrast, sharpness - edges, saturation After the settings have been changed the system restarts automatically. Production balance after touching Digital Production balance after touching Color negative 4.30 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 103: General Information
1.0. Define necessary corrections only via the correction configurations as this is clearer, and the set values can be selected for the back print. AGFA d-lab.3 4.31 2003-06-01 /PN 9008...
Page 104: Information About File Print
(via corrections or the dTFS function), for example, has the effect that shadows become lighter whereas the light areas come out only slightly lighter or almost unchanged which in turn means a contrast reduction. 4.32 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 105: Impact (For Color Negatives And Digital)
Seasonal changes (color dominants green and white) should not be compensated by the correction effect, but only by the corrections themselves. Shifting all 3 colors by the same extent and in the same direction has no effect. AGFA d-lab.3 4.33 2003-06-01 /PN 9008...
Page 106: Sharpness - Edges (For Color Negatives And Digital)
A slight increase in the color saturation may be an advantage for some prints (e.g. pictures with many colored areas), however for faces it seems exaggerating. For a normal mixed production a value of 0 is the best setting. 4.34 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 107: Sharpness - Grain (For Color Negatives And Digital)
– In case of reduction of this value the noise is reduced, the grain structure disappears, but details are less sharp and highlights are eliminated. Grain reduction only with values ≤ 0, e.g. –4 AGFA d-lab.3 4.35 2003-06-01 /PN 9008...
Page 108: Detail Contrast (For Color Negatives And Digital)
Light face in front of a dark background. The more negative the value (-9), the lighter the face and the darker the background. Extreme settings result in artifacts. Detail contrast and area contrast should not be adjusted in opposite directions. 4.36 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 109: Learning Tfs (Only For Color Negatives)
Then the learning process begins again. Use different films of the same type for the learning, do not use the same film 22 times as otherwise the statistics will be falsified! AGFA d-lab.3 4.37 2003-06-01 /PN 9008...
Page 110: Panorama Detection
This is to make sure that negatives showing a color dominant are printed without a color cast. Standard setting: Step width: Setting range: 0.0 to +4.0 4.38 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 111 After the learning phase has been concluded for these films, i.e. if "Standard TFS curves" exist, the effect of these dominant parameters gets normal. AGFA d-lab.3 4.39 2003-06-01 /PN 9008...
Page 112 Degree of correction for tungsten light exposures 0.0 - +1.3 Detection threshold for tungsten light -4.0 - +4.0 Degree of correction for fluorescent light exposures 0.0 - +2.0 Detection threshold for fluorescent light -4.0 - +4.0 4.40 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 113: Parameter For Shift Correction
Standard setting: Step width: Parameters Function Range Impact of the shift correction 0.0 - +4.0 AGFA d-lab.3 4.41 2003-06-01 /PN 9008...
Page 114: Tfs Density
The basic setting for all density parameters is 1.0 and it should not be modified. Any modification of the standard values does not only result in an improvement in one group, but also in a deterioration in another group. 4.42 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 115: Selector Logic (Only For Color Negatives)
Selector 4 Sticker detection on the film -4.0 - +4.0 Towards -4 more negatives with stickers are printed, towards +4 less (twin check label) negatives with stickers are printed AGFA d-lab.3 4.43 2003-06-01 /PN 9008...
Page 116: Color And Dx Corrections (For Color Negatives)
DX code is detected. The corrections are immediately effective and not only after a restart. Color corrections (normal exposure / slope) Enter correction values for normal, over and – underexposures 4.44 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 117: Dx Corrections
Edit. The name of the DX configuration appears in the configuration list. dx_conf If the DX code is detected while a film is inserted, the appropriate corrections become effective. AGFA d-lab.3 4.45 2003-06-01 /PN 9008...
Page 118: Digital Orders, Settings
Autosave function is activated. Computer name – see above: Remote order File print Resource name – see above: Remote order File print 4.46 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 119 Windows PC, operating system Windows 2000, at least 700 MHz, at least 128 MB RAM, at least 20 dwork GByte hard disk). For information about the current PDM Software, e.g. d-workflow, please contact the Service. AGFA d-lab.3 4.47 2003-06-01 /PN 9008...
Page 120: Other Settings
Autosave), the entered Lab-ID must be the same number as the one in the d-workflow program: d-lab.3 = 60 For further d-lab.3 in the laboratory the numbers 61-69 can be used. Lab name – Free name Can be included in the back print.
Page 121 The back print in the print mode Network order is always controlled by the order data created at an external Workstation independent of the status of the Back print parameter in this menu. AGFA d-lab.3 4.49 2003-06-01 /PN 9008...
Page 122: Dtfs Preselection
The image is scaled to print size and the sharpness is enhanced, the color saturation is increased, green tones and skin tones are manipulated. All images are treated the same (without image analysis). dTFS on Additional image analysis: Exposure (under or overexposed), required color/density corrections etc. 4.50 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 123: Print Configurations
Single, Package, Combiprint/Passport, Reproduction Order configurations are combined on the basis of the other configuration types. For this reason, these sub-configurations must be created first. A sub-configuration can be used in any number of order configurations. AGFA d-lab.3 4.51 2003-06-01 /PN 9008...
Page 124: Creating, Editing, Deleting Configurations - Remarks
Enter Save as and a new name. – Editing a configuration: Touch the configuration. – Touch Edit and modify the settings in the next – screen. Save – 4.52 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 125 Sub-configuration is used in the order – configuration. Order configuration Single is used in the – order configuration Package. Exit the screen without modifications with Cancel. AGFA d-lab.3 4.53 2003-06-01 /PN 9008...
Page 126: Paper Configurations
Paper settings. They cannot be modified here. Every switch combination of the magazine switches may only be used once! Save or Save as – Rename paper configuration: Rename and enter a new name – – 4.54 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 127: Print Sizes
102x178 5x8.8 127x223 Panorama 3.5x9.3 83x236 3.x10.0 89x254 4x11.4 102x290 5x3.5 127x89 Classic 6x8.6 152x218 6x4.0 152x102 8x5.6 203x142 8.25x5.8 210x147 High Vision 6x10.5 152x268 6x3.5 152x89 8x4.6 203x116 8.25x4.7 210x119 Panorama 8.25x3.5 210x89 AGFA d-lab.3 4.55 2003-06-01 /PN 9008...
Page 128: Back Print Configurations
Sort the list with – This influences the order of the back print text Save or Save as – If the total length of 80 characters is exceeded, a message is displayed 4.56 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 129: Ix240 Film Coding
Classic High Vision Superior optical data of the camera (exposure conditions, e.g. flash) Superior magnetic data of the camera (exposure conditions, e.g. flash) Superior optical data of the manufacturer AGFA d-lab.3 4.57 2003-06-01 /PN 9008...
Page 130: Ix240 Back Print
This data can be included in the back print. It is offered when a back print configuration is created for the film carrier IX240: IX240 Film data 35 positions – IX240 Film text max. 40 characters – 4.58 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 131: Indexprint Configurations
If the paper config. corresponds to the width (length) of the layout, the cut length will be set that comes closest to the length (width) of the layout pattern. Enter Save or Save as and the name. – AGFA d-lab.3 4.59 2003-06-01 /PN 9008...
Page 132 If an order has more images than the possible number of thumbnails selected for the indexprint configuration (42 in the example), a second indexprint is created. 4.60 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 133: Correction Configurations
For explanations of the function of these corrections see Productions balance These corrections appear in the back print if they were selected for the back print text. See Back print configurations: Notes on some parameters AGFA d-lab.3 4.61 2003-06-01 /PN 9008...
Page 134: Autosave Configurations
All scanned negatives/slides are saved, however only one print per negative/slide. I.e. if different prints were made of a negative/slide only the last one will be saved. Call up: – Settings Print configurations Autosave New or Edit 4.62 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 135 Selection of a local drive (floppy) or external drive. The folder defined and shared in the menu Settings / Machine settings / Network orders / Remote orders: Autosave is offered. Resolution – 4 different resolutions are offered 029_qual AGFA d-lab.3 4.63 2003-06-01 /PN 9008...
Page 136 PDM, e.g. writing a CD. 029_pdm Save or Save as – In case of negatives the DX code is transmitted to the d-workflow as part of the file name: File name = DX code_consecutive number 4.64 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 137: Front Print Configurations
– Settings Print configurations Front print New or Edit Select Font, Size and Position. – When touching the Font color or Background – color a second screen opens (see note on the following page) AGFA d-lab.3 4.65 2003-06-01 /PN 9008...
Page 138 / blue). The dot in the color table appears black. Transparent text background: – Create the color with the values 0 0 0 (red / green / blue). This color dot also appears black in the color table (representing transparent). 4.66 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 139: Combiprint Configurations
If the paper config. corresponds to the width (length) of the layout, the cut length will be set that comes closest to the length (width) of the layout pattern. Enter Save or Save as and the name. – AGFA d-lab.3 4.67 2003-06-01 /PN 9008...
Page 140: Order Configurations
Autoprint and Manual positioning. Before inserting the B/W film, one of the order configurations set under the film type B/W must be selected. See also the sections Film carrier: xxx and Black/white prints on the next pages. 4.68 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 141: Single
Reproduction – This order configuration will switch off all functions of the Agfa image enhancement so that the prints correspond exactly to the original. This also refers to the computing of the print size. The printed image corresponds precisely to the original: In case of deviating sizes there is a border or loss of image information.
Page 142 Prerequisites: Order configurations corresponding to the descriptive order file must be available on the d-lab. These are configurations for which the option File print was selected in the selection box Film carrier. 4.70 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 143 Paper configurations and cut lengths of all – 3 sizes for High Vision (A) Paper configurations and cut lengths of all – 3 sizes for Classic (B) Paper configurations and cut lengths of all – 3 sizes for Panorama (C) AGFA d-lab.3 4.71 2003-06-01 /PN 9008...
Page 144 – PpF (no. of prints per frame) – Presetting = 1 (possible range 0…999) Border – 4-60 mm or 0 for borderless Paper config. and Cut length – Save or Save as – 022_Dia 4.72 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 145 PpF is not zero. Add configurations to the selection list with remove them with Save or Save as – For the Standard button see Defining a configuration as standard configuration AGFA d-lab.3 4.73 2003-06-01 /PN 9008...
Page 146: Combiprint / Passport Photos
PpF (no. of prints per frame) – Presetting = 1 (possible range 0…999) Border – 4-60 mm or 0 for borderless Paper config. and Cut length for full frame – (FF) and Panorama Save or Save as – 022_comb 4.74 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 147: Reproduction
Select Back print or set to OFF – PpF (no. of prints per frame) – Presetting = 1 (possible range 0…999) Paper config. and Cut length for full frame – (FF) and Panorama Save or Save as – 022_repr AGFA d-lab.3 4.75 2003-06-01 /PN 9008...
Page 148: Configuration Types In The Order Configuration List
Configuration types in the order configuration list The configuration types are identified in the list by letters: S Single P Package C Combiprint R Reproduction The standard configuration is always shown in the first line in all configuration lists. 078repro 4.76 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 149: Black And White Prints
Basis: Black and white film 1. Set the Saturation in the correction configuration on a value > 0. Settings of < 0 would result in an image processing error. 2. Enter the desired color correction. AGFA d-lab.3 4.77 2003-06-01 /PN 9008...
Page 150: Defining A Configuration As Standard Configuration
Changes or deactivation within the active standard configuration is not possible. The standard configuration is always shown in the first line in all configuration lists. 022_aps 4.78 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 151: Pricing Configurations
Order numbers for the pricing label printer with Software License to enable the pricing function: Type ABC Code 8506/181 Pricing unit (CE/TÜV) B7256 8506/182 Pricing unit (UL) B9M81 8060/400 5HUBE Pricing unit, Software License AGFA d-lab.3 4.79 2003-06-01 /PN 9008...
Page 152: Save / Load Settings And Configurations
Save or Save as – Load settings: Settings – Load settings Mark the desired information by checking the – Select a medium, if necessary, a directory and – a file name. Load – ■ 4.80 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 153 Changing the Color Detection of the Internal Densitometer ............5.13 Printing MBL test ......................... 5.15 Scanner Calibration PIKO ........................5.16 Test of the Paper Processor ........................5.17 Checking the Process ......................... 5.17 Maintenance.............................. 5.19 Remote Service ............................5.19 Service............................... 5.19 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 154 Tests Operation ■ 5.ii AGFA d-lab.3 2003-06-01 /PN 9008...
Page 155: Printer Tests: Pbl, Mbl
− The MBL test (Master balance) compensates for slight fluctuations of the chemical solutions. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 156: Paper And Chemical Calibration Pbl And Mbl
Printer and the Paper Processor for the MBL and the PBL. − There must be enough paper in the magazine for the two tests (approx. 3 m). − The chemical solutions must be on nominal temperature. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 157: Procedure For The First Machine Operation Or After New Software Installation5.3
7. After the PBL has been printed for all papers, a data base backup should be made so that the values can be loaded back into the machine in case of need. See Settings, Configurations, Saving / loading PBL values AGFA d-lab.3 2003-06-01 /PN 9008...
Page 158: Daily Calibration With The Mbl
− In case of emulsion changes in the master paper a PBL must follow immediately on this paper, and this without laser point. − Just before, if still possible, an MBL should be printed on the old emulsion. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 159: Daily Calibration Without Mbl Concept (Exception)
This provides for a calibrated condition of the machine. 2. Print the PBL right after the MBL: − with laser point for new papers other than the master paper, − PBL without laser point in case of emulsion changes. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 160: Calibration Of New Paper, Emulsion Changes (Master Paper)
1. Print a PBL with laser point on the master paper. 2. Print an MBL. 3. Directly afterwards print a PBL with laser point for all papers other than the master paper. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 161: Pbl Test With Laser Point
(number of retries 1-10). − Test Start PBL − Select the paper configuration for which the PBL test is to be printed. − Touch PBL to print the test. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 162 - Start Start the PBL See Default Setting of Maximum Densities and Calibration Factors, Defining the Maximum Densities for a New Paper as well as Changing the Color Detection of the Internal Densitometer in this chapter AGFA d-lab.3 2003-06-01 /PN 9008...
Page 163: Default Setting Of Maximum Densities And Calibration Factors
Calibr.fact. blue = 0.98 The default settings have been optimized for the use of Agfa papers and Agfa chemicals. Therefore we recommend to leave these values unchanged if Agfa paper and Agfa chemicals are used. If paper and/or chemicals of other manufacturers...
Page 164: Defining The Maximum Densities For A New Paper
Print PBL. To determine the values to be entered proceed according to the description on the following page. For external measuring of the test strip always the same densitometer must be used. 5.10 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 165 Due to the different measuring characteristics of the densitometers (internal / external) the values entered in the screen Print PBL will not correspond to the values measured externally. AGFA d-lab.3 5.11 2003-06-01 /PN 9008...
Page 166 If the required density results in strong blooming effects the light intensity will be reduced until a slightly lower maximum density without blooming is obtained. 5.12 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 167: Changing The Color Detection Of The Internal Densitometer
Whereby a reduction of the calibration factor by 0.1 results in a reduction of the density by about 10% (with 0.2 by about 20% etc.). 4. Repeat the steps 1. through 3. until the grayscale comes out neutral. AGFA d-lab.3 5.13 2003-06-01 /PN 9008...
Page 168 (to obtain a neutral grayscale) D_nom: required density of the color D_act: measured density of the color Cor_current: current calibration factor 4. Repeat the steps 1. through 3. until the grayscale comes out neutral. 5.14 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 169: Printing An Mbl Test
− Call up: Test Start MBL An Info screen pops up during the test. If the master paper is not inserted when an MBL is started, the operator is prompted to insert the master paper. AGFA d-lab.3 5.15 2003-06-01 /PN 9008...
Page 170: Scanner Calibration Pico
PiCo is not terminated correctly, it must be started manually as otherwise the prints may get white borders: Touch Start PiCo. If the automatic PiCo is triggered during the production, the scanner lamp should be checked. 5.16 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 171: Test Of The Paper Processor
If the control strip was accidentally inserted dlab2608 upside down (i.e. emulsion on top) the processed control strip usually shows typical 1 Control strip box dirt marks. 2 Emulsion side / photographic layer 3 Notch AGFA d-lab.3 5.17 2003-06-01 /PN 9008...
Page 172 − Close the Printer door and touch Continue (or terminate the operation with Cancel). The control strip is transported into the Paper Processor. − Send in the process control strips for evaluation. dlab2195 5.18 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 173: Maintenance
Service can only be called up if the user has logged-in as Service user. − Call up: Test Service Then the user is asked whether he really wants to change to the service functions. The Service functions are described in the folder Repair. AGFA d-lab.3 5.19 2003-06-01 /PN 9008...
Page 174 Tests Operation ■ 5.20 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 175 Portraits ............................... 6.26 Border Prints ............................6.27 Autoprint.............................. 6.28 Autoprint without Preview......................6.28 Autoprint with Preview......................... 6.29 Reorder ............................... 6.32 Reorder list ..........................6.32 Reorder without Preview ......................6.34 Reorder with Preview ........................6.35 Manual Positioning..........................6.37 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 176 Indexprints in the Different Print Modes ....................6.63 Print Indexprint Only..........................6.63 Note ..............................6.64 Autosave..............................6.65 Images Printing and Saving ........................6.65 Save Images Without Printing ......................6.66 Printing Price Labels (Option).........................6.66 Statistics..............................6.67 Statistic Save............................6.67 Display Statistics ..........................6.68 Daily Maintenance Before Switching Off ....................6.68 ■ 6.ii AGFA d-lab.3 2003-06-01 /PN 9008...
Page 177: Production
Ensure that all 4 fingers are in the correct notch. dlabb002 The structure of the notches helps to find the correct position. There is a new paper magazine, in which the paper width 114 mm is considered. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 178 – Move the guides to the correct width. dlabb003 – Then adjust the guides in the other magazine part in the same way. dlabb004 If several paper types are used, we recommend to prepare several magazines for each paper width. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 179: Putting Paper In The Magazine
– Avoid fogging of the leading paper edge: msc1b039 Rewind the paper after closing the magazine by turning one of the gears on the side of the magazine opening until the magazine latch locks. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 180: Coding The Paper Magazine
8.25 inch (210 mm) * For switch positioning see New paper width on the following page. The table shows the Agfa standard. If required: Change the switch allocation for the paper widths and surfaces. Four different surfaces at the most can be used equally for all widths.
Page 181: New Paper Width 114
– In configurations with width 82 delete the width: Settings – d-lab settings – Paper settings – Under New save the old magazine code for width 82 as code for 114 and create configurations with paper width 114 mm (cut length 171 mm). AGFA d-lab.3 2003-06-01 /PN 9008...
Page 182: Changing The Paper Magazine
The middle Printer door must remain closed during this procedure as otherwise the paper will be fogged. Do not use two paper magazines with the same code at the same time in the machine! AGFA d-lab.3 2003-06-01 /PN 9008...
Page 183: Changing The Mirror Box For Films 120
– Insert it in the guide and – push it in until it locks noticeably dlabr094 When the film carrier is changed, the pixel correction (PiCo) is performed automatically. Do not remove the film carrier while the PiCo is performed! AGFA d-lab.3 2003-06-01 /PN 9008...
Page 184: Film Ix240
As the customer cannot see the APS film, the film status is indicated on the cartridge. Film status indication: unexposed partly exposed fully exposed but not developed developed film IPI (Irreversible Process Indicator) (punched in if the film has been processed) AGFA d-lab.3 2003-06-01 /PN 9008...
Page 185: Changing The User / Language
So the texts of the Start screen are displayed in the now activated language. Allocation of different languages for the operators in the laboratory: see Languages (User interface) in Register 4. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 186: Order Handling
– When the prints are in the sorter bucket, the film is cut into strips and sleeved into transparent sleeves in an optional film sleever, e.g. AGFA FS1. The strips and the prints are put in a photo bag which is then inserted in the order envelope.
Page 187: Inserting A Film In The Film Feeder
An order is started automatically as soon as a film is inserted. If a film is inserted in the Reorder print mode although no Reorder list has been created yet, an error message is displayed and the film is ejected. AGFA d-lab.3 6.11 2003-06-01 /PN 9008...
Page 188: Order Number (Automatic / Manual)
The entered number is incremented for the following orders. Automatic order number: The first order always starts with 1. The entered number is automatically incremented for the following orders. It cannot be changed. 6.12 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 189: End Of Order (Automatic / Manual)
– In the Print modes Manual positioning and Slide print – After automatic end of order has been deselected – For film strips shorter than the minimum length during or after the handling of the last strip AGFA d-lab.3 6.13 2003-06-01 /PN 9008...
Page 190 – Automatic end of order on/off – Define the length of the film strips for the automatic end of order (400 mm are preset) All information needed for pricing is saved whenever an order is terminated. 6.14 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 191: Print Modes, General
(default). Within a mode, except Reorder and Network print, however, the configuration setting used last remains active. In case of Reorder the system switches back to standard configuration after every order. AGFA d-lab.3 6.15 2003-06-01 /PN 9008...
Page 192: Selecting The Configuration Type For An Order
To print an order as single or package, the order configuration of the respective type must be selected. In the list of order configurations those types are marked as S and P. 6.16 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 193: Combiprint / Passport Photos
(400 dpi), e.g. for CD Inlays. To print a reproduction select an order configuration of the reproduction type. In the list of order configurations this type is marked as R. AGFA d-lab.3 6.17 2003-06-01 /PN 9008...
Page 194: How To Change Configuration And Order Number
(see next title Selecting a different configuration). – Change the settings as desired and confirm with OK. They are not saved, but only apply to the current order / image. 6.18 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 195: Selecting A Different Configuration
The order configurations printable on the inserted paper are marked in the list by a *, package configurations are marked by a P. – Select the desired configuration from the list. – Press ok 009a AGFA d-lab.3 6.19 2003-06-01 /PN 9008...
Page 196: Changing The Order Number
See Machine settings / Further settings in Register 4. – Touch the Change? Button. – Enter the desired order number via the numeric keypad in the display and confirm with OK. 600bd 6.20 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 197: Printing
Positioning (always black-and-white and color film; IX240 only color film): − 135 − 135HF − IX240 − 120-type film formats 4.5x6 up to 6x9 − 110 – Reorder Color films with extended DX code – Slides 135, mounted AGFA d-lab.3 6.21 2003-06-01 /PN 9008...
Page 198: Procedure In The Different Print Modes
It is scanned and displayed in the preview. The order number is allocated automatically as each processed film, each reorder list and each composition of file prints or slide prints is handled as one order. 6.22 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 199 – After the printing, the operator removes the finished prints of an order from the sorter and puts them in the order bag along with the pertaining medium (film, or slides, or storage media). AGFA d-lab.3 6.23 2003-06-01 /PN 9008...
Page 200: Black/White Prints And Sepia Prints
– Basis: Image files Automatic conversion of color information in the original to black-and-white or sepia is not possible. The image file must be converted externally, e.g. with a PC and Photoshop or a comparable program. 6.24 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 201: Reorder Of Black/White Films Without Extended Dx Code
– Select the order configuration which has B/W entered as film type – Activate preview – Insert the B/W film – For negatives which are not to be printed touch Skip and for the others Print AGFA d-lab.3 6.25 2003-06-01 /PN 9008...
Page 202: Portraits
– Area contrast – Detail contrast – Sharpness - edges –4 – Saturation –1 This does not cure the problem as such, but it corrects the prints to an acceptable result. 6.26 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 203: Border Prints
The button is shown in the preview with 4 images and in the enlarged view. − Touch Border − Enter the Width and select a Color in the following screen The colored border is then shown in the preview. result AGFA d-lab.3 6.27 2003-06-01 /PN 9008...
Page 204: Autoprint
(see upper part of the screen), or switch to the Reorder mode to enter a reorder list. It is not possible to switch to Autoprint with preview while an order is running. 6.28 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 205: Autoprint With Preview
– Enlarged view off returns to the normal view of the 4 images All further buttons are displayed in the preview with 4 images as well as in the enlarged view. Explanations of these buttons follows on the next page. AGFA d-lab.3 6.29 2003-06-01 /PN 9008...
Page 206 The preview disappears; the remaining images of the order are printed with the preset configuration. See Special and Image editing in all print modes with preview later on in this register. 6.30 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 207 − in case of short film strips (< 400 mm) In Autoprint mode with preview, the next order can only be handled after end of order has been entered for the current film. AGFA d-lab.3 6.31 2003-06-01 /PN 9008...
Page 208: Reorder
− Complete the input of a list with OK. Every time the reorder list is opened it shows the standard configuration even if the configuration was modified for the previous order. 6.32 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 209 – End of order is set automatically after all DX numbers of the reorder list have been found and printed. Then the reorder screen appears again. AGFA d-lab.3 6.33 2003-06-01 /PN 9008...
Page 210: Reorder Without Preview
− FID number (for films IX240) – At the same time, the operator can already prepare the next order (see upper screen part). It is not possible to switch to Reorder with preview while an order is running. 6.34 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 211: Reorder With Preview
Image editing or Specially. – Rotate display To show an enlarged picture upright (always by 90° cw). – Enlarged view off returns to the normal view of the 4 images AGFA d-lab.3 6.35 2003-06-01 /PN 9008...
Page 212 The preview disappears; the remaining negatives of the reorder list are printed with the preset configuration. See Special and Image editing in all print modes with preview later on in this register. 6.36 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 213: Manual Positioning
The 1 frame of the film strip is displayed; of a single negative, only the scanned part of the piece of film is shown. It must then be positioned correctly. AGFA d-lab.3 6.37 2003-06-01 /PN 9008...
Page 214 − Whole films / long film strips are ejected. − Short film strips / single negatives are moved to a position in which the film carrier can be removed without causing damage to the film strip / negative. 6.38 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 215 In Manual Positioning mode. This way, several strips and single negatives can be combined to form an order. See Special and Image editing in all print modes with preview later on in this register. AGFA d-lab.3 6.39 2003-06-01 /PN 9008...
Page 216: File Print
If this option is used for 5 and 6 inch paper widths, a per forma cut length > 152 mm must be entered in the order configuration to receive a correct cut length corresponding to the aspect ratio of the image file. 6.40 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 217 Photoshop: 1. Files created with Adobe Photoshop must be saved in the format tif, bmp or jpg. 2. Use a Gamma value of 1.8. 3. CMYK (additive colors) must be converted to RGB (subtractive). AGFA d-lab.3 6.41 2003-06-01 /PN 9008...
Page 218: Dtfs (Only For File Print And Network Order)
– for manipulated, artificially modified digital exposures – for images created with graphic programs – for images with "real" white areas, e.g. business cards – in images saved on a d-lab with Autosave 6.42 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 219 – for images with “amateur-like characteristics” If the parameter is activated dTFS is available for selection in the order menu, otherwise it is not available. See Other Settings / dTFS Preselection in register 4. AGFA d-lab.3 6.43 2003-06-01 /PN 9008...
Page 220: Loading Image Files From Data Carriers
/ directories one after the other and add the desired files, if any. If files with the same name are included in the list, they are numbered continuously, e.g. tower, tower-2, tower-3. 6.44 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 221: Saving Digital Orders
(composing the image files again from the data carriers / directories) and printed again, if required. When the memory is full, the operator has to delete backup files which are no longer needed by hand. AGFA d-lab.3 6.45 2003-06-01 /PN 9008...
Page 222: Loading Saved Digital Orders
– If necessary, change the order number – Activate / deactivate dTFS If necessary change the presetting; it has been defined under Machine settings / Other settings, see Register 4. – Activate / deactivate Preview 6.46 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 223: Productivity For File Prints
– Prepare order The screen to load image files from media or saved orders is displayed again. It is not possible to switch to file print with preview while an order is running. AGFA d-lab.3 6.47 2003-06-01 /PN 9008...
Page 224: Printing File Prints With Preview
Image editing or Specially. – Rotate display To show an enlarged picture upright (always by 90° cw). – Enlarged view off returns to the normal view of the 4 images 6.48 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 225 Orders with more than 40 prints: The sorter automatically moves to the next bucket after 40 prints. When removing the prints make sure that they are distributed in several buckets! AGFA d-lab.3 6.49 2003-06-01 /PN 9008...
Page 226: Slide Print
– Put in the slide correctly and push in the top part of the carrier. − The slide is scanned (Prescan and Main Scan) and shown on the screen. − Then the top part of the carrier is moved dlab2602 out again. 6.50 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 227 If there are black or white borders on a print, this may be due to the differences of the slide frames. See Special and Image editing in all print modes with preview later on in this register. AGFA d-lab.3 6.51 2003-06-01 /PN 9008...
Page 228: Image Editing And Special In All Print Modes With Preview
The opposite screen is displayed. The current image is shown twice for comparison: 1. Original (small) 2. Edited version (enlarged): The display is automatically refreshed if modifications are made. 6.52 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 229: Color / Density Corrections
Example: For a 6x6 negative either a horizontal or vertical print on a rectangular print size can be made. – Confirm the setting with OK or Cancel. – Use Reset Crop to go back to the complete image information. AGFA d-lab.3 6.53 2003-06-01 /PN 9008...
Page 230: Image Improvement
– Saturation – Detail contrast – Area contrast – OK or Cancel Return to the preview with 4 images or the enlarged view. See Correction configurations, Register 4. The parameters are described there in detail. 6.54 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 231: Special
– Select Text color and Font – Style: Touch B for bold, I for italic and/or U for underline. – Style: Touch symbol left justified, centered or right justified. – OK returns to the screen Position text AGFA d-lab.3 6.55 2003-06-01 /PN 9008...
Page 232 (modify the color parts). – OK The Special screen is shown again. – Press OK to go back to the preview with 4 images or the enlarged view result 6.56 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 233: Saving Image Data In A File
Ethernet interface of the d-lab and from there via a data network (e.g. Internet). On the other hand, image data from customers can be received from the external Workstation and sent to be printed on the d-lab, provided a suitable software is installed. AGFA d-lab.3 6.57 2003-06-01 /PN 9008...
Page 234: Network Orders
As the image editing is done already on the Workstation, the orders are executed automatically and without preview on the d-lab. The corrections entered under Production balance / digital will be effective. See also Production balance in Register 4. 6.58 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 235: Start, Operator-Controlled
The operator can alter the order of handling by selecting a different order in the list. It is possible to mark several orders at the same time. – Mark an order – Start Print AGFA d-lab.3 6.59 2003-06-01 /PN 9008...
Page 236: Start, Automatic
Pricing: In case of network order an internal order number is printed on the pricing label and not the one sent with the network order 6.60 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 237: Indexprints
Always the crop stored on the film is shown (line in the thumbnail), even if a different crop is printed. File print: Max. 9 characters of the file name are printed as image subtitle. AGFA d-lab.3 6.61 2003-06-01 /PN 9008...
Page 238: Quantity / Aspect Ratio Of The Thumbnails On The Indexprint
100/77 Image files For file print and network order a single image is reduced to such an extent that it fits in the predefined window if the image data has a different aspect ratio. 6.62 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 239: Indexprints In The Different Print Modes
Indexprints are not possible with Manual positioning. Print Indexprint Only 2 alternatives: – Set the number of prints for the order on zero – Modify the configuration accordingly. AGFA d-lab.3 6.63 2003-06-01 /PN 9008...
Page 240: Note
Modifications also affect the thumbnails of the indexprint. – The indexprint is true-to-color because it is not recorded by a separate camera. – Indexprint on 2 sheets: Duration max. 3 minutes – There is no preview for indexprints. 6.64 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 241: Autosave
(customer can load down his images from the Internet) Normal: d-workflow In case of films the DX code is transmitted to the d-workflow as part of the file name: File name = DX code_consecutive number AGFA d-lab.3 6.65 2003-06-01 /PN 9008...
Page 242: Save Images Without Printing
When the customer purchases a license, the functions that exist already in the Main Software become accessible (see also Activating the Software in Register 4). The functions are described in the Technical Documentation supplied together with the label printer. 6.66 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 243: Statistics
This means that not more than two files are produced automatically each day. The files are stored in the directory d:\Data\Statistic. The can be called up under Test / Remote Service. AGFA d-lab.3 6.67 2003-06-01 /PN 9008...
Page 244: Display Statistics
The following maintenance work should be done prior to switch off to avoid problems for the next startup. – Check if there is enough water in the tank. – Check the effluent tanks and empty them if necessary. 6.68 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 245 Paper Jam between the Transport Unit TU and the Lane Distributor LD ........... 7.15 Paper Jam in the Lane Distributor LD....................7.16 Paper Jam between the Lane Distributor LD and the Sheet Transfer ST .......... 7.17 Paper jam in the Paper Processor ...................... 7.18 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 246 Deviations from normal Operation Operation ■ 7.ii AGFA d-lab.3 2003-06-01 /PN 9008...
Page 247: Switching Off The Machine
2. Cause problems with the PC; the operating system may have to be reinstalled. The PC should always be shut down under control. 3. Cause paper jams if not all prints have left the Paper Processor. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 248: Error Messages
The work process is stopped. The error must be removed and the removal must be confirmed by Clear. In case of some machine errors, the Popup disappears automatically after the error has been removed. err_pop AGFA d-lab.3 2003-06-01 /PN 9008...
Page 249: Explanation Of The Keys To Be Used In Case Of A Fault: Film Stop And On Key, Screen Key Stop
Reorder lists Advantages comparative to a Reset by means of the ON key: The laser need not be started; no new Piko required. Do not pull out the film mask during a Reset. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 250 Reset. After the Reset the machine starts up again and loads the last consistent Backup. The customer does not lose data, the machine is in the same status as it was before the ON key was pressed. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 251: Error Handling
To make them visible again, open one of the front doors: The large error Popups are displayed again. − If the loop – constantly unrepaired errors – cannot be interrupted, push the ON key. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 252: In Case Of Image Processing Errors
These active errors must be cleared from the er- ror list. Deactivate the option Show all errors so that only active errors are displayed. Then perform a Reset. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 253: In Case Of Printer Errors
− The button ? opens the Help screen − The button Error Help Index calls up the al- phabetic list of the error messages − Select the error message and call up the Help text AGFA d-lab.3 2003-06-01 /PN 9008...
Page 254: Removing The Paper Jam
− Check the print roller in the Print Engine: Take out the top guide plate, turn the print roller forward by hand to transport out any paper that may still be inside. 3. Pull out the paper preferably in paper advance direction AGFA d-lab.3 2003-06-01 /PN 9008...
Page 255: Printer, General
Printer to remove the jam are not ener- gised. − The Printer is automatically switched ready for printing again after the operator has re- moved the jammed sheets and cleared the error message or triggered a Reset. AGFA d-lab.3 2003-06-01 /PN 9008...
Page 256: Paper Jam In The Transport Unit
− Open the levers (2) and hold against the unit as the bottom part of the TU should be low- ered slowly − Take the flap (3), pull it up and slowly lower the bottom part dlab2548 7.10 AGFA d-lab.3 2003-06-01 /PN 9008...
Page 257: Paper Transport At The Top
− Print engine pulled out − Locking opened and TU pulled out − Lift the top guide plate on the shafts marked red and fold it up − Remove the jammed paper from the top paper transport dlab2109 AGFA d-lab.3 7.11 2003-06-01 /PN 9008...
